主要特点
16 analog inputs, up to 800 kS/s, 12-bit resolution
2 analog outputs, up to 500 kS/s, 12-bit resolution
Support for digital trigger and analog trigger
24 programmable digital I/O lines
Two 32-bit programmable counter/timers
Onboard FIFO memory (4k samples)
2 x RS-232 ports
2 x 10/100/1000 Base-T RJ-45 LAN ports
2 x USB 2.0 and 2 x USB 3.0 ports
MIC-1810-S4A1E –– Intel Celeron® 1047UE Processer, 1.4GHz
MIC-1810-S6A1E –– Intel Core™ i3-3217UE Processor 1.6GHz |
|
产品介绍
The MIC-1810 is a standalone automation controller with integrated data acquisition module and signal conditioning to provide digital I/O, analog I/O and counter functions. This controller also supports serial communication ports and several other networking interfaces. You can seamlessly integrate your applications into the MIC-1810 series and speed up your system development with these application ready controllers.

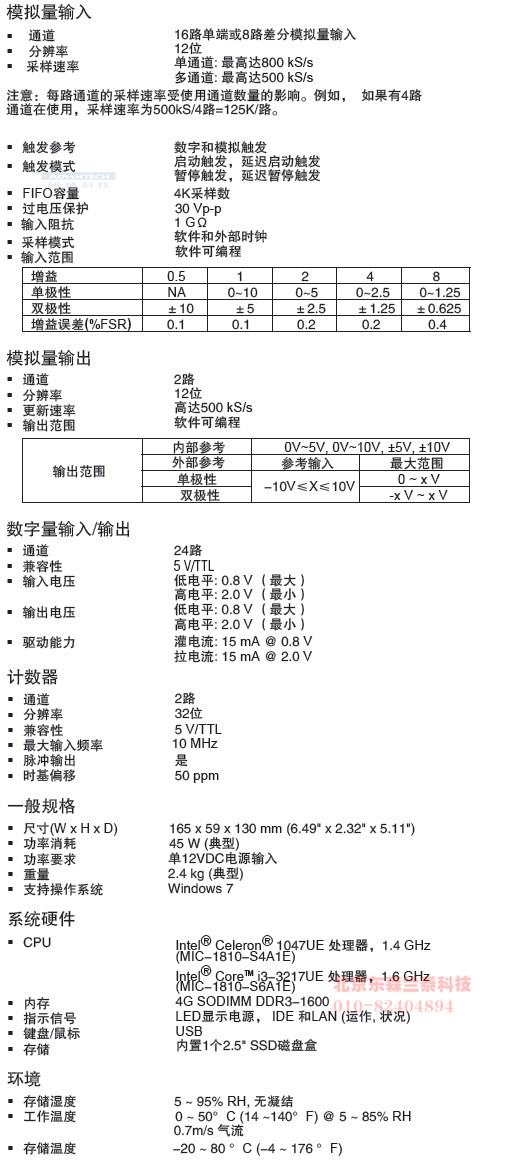

规格
订货信息
|
MIC-1810-S4A1E |
Intel ® Celeron ® 1047UE 嵌入式电脑+PCIE1810+Adam3968+Pcl10168 |
|
MIC-1810-S6A1E |
Intel ® Core™ i3-3217UE 嵌入式电脑+PCIE1810+Adam3968+Pcl10168 |
|
可选配件 |
|
|
1700001714 |
(BSMI) 3P电源线，7A, 125V, 18AWG, 180cm UL/CSA |
|
1702002600 |
(USA) 3P电源线，10A, 125V, 183cm,180 D |
|
1700023535-01 |
(CCC) 3P电源线，16A, 250V, 183cm |
|
1960077844N001 |
桌面安装支架（130 x 175 mm) |
|
2070014966 |
Image WES7P (64 bit) |
|
