主要特点 Dual Core Intel® Atom™ single core N455 processor Intel® I/O Controller Hub 8-Mobile (ICH8M) 2 GB DDR3 onboard 667 MT/s Optimized CompactFlash socket on single board computer (4HP) CFast or 2.5" SATA SSD on 8HP Two 10/100/1000Mbps ports, two USB ports, 1 VGA port on front panel 2 fiber ports, 2 RJ45 ports, or 4 RJ45 ports on 8HP second layer Conduction cooled PICMG2.0, R3.0, PICMG2.1, R2.0 compliant

Advantech’s MIC-3326 is a 3U CompactPCI single core processor blade based on the Intel® Atom™ N455 ICH8M two-chip platform. It provides the low power and cost-effective performance, and with easier validation. The MIC-3326 fully utilizes the I/O features of the Intel® chipsets, including an integrated memory controller (IMC), integrated graphics processing unit (GPU) and integrated I/O (IIO) such as DMI. The low power requirements of the Intel® Atom™ processor makes operation in elevated temperature ranges possible. Breakthrough memory design puts up to 2GB SDRAM on board, while keeping the speed at DDR3 800MT/s. The direct-soldered CPU and memory provide less weight and higher shock/vibration resistance than socket devices. With such benefits, the MIC-3326 can be used in mission-critical applications such as energy, transportation, traffic control, test and measurement (T&M) as well as critical data acquisition & control applications.

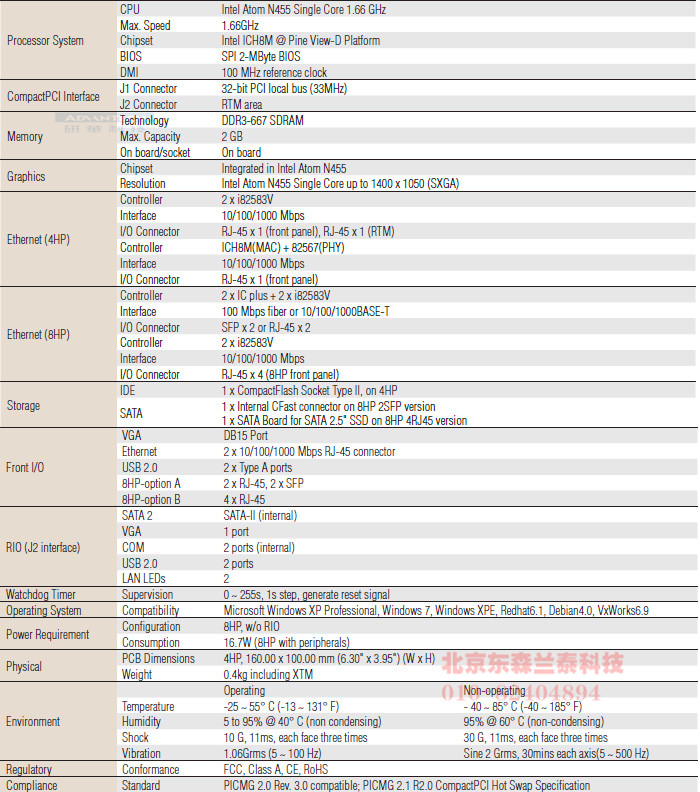

规格

订货信息
