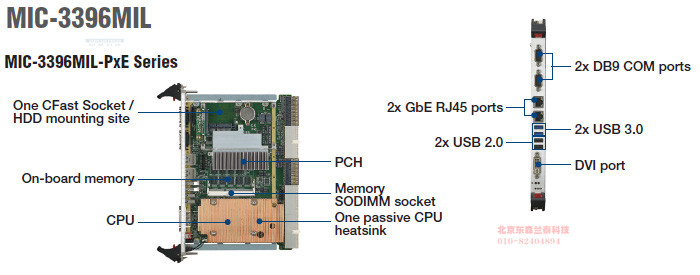

主要特点
Supports 4th /5th Generation Intel® Core™ i5/i7 processors and Intel® QM87 PCH with embedded graphic (up to 3independent displays)
Up to 16 GB (DDR3 1600) low voltage ECC memory (max 8GB on board, socket SO-UDIMM x1, max 8GB)
Optimized single-slot SBC with 2.5" SATA-III HDD/CFast socket/ on-board flash (optional)
Two SATAIII and two SATAII ports, two USB 3.0, four USB 2.0 ports, two DVI ports, four RS-232 ports, one PS/2 connector, and PCIe x16 interfaces to the Rear Transition Module (RTM)
Four gigabit Ethernet ports for PICMG 2.16, front and rear connectivity
PICMG 2.16 R1.0, PICMG 2.1 R2.0, PICMG 2.6 R1.0 compliant
|
|
产品介绍
MIC-3396MIL.html' target='_blank'>MIC-3396MIL专为严苛应用而设计，为了更好的满足不同环境的应用需求，共提供3种不同配置。Intel®第四代和第五代核心i5/i7及Xeon® 处理器采用四核八线程设计，支持2.7GHz频率和6MB终极缓存。传导冷却设计支持宽温工作 (-40 ~ 85 °C，楔锁测量温度)。防冲击和抗振动能力通过楔形锁和符合主IC封装的单片式CNC铣削铝合金散热板来实现。凭借高度集成的功能，MIC-3396MIL将Intel® 芯片组的I/O特性发挥的淋漓尽致。MIC-3396MIL支持高达16GB的1600 MHz DDR3L RAM、1个板载2.5"串行ATAHDD或SSD、1个CFast卡槽、1个板载NAND Flash (可选)、1个PCIex16，并通过连接背板和专有后走线模块实现一系列I/O功能；此模块的前面板提供8个GPIO、作为排针的2个USB 2.0和4个RS-232/422/485控制端口、2个SATA Gen III和2个SATA Gen II接口、2个/4个LAN端口 (2个LAN端口可从前面板切换至RTM)、2个DVI接口、2个USB 3.0、1个PCIex16、1个P/S2接口和1个RS-232/422/485端口。

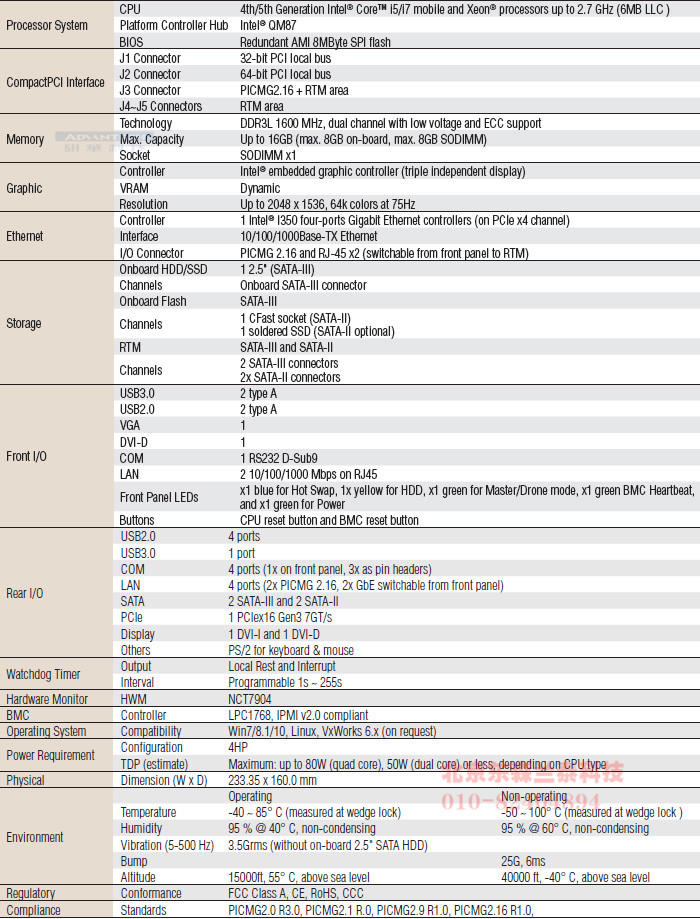

规格
订货信息
|
MIC-3396MILS-P8E |
I5-4402E |
|
MIC-3396MILS1-P8E |
I7-5850EQ |
|
MIC-3396MILB-P8E* |
I5-4402E |
|
Note: For CPU, on-board memory and other feature availability request, please connect your local sales office. |
|
* Bare board w. CPU and on-board memory w/o conduction cool |
|
Related Products |
|
|
Model number |
Configuration |
|
RIO-3396MIL-A1E |
RTM Module with 4 LAN ports, USB3.0/2.0, DVI, PS2 and COM ports for MIC-3396MIL |
|
MIC-3396MIL-1960E |
Conduction Cool cold blade metal parts for MIC-3396MILB-P8E |
|
MIC-3396MIL-1961E |
Conduction Cool cold blade metal parts w/ SSD & CFast slot support |
尺寸(单位:mm)
|
