主要特点 Intel® 82599 Dual Port 10 Gigabit Ethernet Controller PCIe x8 Gen.2 host interface Dual SFP+ connectors Compliant with VITA 42.0-2005, 42.3-2006 XMC specifications

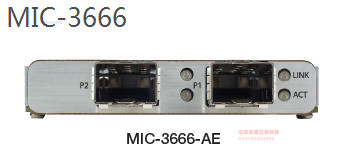

The MIC-3666 is a low power, dual-port 10 GbE XMC, with SFP pluggable modules for multi-mode and single-mode fiber media and is based on the Intel® 82599ES 10 Gigabit Ethernet controller. The XMC provides a high performance PCIe x8 interface at 5 Gb/s per lane at an outstanding low power dissipation of less than 10W. Support for Intel®'s offloading and platform enhancement features yields maximum network throughput while preserving valuable CPU cycles for application processing.

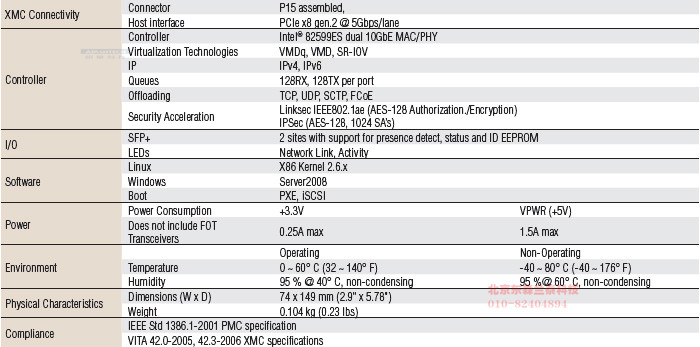

规格

订货信息

尺寸(单位:mm)
