主要特点 Two Intel® Xeon® E5-2600/E5-2600V2 Processors Intel® C600 Series PCH server class chipset with integrated SAS controller Eight DDR3 VLP DIMMs up to 256 GB with ECC support Up to four XAUI ports on Fabric interface Two 1000BASE-T ports on Base interface Three 1000BASE-T front panel ports One Fabric Mezzanine Module support with front I/O support (type II) Two CFast / one 2.5" SSD storage Device Fully managed, hot swappable RTM

Advantech’s MIC-5332 is a dual processor ATCA blade based on the Intel® next generation platform. It enables the highest performance available in ATCA form factor with up to 20 cores and 40 threads of processing power, fast PCI Express gen. 3 lanes running at up to 8Gbps, and best in class virtualization support. Two QPI interfaces between the CPUs improve memory and I/O access throughput and latencies when one processor needs to access resources hosted by the other socket. With four DDR3 DIMMs per socket in a quad channel design running up to 1866MT/s, the MIC-5332 not only offers superior memory bandwidth over 3-channel designs, but can also support memory densities up 256GB using latest LR DIMM technology. It outperforms previous generation dual socket designs while keeping similar thermal characteristics with balanced airflow resistance.

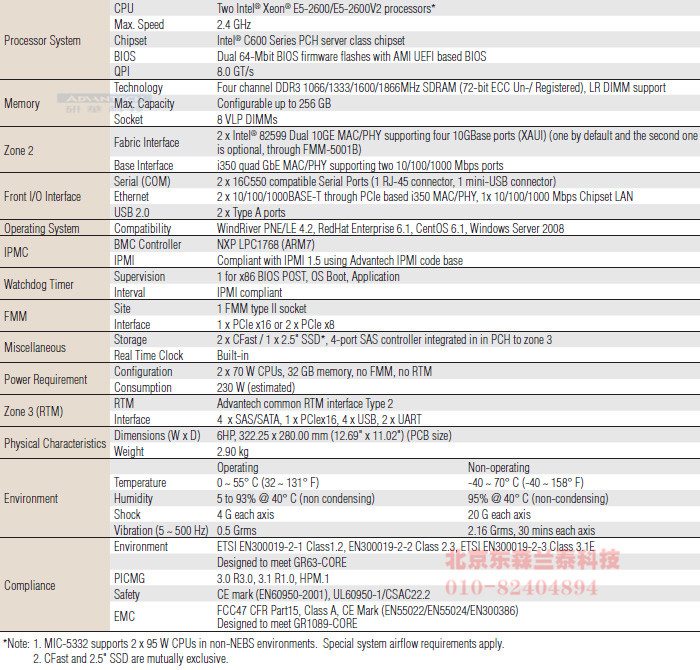

规格

订货信息

尺寸(单位:mm)
