MIC 产品

MIC-5401



主要特点

Single-width mid-size AMC form factor
SAS or SATA 2.5" hard disk drive compatible
Hot-swap capable
AdvancedTCA and MicroTCA compatible
Dual port SAS drive support
3.0 Gb/s interface speed support
Two thermal sensors to monitor on-board temperatures
System management compliant to PICMG3.0 R2.0, AMC.0 R2.0, AMC.3 R1.0, and IPMI1.5
Power-on hour counter
HPM.1 compliant firmware upgrade and rollback support through IPMB



产品介绍

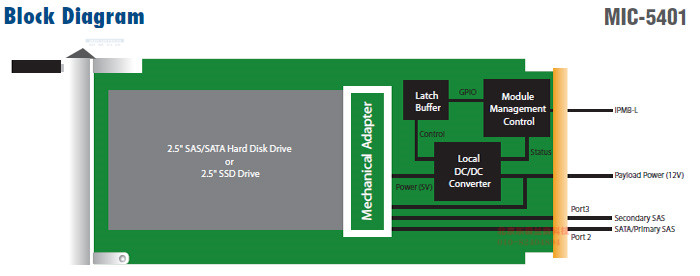

The Advantech MIC-5401 is a single-width/mid-size Advanced Mezzanine Card (AMC) designed to support a 2.5" SAS or SATA hard disk drive to work as an enterprise storage module on an ATCA platform or in a MicroTCA shelf. The 2.5" hard disk drive is connected to the AMC port 2 (SAS and SATA) and port 3 (SAS only) according to the AMC.3 specifications. Dual port SAS drives may be used on the MIC-5401 to increase the interface bandwidth of failover support between dual hosts in fault tolerant environments. Like all other standard AMC modules, an IPMI-based module management controller (MMC) is also implemented on the MIC-5401 to serve as a communication interface to the Carrier Management Controller on an ATCA platform, or to the MicroTCA Carrier Management Controller on the MicroTCA Carrier Hub in a MicroTCA shelf. As a local IPMI controller on the AMC, it manages all hot-swap activities, E-keying, and hardware heath monitoring such as voltages (12V, 5V, and management power 3.3V) and on-board temperatures (including hard disk drive’s ambient temperature). The MIC-5401’s mechanical design is optimized for a maximum of shock and vibration durability combined with a user- and service friendly mounting process for the disk drive.

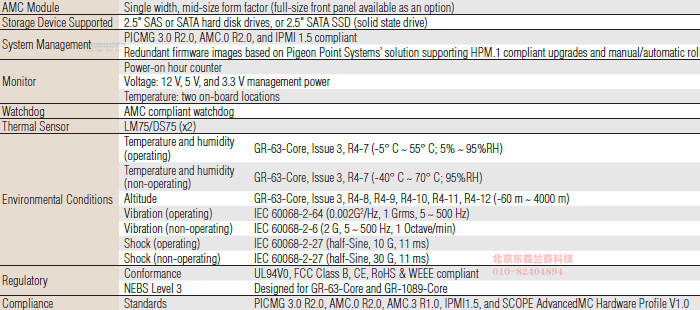

规格


订货信息

MIC-5401-0000E  Mid-size
Note:
1. AMC modules with pre-installed hard disk or solid state disk drives are available on request. Please contact Advantech sales representative for further detail.
2. Full size front panel is available on request.

尺寸(单位:mm)
