产品介绍
基于NXP ARM Cortex-A9 i.MX6的 SMARC v1.1 标准arm核心模块,研华ROM-5420 核心板是基于NXP ARM Cortex-A9 i.MX6的 SMARC v1.1 标准核心模块。强大的i.MX6支持2D/3D图形加速器，以及1080P全高清硬编/解码，和支持多达4个独立的显示输出。

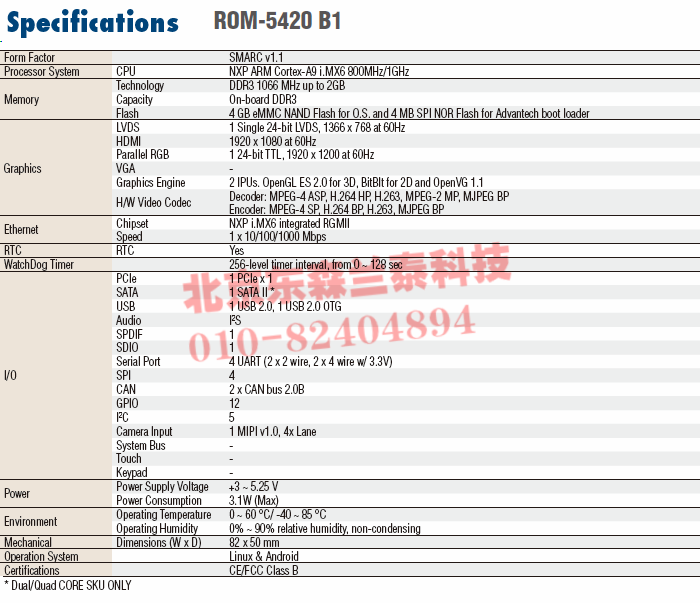

规格
订货信息
| Part No. | CPU | Memory | Display | Power input |
| ROM-5420CD-MDB1E | i.mx6 Dual 1GHz | 1GB |
1x 24bit LVDS 1x 24bit TTL 1x HDMI |
3 ~ 5.25V |
| ROM-5420CD-MEB1E | i.mx6 Dual 1GHz | 2GB |
1x 24bit LVDS 1x 24bit TTL 1x HDMI |
3 ~ 5.25V |
| ROM-5420CQ-MEB1E | i.mx6 Quad 1GHz | 2GB |
1x 24bit LVDS 1x 24bit TTL 1x HDMI |
3 ~ 5.25V |
| ROM-5420WQ-MEB1E | i.mx6 Quad 800MHz | 2GB |
1x 24bit LVDS 1x 24bit TTL 1x HDMI |
3 ~ 5.25V |
| Development Board | |
| Part No. | Description |
| ROM-DB5900-SWA2E | Development Board for SMARC v1.1 |
| ROM-DK5420-F0A1E | Evaluation kit for ROM-5420 Module |
| Optional Accessories | |
| Part No. | Description |
| 1700022373-01 | Debug port cable for ROM-3420/5420 |
| ROM-ED20-00A1E | Debug adapter board |
| 1960075867N001 | Heat spreader |
| 1930005215 | Screws for heat spreader |
| 1960063089N001 | Semi heat sink |
| 1930004835 | Screws for heat spreader and semi heat sink |
| 96PSA-A36W12R1-3 | ADAPTER 100-240V 36W 12V 3A |
| 1700001524 | Power cord 3P UL 10A 125V 180cm |
| 170203183c | Power cord 3P Europe (WS-010+WS-083)183cm |
| 1700008921 | Power cord 3P PSE 183cm |
| 170203180A | Power cord 3P UK 2.5A/3A 250V 1.83M |
| 1700019146 | Power Cord CCC 3P 10A 250V 183cm |
| SQF-ISDM1-16G-21C | SQ Flash SD card UHS-I MLC 16GB (0 ~ 70 °C) |
| SQF-ISDM1-16G-21E | SQ Flash SD card UHS-I MLC 16GB (-40 ~ 85 °C) |
| EWM-W188M201E | WiFi 802.11ac/abgn 2T2R and BT4.2 |
| 1750008671-01 | Dipole Ant.SMA/M-R 2.4/5G 2.5/4dBi BLK 109mm |
| 1750007965-01 | Antenna cable, SMA (M) to MHF4, 300mm |
| EWM-C117FL06E* | LTE 4G,3G WCDMA/DC-HSPA+, 2G module, MPCI-L280H |
| 1750008303-01 | Antenna AN0727-64SP6BSM |
| 1750006009 | Antenna Cable SMA (F) to MHF 1.32 25cm |
| * Please contact us to get suitable cellular module for your region. | |

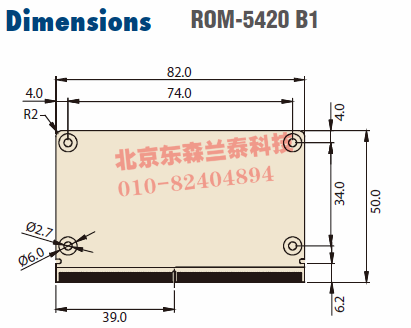

尺寸(单位:mm)
I/O Appearance
