主要特点
NXP ARM Cortex™-A9 i.MX6 Dual 1 GHz high performance processor
Onboard DDR3 1 GB
ƒOnboard eMMC NAND Flash 4 GB
Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators, full HD 1080p video codec
VGA, HDMI, 24bit LVDS
2 CAN, 4 UART, 2 I2C, 8 GPIO
2 USB, 1 SD/MMC
1 10/100/1000 MPbs Ethernet; 1 PCIe x 1, Gen 2
Optional thermal solution
|
|
产品介绍
ROM-7420是基于NXP ARM Cortex-A9 i.MX6 Q7的标准核心模块。 NXP i.MX6 支持2D/3D图形加速，1080P全高清视频硬编/解码。ROM-7420搭配ROM-DB7500全功能底板使用。支持Linux（LTIB/Yocto）和Android。

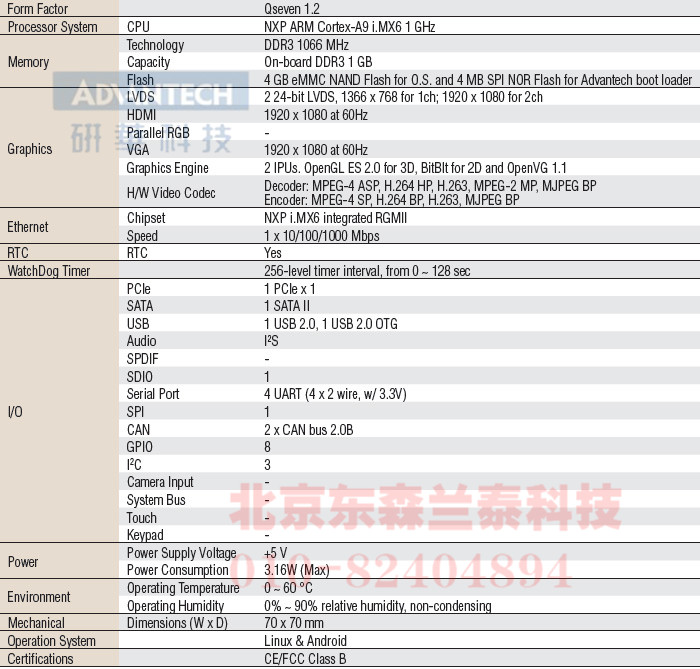

规格
订货信息
|
Part No. |
CPU |
Memory |
|
ROM-7420CQ-MEA1E |
i.MX6 Quad 1 GHz |
2GB |
|
ROM-7420WQ-MEA1E |
i.MX6 Quad 1 GHz |
2GB |
|
ROM-7420CD-MDA1E |
i.MX6 Dual 1 GHz |
1 GB |
|
ROM-7420WD-MDA1E |
i.MX6 Dual 1 GHz |
1 GB |
|
ROM-7420CS-MCA1E |
i.MX6 Solo 1 GHz |
512 MB |
|
Development Board |
|
|
|
Part No. |
Description |
|
|
ROM-DB7500-SCA1E |
Development Board for Qseven v1.2 RISC Module |
|
Optional Accessories |
|
|
Part No. |
Description |
|
|
1700020442-01 |
Debug Port Cable for ROM-7420 |
|
9696ED2000E |
Debug Port Adapter for ROM-7420 |
|
96PSA-A36W12R1 |
ADAPTER 100-240V 36W 12V 3A |
|
1700001524 |
Power Cord 3P UL 10A 125V 180cm |
|
170203183C |
Power Code 3P Europe (WS-010+WS-083)183cm |
|
170203180A |
Power Cord 3P UK 2.5A/3A 250V 1.83M |
|
1700008921 |
Power Cord 3P PSE 183cm |
|
SQF-ISDS1-2G-86E |
SQFlash SD card SLC 2G, 1CH (-40 ~ 85 °C) |
|
EWM-W142F01E |
802.11 b/g/n,AR9287,2T2R,Full size Mini PCIe |
|
1750007050-01 |
WiFi RP-SMA short SMA Jack(9.5mm) to U.FL_100mm(WiFi Cable) |
|
1750000318 |
EMI Antenna 2DBI 2.4GHz SMA CONN for ARK-3384(WiFi Antenna) |
|
EWM-C106FT01E |
Cellular, HSUPA/WCDMA/GPRS,Full Mini PCIe |
|
1750007156-01 |
Cellular/GPS SMA Short JACK(9.5MM) L=100mm(3G Cable) |
|
1750005865 |
Antenna L=10.9cm 50Ohm AN8921F-5701SM(3G Antenna) |
|
1960061913N001 |
Heat spreader O-NXP-S-5W 70x63x8-SC ROM-7420 |

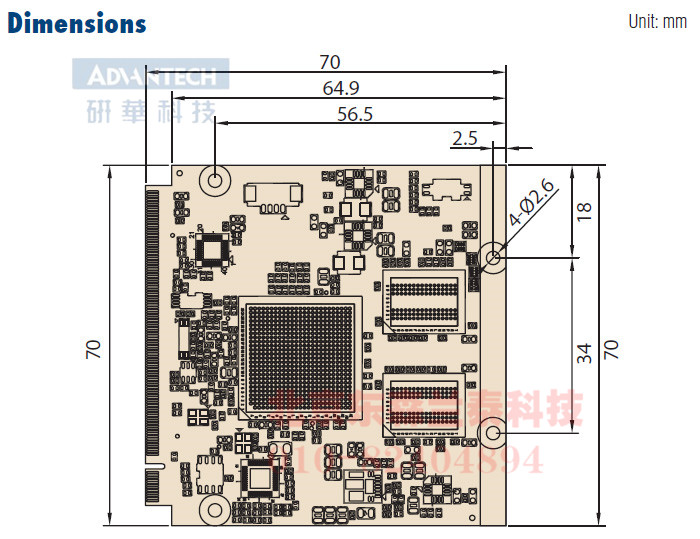

尺寸(单位:mm)
I/O Appearance
|
