主要特点
NXP i.MX6 Dual Plus/Quad Plus High performance processor
Onboad DDR3 1GB/2GB
Onboard e.MMC NAND Flash 4GB
Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators, full HD 1080p video codec
HDMI,2 24bit LVDS
1 CAN, 2 4-wire UART, 2 I2C, 8 GPIO
4 USB, 1 SD/MMC, onboard micro-SD, 1 MIPI CSI
1 10/100/1000 MPbs Ethernet; 1 PCIe x 1, Gen 2
Optional Thermal Solution
|
|
产品介绍
ROM-7421是基于NXP 1GHz Cortex-A9 i.MX6双核/四核 Plus 的Q7 2.0核心模块，拥有强大的多媒体性能，和优异的节能技术。ROM-7421是你创新的计算平台的最佳选择。ROM-7421 Qseven Module integrates ARM Cortex-A9 Freescale i.MX6 series ultra low power SoC and I/O solution chips to be Linux support ready. Freescale i.MX6 supports 2D,3D graphics acceleration, full HD 1080P video decoding and an HD 1080p video encoding hardware engine.
ROM-7421 has Advantech ROM-DB7501 Evaluation Carrier Board for easy integration and design reference; we also offer referenced schematics and layout checklists for carrier board development. Additionally, Linux BSP, test utilities, HW design utilities and reference codes are ready for application development and device integration.

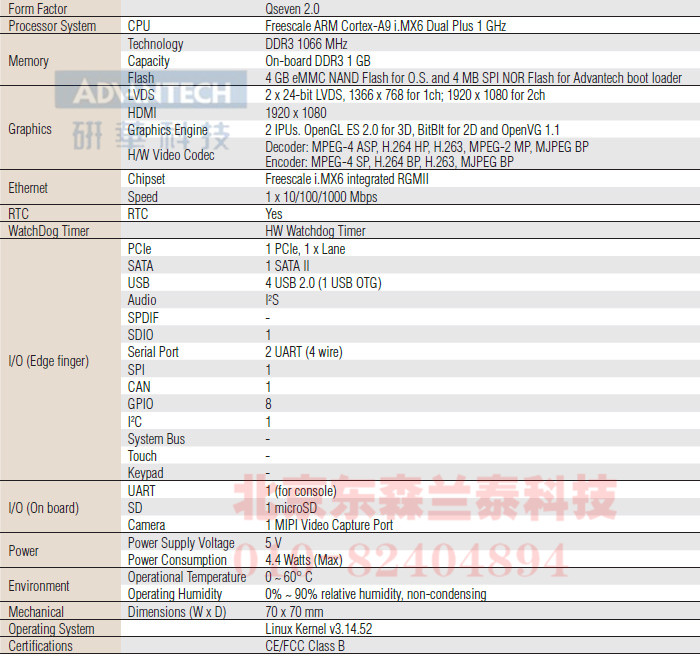

规格
订货信息
|
Part No. |
CPU |
Memory |
|
ROM-7421CE-MDA1E |
i.MX6 Dual 1 GHz |
1 GB |
|
ROM-7421CU-MEA1E |
i.MX6 Quad 1 GHz |
2 GB |
|
Development Board |
|
|
|
Part No. |
Description |
|
|
ROM-DB7501-SCA1E |
Development board for RISC Qseven 2.0 module |
|
Optional Accessories |
|
|
Part No. |
Description |
|
|
1700022373-01 |
Debug Port Cable for ROM-7421 |
|
9696ED2000E |
Debug Port Adapter for ROM-7421 |
|
96PSA-A36W12R1 |
ADAPTER 100-240V 36W 12V 3A |
|
1700001524 |
Power Cord 3P UL 10A 125V 180cm |
|
170203183C |
Power Code 3P Europe (WS-010+WS-083)183cm |
|
170203180A |
Power Cord 3P UK 2.5A/3A 250V 1.83M |
|
1700008921 |
Power Cord 3P PSE 183cm |
|
SQF-ISDS1-2G-86E |
SQFlash SD card SLC 2G, 1CH (-40 ~ 85° C) |
|
EWM-W142F01E |
802.11 b/g/n,AR9287,2T2R,Full size Mini PCIe |
|
1750007050-01 |
WiFi RP-SMA short SMA Jack(9.5mm) to U.FL_100mm(WiFi Cable) |
|
1750000318 EMI |
Antenna 2DBI 2.4GHz SMA CONN for ARK-3384(WiFi Antenna) |
|
968EMW0093 |
Telit HE910-D Mini PCIE |
|
1750007156-01 |
Cellular/GPS SMA Short JACK(9.5MM) L=100mm(3G Cable) |
|
1750005865 |
Antenna L=10.9cm 50Ohm AN8921F-5701SM(3G Antenna) |
|
1960061913N001 |
Heatsink O-Freescale-S-5W 70x63x8-SC ROM-7420-60 |

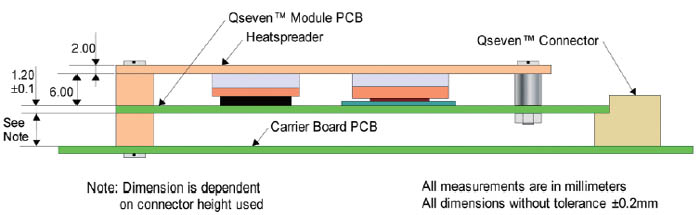

尺寸(单位:mm)
I/O Appearance
|
