主要特点
TI Sitara AM5728 Dual core cortex-A15 1.5GHz high performance processor
Onboard DDR3 memory 2 GB and eMMC Flash 8 GB
Support 1 LVDS, 1 HDMI, 1 USB2.0 OTG, 4 USB2.0 HOST, 1 USB3.0, 2 UART, 1 CAN, 1 SATA, 2 I2C, 1 I2S, 2 PCIE 1 lane,
Operating temperature 0 ~ 60 °C / -40 ~ 85 °C
Supports Linux BSP
|
|
产品介绍
TI Sitara. AM5728 Cortex -A15 1.5GHz Qseven Module

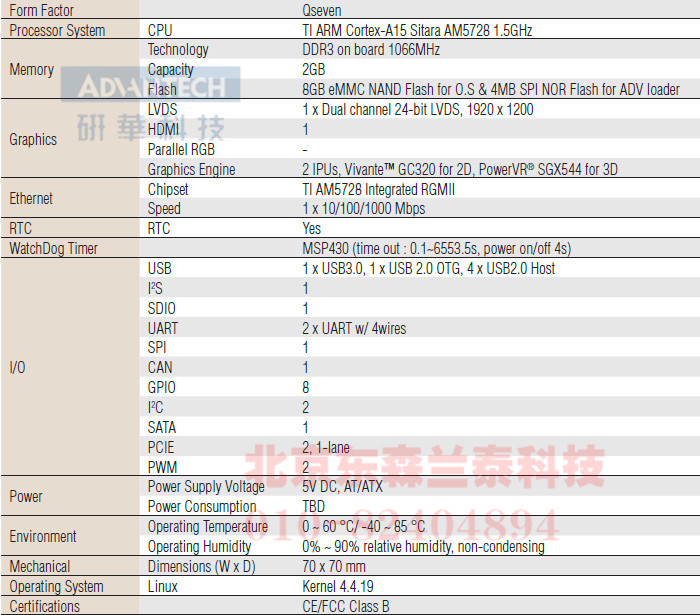

规格
订货信息
|
Part No. |
CPU |
Memory |
|
ROM-7510CD-PEA1E |
TI Sitara AM5728 |
2 GB |
|
ROM-7510WD-PEA1E |
TI Sitara AM5728 |
2 GB |
|
Development Board |
|
|
|
Part No. |
Description |
|
|
ROM-DB7502-SCA1E |
Development Board for Qseven 2.0/2.1 Module |
|
Optional Accessories |
|
|
Part No. |
Description |
|
|
9696ED2000E |
Debug adapter board |
|
1700022373-01 |
Debug port cable for ROM-3420/5420/3310 |
|
96PSA-A36W12R1 |
ADAPTER 100-240V 36W 12V 3A |
|
1700001524 |
Power Cord 3P UL 10A 125V 180cm |
|
170203183C |
Power Code 3P Europe (WS-010+WS-083)183cm |
|
170203180A |
Power Cord 3P UK 2.5A/3A 250V 1.83M |
|
1700008921 |
Power Cord 3P PSE 183cm |
|
SQF-ISDS1-2G-86E |
SQFlash SD card SLC 2G, 1CH (-40 ~ 85° C) |

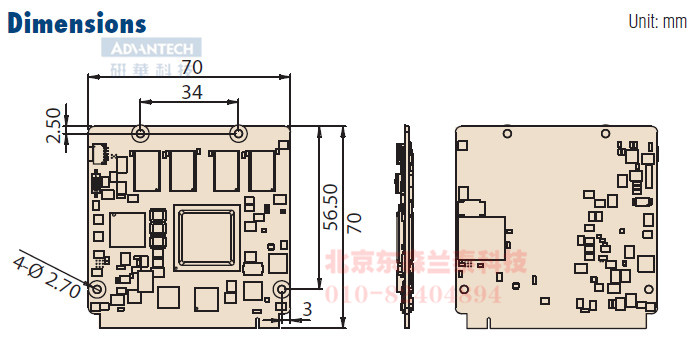

尺寸(单位:mm)
I/O Appearance
|
