ARK 系列

ARK-1124U



主要特点

Intel Atom N3350/E3940 Dual Core/Quad Core SoC support
VGA Display/2x RS-232/422/485/4x USB 3.0
1x Full-size miniPCIe with SIM holder
1x M.2 E-key for WIFI module
-20 ~ 60 °C extended operating temperature
Optional TPM on board for security
12V lockable DC jack power input
Advantech iDoor module compatible (Dual Layer)
Advantech WISE-PaaS/RMM support

产品介绍

Intel Atom™ N3350/E3940 DC/QC SoC With Dual LAN/ 4x USB 3.0/M.2 IoT Gateway Modular Fanless Box PC。 超紧凑、小尺寸、低功耗设计,提供充足内存和扩展性能且安装方便。为有限空间应用提供理想的性能。

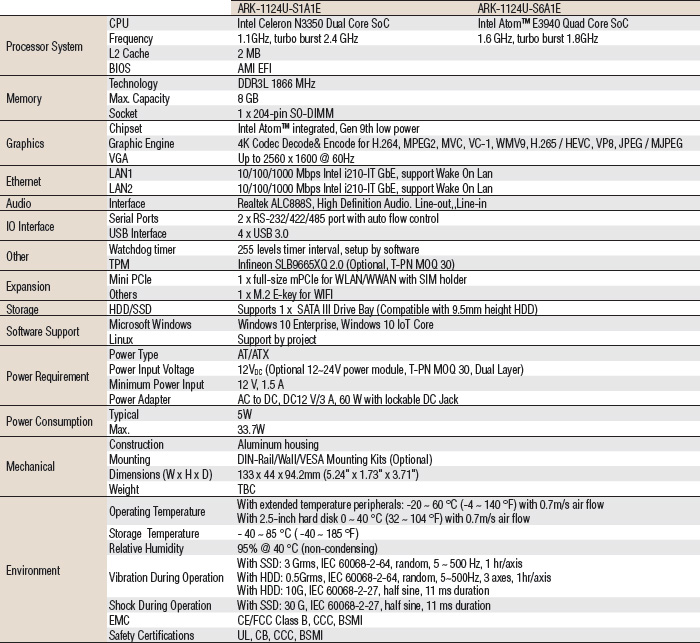

规格


订货信息

Part No.  CPU Power Input
ARK-1124U-S1A1E Intel Celeron N3350 1.1 GHz Soc 12 VDC
ARK-1124U-S6A1E Intel Atom E3940 1.6 GHz Soc 12 VDC
Note: Memory, storage and operating system bundled by request.
Packing List
Part Number  Description
1 x ARK-1124U Unit
1 x User Manual (Simplified Chinese)
96PSA-A60W12W6  1 x A/D 100-240V 60W 12V C14 LOCKABLE DC PLUG
Optional Embedded OS
Part Number  Description
TBC  Win10 IoT Enterprise Entry 64bit
Optional Item for Default SKU
Part Number  Description
1702002600  Power cable 3-pin 183cm, USA type
1702002605  Power cable 3-pin 183cm, EU type
1702031801  Power cable 3-pin 183cm, UK type
AMK-W001E  ARK-112X series Wall mounting kit
AMK-V003E  ARK-112X series VESA mounting kit
AMK-R001E  ARK-112X series DIN-rail mounting kit
ARK Plus Extended Modules
AMO-1101E iDoor module kit

Specifications
General
Features  For iDoor and power module expansion
Contents  Mechanical kit for iDoor module
Dimension  133 x 37 x 94.2 mm
Operating temperature  -20~ 60°C
Ordering Information
P/N  Description
AMO-1101E  2nd Layer iDoor module kit
* Please select iDoor optional module
* AMO-1101E support iDoor module x1 ( by CTOS) and 12~24V power module x1 (by T-PN, MOQ 30)
ARK-1124 Dual Layer Expansion Option Items
Optional iDoor Expansion
Part Number  Description
MOS-2230-Z1201E  CANBus module, 2-Ch, USB Interface
MOS-2220-X1101E  Parallel LPT module, 1-Ch, USB Interface
MOS-2110Z-1201E  USB module, 2-Ch, PCIe Interface
MOS-2120-Z1101E  Giga LAN Ethernet module, 1-Ch, PCIe Interface
MOS-1120Y-0201E  Isolated RS-232, 2-Ch, DB9, PCIe Interface
MOS-1121Y-0201E  Isolated RS-422/485, 2-Ch, DB9, PCIe Interface
MOS-1120Y-1401E  Non-Isolated RS-232, DB37, 4-Ch, PCIe Interface
MOS-1121Y-1401E  Non-Isolated RS-422/485, DB37, 4-Ch, PCIe Interface
MOS-1130Y-0201E  Isolated CANBus, 2-Ch, DB9, PCIe Interface
MOS-1110Y-0101E  Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface
MOS-2220-Z1101E  High Speed COM module, 1-Ch, USB Interface

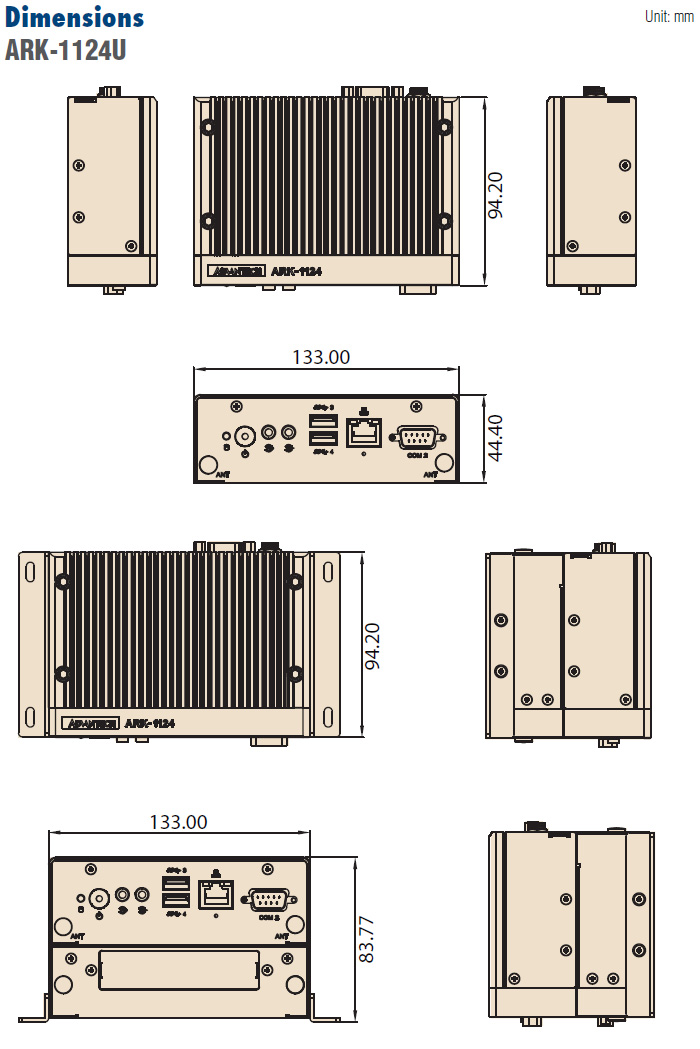

尺寸(单位:mm)

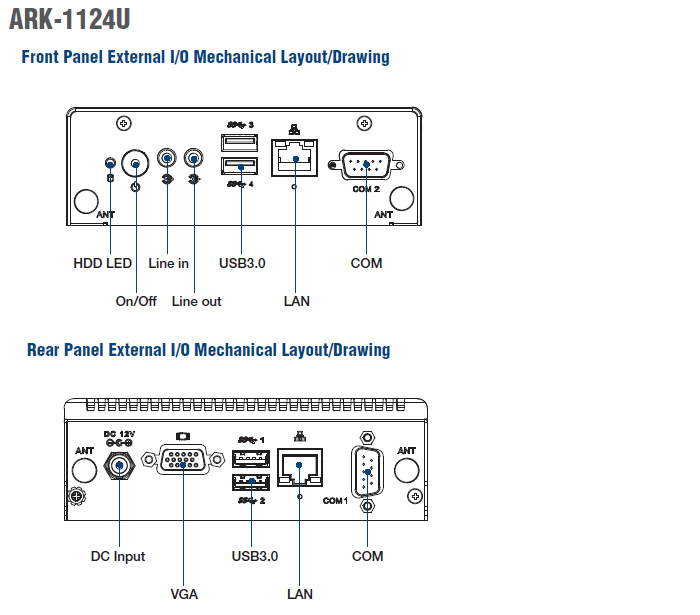

I/O Appearance
