主要特点
Supports Intel® 3rd Generation processor with HM76
Fanless computer for railway vehicle applications, fully compliant with EN 50155
Satisfy temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
Compliant with EN 50121-3-2 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Optional PCI/ /miniPCIe slots for expansion
Support Easy-swap HDD/SSD/CF module
|
|
产品介绍
Intel® 3rd Generation Core™ i Processor Fanless System for railway applications

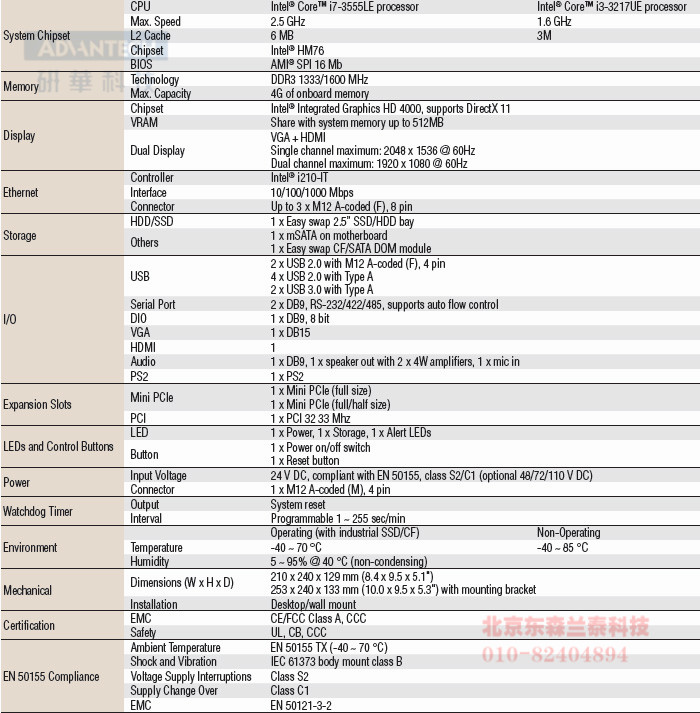

规格
订货信息
|
ITA-5730-00A1E |
i7-3555LE 4G DDR3 |
|
ITA-5730-10A1E |
i3-3217UE 4G DDR3 |
|
Optional Accessories |
|
|
M12 Connector (Must purchase separately) |
|
Part Number |
Description |
|
Y5A5730000 |
M12 A-coded, 4-pin, female, for power input |
|
Y5A5730001 |
M12 A-coded, 8-pin, male, for LAN |
|
Y5A5730002 |
M12 A-coded, 4-pin, male, for USB |
|
M12 Cable (Must purchase separately) |
|
Part Number Description |
|
1700022203-01 |
Power cable, A-coded, 4-pin female to 2-pin European terminal, 10 cm |
|
1700023142-01 |
USB cable, A-coded, 8-pin, male to standard port (Type A), 10 cm |
|
1700022205-01 |
LAN cable, A-coded, 4-pin male to RJ45, 10 cm |

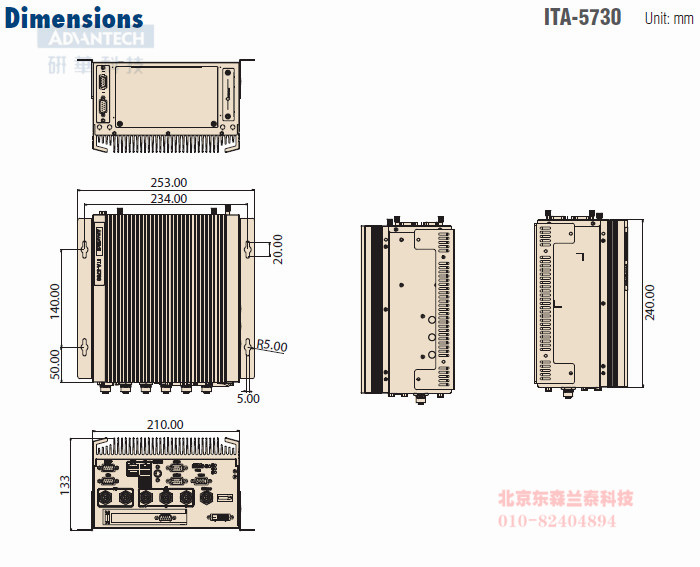

尺寸(单位:mm)

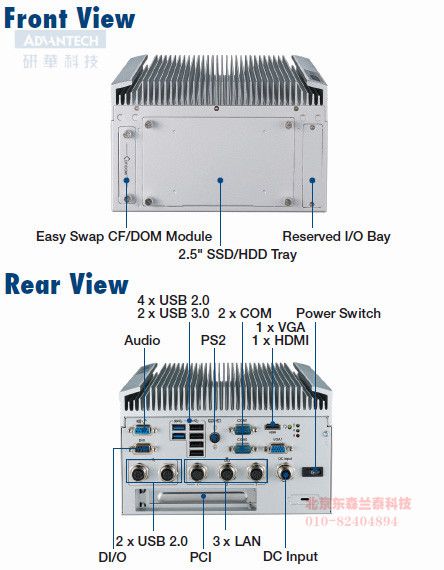

I/O Appearance
|
