产品介绍
TI Coretex A8 Micro DIN-Rail Gateway w/ 2 x LAN, 1 x USB, 1 x CANopen, 3 x COM, 2 x microSD, 1 x micro SIM
The UNO-1251G is an Industrial IoT DIN-rail gateway. This gateway features dual LAN ports & expansible Wi-Fi/3G connectivity. There are also some user friendly design elements such as: a programmable OLED display to indicate the system status; and a front accessible microSD card/micro SIM slot. With WebAccess/HMI support, it is compatible with 450 types of PLC, controllers & I/O devices. User can easily access UNO-1251G through mobile devices by VNC. It is the ideal solution for automation control as a cloud enabled HMI platform.

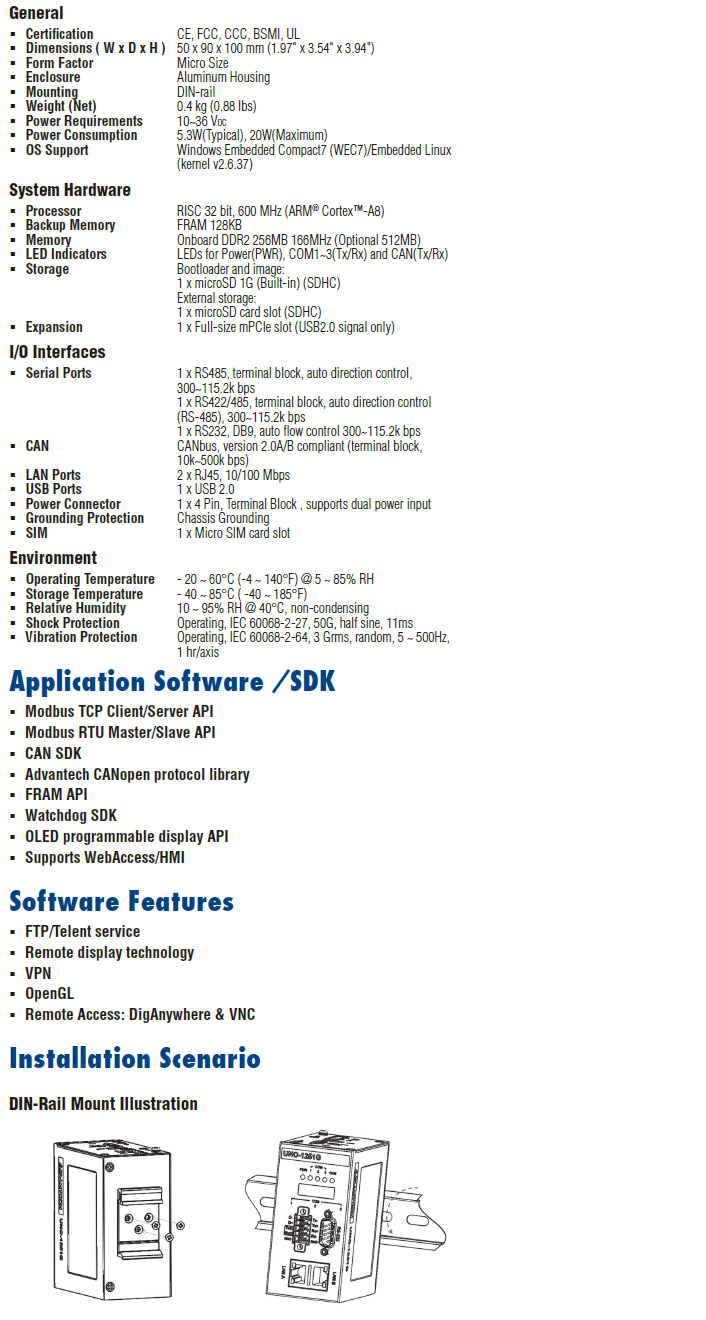

规格
订货信息
| P/N | Description |
| UNO-1251G-A0AE | ARM Coretex A8, built-in 256MB Memory, 1G SLC MicroSD, WEC7 |
| UNO-1251G-WA0AE | UNO-1251G-A0AE with WebAccess/HMI 1500 tags |
| Optional Accessories | |
| Adapters & Power cords: | |
| PWR-247-CE | ADP A/D 100-240V 60W |
| 1702002600 | Power Cable US Plug 1.8 M |
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801 | Power Cable UK Plug 1.8 M |
| 1700000596 | Power Cable China/Australia Plug 1.8 M |
| Micro SD card: | |
| 96FMMSDI-2G-ET-AT | ATP 2G MICRO SD CARD I-GRD SLC(G) |
| 3G module & antenna: | |
| EWM-C109F601E | Wide-Temp 3.75G HSPA, Mini PCIe Card |
| 1750006264 | Coaxial cable for antenna |
| 1750005865 | Antenna L=10.9 cm 50 Ohm |
| Wi-Fi module & antenna: | |
| EWM-W150H02E | 802.11bgn / RT5390 1T1R |
| 9656EWMG00E | Half-size miniPCIe to Full-size miniPCIe bracket set |
| 1750006043 | 150 mm Coaxial cable for antenna |
| 1750000318 | Antenna |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

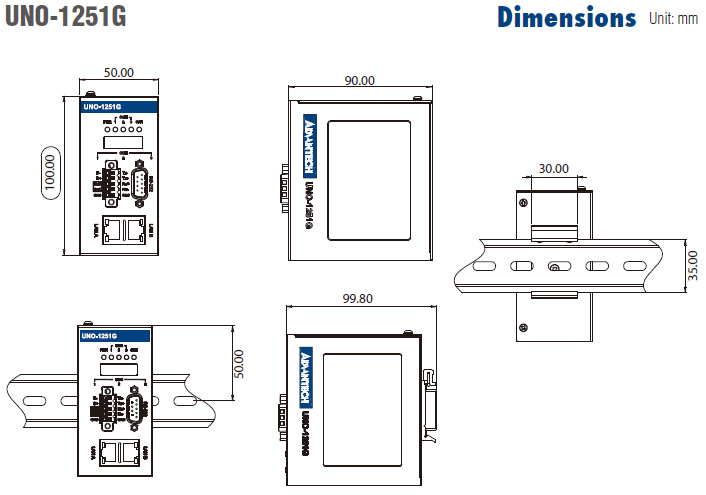

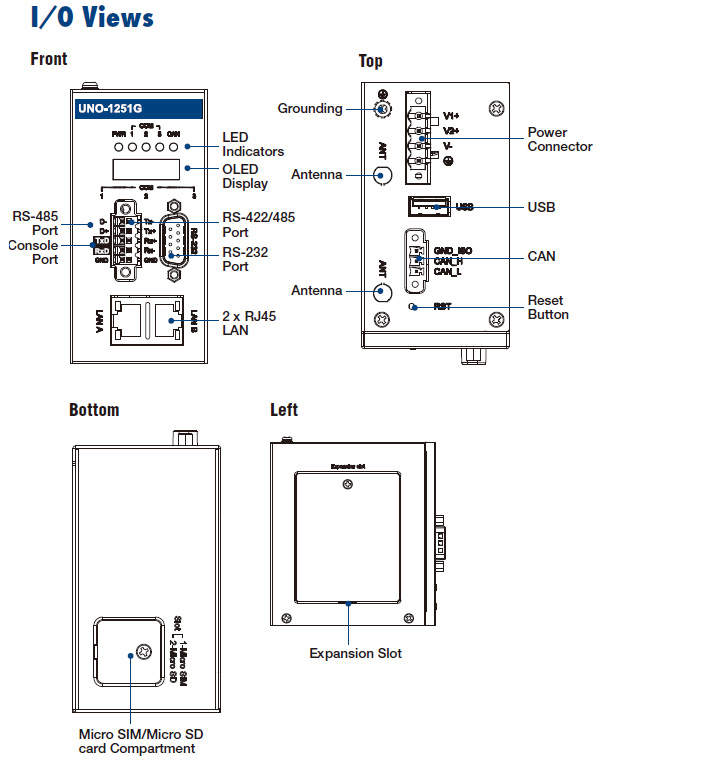

产品图片及框图
