UNO 系列

UNO-2473G



主要特点

4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.42 GHz with 4GB DDR3L Memory

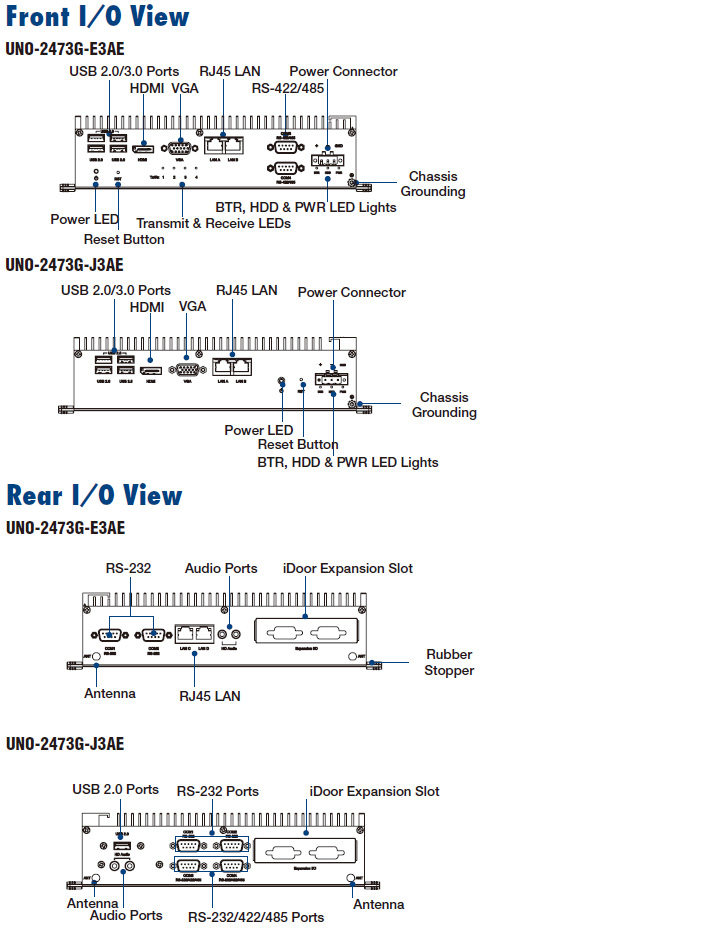

4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Diverse system IO and Isolated Digital IO by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

产品介绍

Intel® Atom/ Celeron Processor Regular-Size Automation Computer w/ 4 x GbE, 3 x mPCIe, HDMI/VGA

Advantech’s UNO-2000 series of Embedded Automation Computers are fanless with highly ruggedized with an embedded operating system (Linux-Embedded). It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

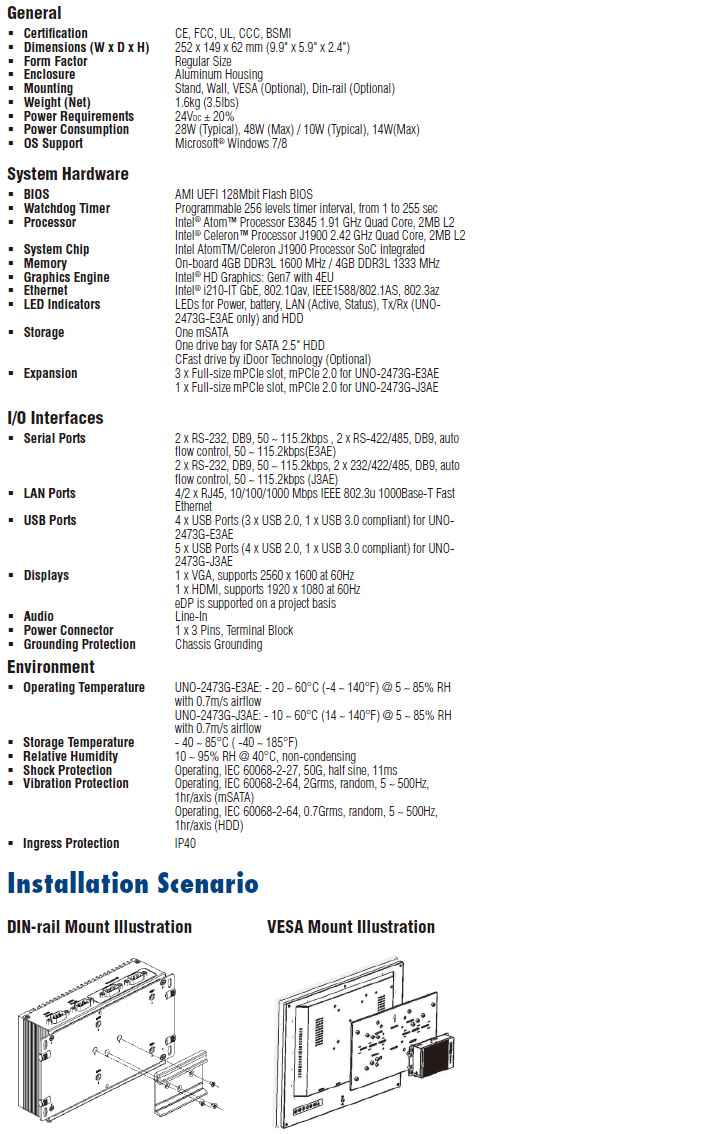

规格


订货信息

P/N  Description
UNO-2473G-E3AE Intel® Atom™ E3845 1.91GHz, 4GB, 4 x LANs, 3 x mPCIe
UNO-2473G-J3AE Intel® Celeron J1900 2.42GHz, 4GB, 2 x LANs, 1 x mPCIe
Accessories
96PSA-A150W24T2 150WC to DC UNO series power adapter (Industrial Grade)
1702002600 Power Cable US Plug 1.8 M (Industrial Grade)
1702002605 Power Cable EU Plug 1.8 M (Industrial Grade)
1702031801 Power Cable UK Plug 1.8 M (Industrial Grade)
1700000596 Power Cable China/Australia Plug 1.8 M (Industrial Grade)
1700001524 Power Cable 3-pin US type 1.8 M (Commercial Grade)
170203183C Power Cable 3-pin EU type 1.8 M (Commercial Grade)
170203180A Power Cable 3-pin UK type 1.8 M (Commercial Grade)
UNO-2000G-DMKAE UNO-2000 DIN Rail Kit
UNO-2000G-VMKAE UNO-2000 VESA Mount Kit
iDoor Modules
PCM-24S2WF-AE WiFi802.11 a/b/g/n 2T2R w/ Bluetooth4.0, Half-size mPCIe, 2-port SMA
PCM-24S23G-AE 6-band HSPA Cellular Module, GPS, SIM holder, SMAx2
PCM-24R2GL-AE 2-Port Gigabit Ethernet, mPCIe, RJ45
PCM-24D4R4-AE 4-Port Non-Isolated RS-422/485 mPCIe, DB37
PCM-24R1TP-AE 1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45
PCM-2300MR-AE MR4A16B, MRAM, 2 MByte, mPCIe
PCM-24D4R2-AE 4-Port Non-Isolated RS-232 mPCIe, DB37
PCM-26D2CA-AE 2-Port Isolated CANBus mPCIe, CANOpen, DB9
PCM-27D24DI-AE 24-Channel Isolated Digital I/O w/ counter mPCIe, DB37
Embedded O/S
2070013268 Image WES7P X64 MUI. V4.12 B001 for UNO-2473G-Ex
S/W Bundle Offering
WA-HU2473G-J15H2AE UNO-2473G-J3AE, HMI Runtime 1500 tags, 32G mSATA, WES7P
WA-SU2473G-J15H5AE UNO-2473G-J3AE, SCADA Runtime 1500 tags, 128G SSD, WES7P
