产品介绍
Intel® CoreTM i7/i3/Celeron标准型嵌入式无风扇工业电脑4×GbE, 3×mPCIe, HDMI/VGA
研华UNO-2000系列嵌入式无风扇工业电脑采用嵌入式操作系统（Windows CE、Windows Embedded 7 / 8，嵌入式Linux），具有坚固、可靠的特点。通过搭配标准化iDoor模块可实现设备对各种接口的自由扩充，包括Fieldbus协议模块（Profibus、Profinet、EtherCAT等）、内存扩展及带MRAM备份存储、数字量及模拟量I/O、各类串口、网口、3G/WiFi通讯类模块等。根据细分市场划分、性价比的不同定位，UNO-2000系列分为掌上型、小尺寸、标准型三种规格，适合于数据网关、集线器和数据服务器等应用。采用研华UNO-2000系列嵌入式无风扇工业电脑可以为用户缩短开发时间，并提供多个网络接口，以满足不同的要求。

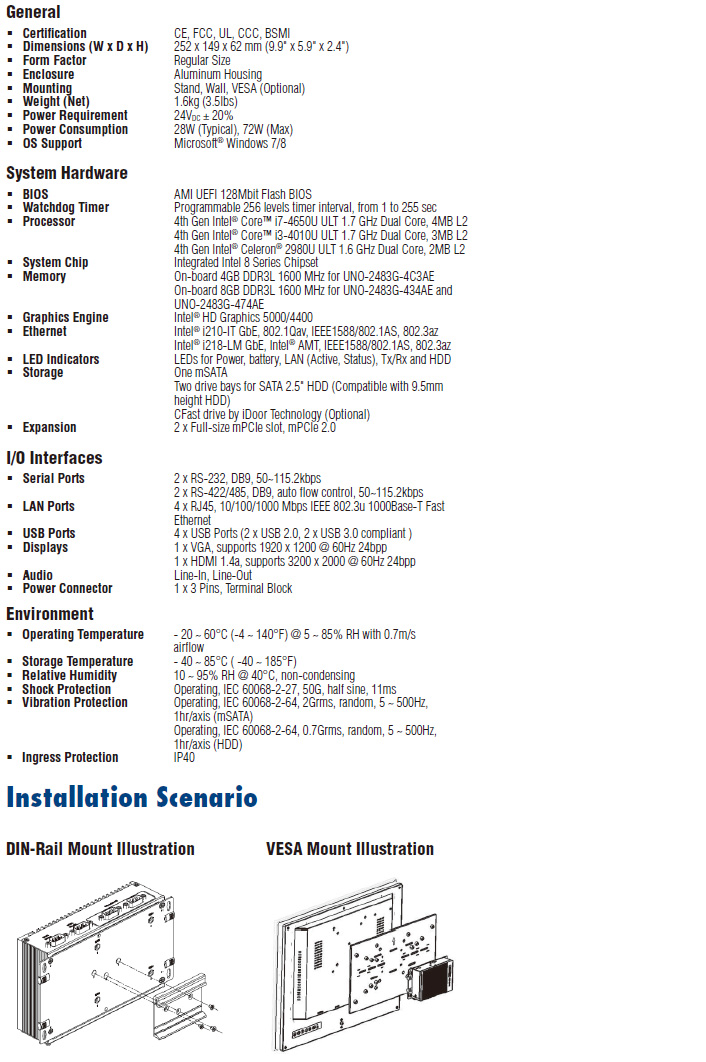

规格
订货信息
| P/N | Description |
| UNO-2483G-4C3AE | Intel® Celeron 2980U ULT 1.6GHz, 4GB, 4 x LANs, 2 x mPCIe |
| UNO-2483G-434AE | Intel® Core™ i3-4010U ULT 1.7GHz, 8GB, 4 x LANs, 2 x mPCIe |
| UNO-2483G-474AE | Intel® Core™ i7-4650U ULT 1.7GHz, 8GB, 4 x LANs, 2 x mPCIe |
| Accessories | |
| 96PSA-A150W24T2 | 150WC to DC UNO series power adapter (Industrial Grade) |
| PWR-249-AE | 65W AC to DC power adapter (Commercial Grade) |
| PWR-244-AE | 96W AC to DC power adapter (Commercial Grade) |
| 1702002600 | Power Cable US Plug 1.8 M (Industrial Grade) |
| 1702002605 | Power Cable EU Plug 1.8 M (Industrial Grade) |
| 1702031801 | Power Cable UK Plug 1.8 M (Industrial Grade) |
| 1700000596 | Power Cable China/Australia Plug 1.8 M (Industrial Grade) |
| 1700001524 | Power Cable 3-pin US type 1.8 M (Commercial Grade) |
| 170203183C | Power Cable 3-pin EU type 1.8 M (Commercial Grade) |
| 170203180A | Power Cable 3-pin UK type 1.8 M (Commercial Grade) |
| UNO-2000G-DMKAE | UNO-2000 DIN Rail Kit |
| UNO-2000G-VMKAE | UNO-2000 VESA Mount Kit |
| iDoor Modules | |
| PCM-24S2WF-AE | WiFi802.11 a/b/g/n 2T2R w/ Bluetooth4.0, Half-size mPCIe, 2-port SMA |
| PCM-24S23G-AE | 6-band HSPA Cellular Module, GPS, SIM holder, SMAx2 |
| PCM-24R2GL-AE | 2-Port Gigabit Ethernet, mPCIe, RJ45 |
| PCM-24D2R2-AE | 2-Port Isolated RS-232 mPCIe, DB9 |
| PCM-24D4R4-AE | 4-Port Non-Isolated RS-422/485 mPCIe, DB37 |
| PCM-24R1TP-AE | 1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45 |
| PCM-2300MR-AE | MR4A16B, MRAM, 2 MByte, mPCIe |
| PCM-24D4R2-AE | 4-Port Non-Isolated RS-232 mPCIe, DB37 |
| PCM-26D2CA-AE | 2-Port Isolated CANBus mPCIe, CANOpen, DB9 |
| PCM-27D24DI-AE | 24-Channel Isolated Digital I/O w/ counter mPCIe, DB37 |
| Embedded O/S | |
| 2070012443 | Image WES7P MUI. V4.12 B001 for UNO-2483G |
| 2070012949 | Image WES7P X64 MUI. V4.12 B002 for UNO-2483G |
| S/W Bundle Offering | |
| WA-HU2483G-315H2AE | UNO-2483G-434AE, HMI Runtime 1500 tags, 32G mSATA, WES7P |
| WA-SU2483G-315H5AE | UNO-2483G-434AE, SCADA Runtime 1500 tags, 128G SSD, WES7P |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

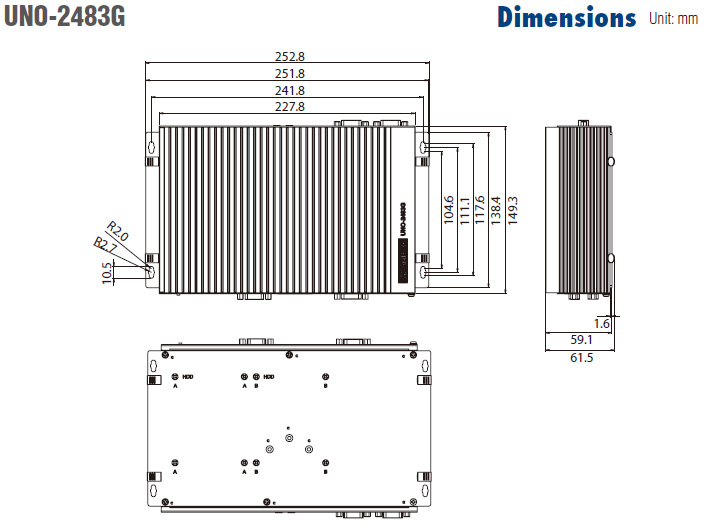

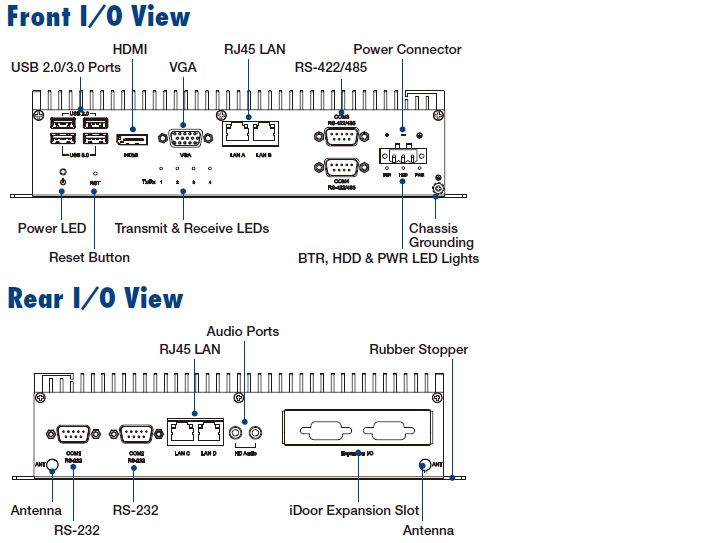

产品图片及框图
