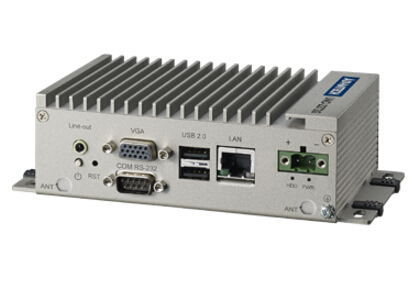

Intel® Atom™ Palm-Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA/HDMI
Advantech’s UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with an embedded operating system (Linux-Embedded). It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

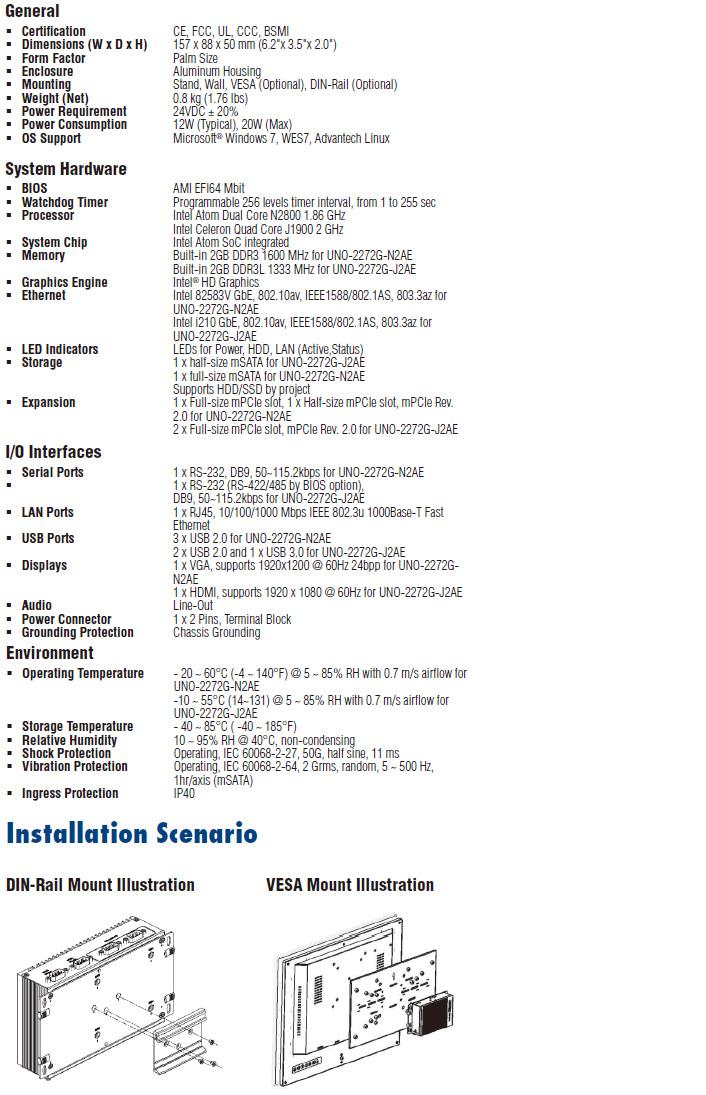

规格
订货信息
| P/N | Description |
| UNO-2272G-J2AE | Intel Atom J1900 2.41GHz, 2GB, 1xLANs, 2xmPCIe |
| UNO-2272G-N2AE | Intel Atom N2800 1.86GHz, 2GB, 1xLANs, 2xmPCIe |
| Accessories | |
| 96PSA-A150W24T2 | 150WC to DC UNO series power adapter (Industrial Grade) |
| 1702002600 | Power Cable US Plug 1.8 M (Industrial Grade) |
| 1702002605 | Power Cable EU Plug 1.8 M (Industrial Grade) |
| 1702031801 | Power Cable UK Plug 1.8 M (Industrial Grade) |
| 1700000596 | Power Cable China/Australia Plug 1.8 M (Industrial Grade) |
| 1700001524 | Power Cable 3-pin US type 1.8 M (Commercial Grade) |
| 170203183C | Power Cable 3-pin EU type 1.8 M (Commercial Grade) |
| 170203180A | Power Cable 3-pin UK type 1.8 M (Commercial Grade) |
| UNO-2000G-DMKAE | UNO-2000 DIN Rail Kit |
| UNO-2000G-VMKAE | UNO-2000 VESA Mount Kit |
| iDoor Modules | |
| PCM-24S2WF-AE | WiFi802.11 a/b/g/n 2T2R w/ Bluetooth4.0, Half-size mPCIe, 2-port SMA |
| PCM-24S23G-AE | 6-band HSPA Cellular Module, GPS, SIM holder, SMAx2 |
| PCM-24R2GL-AE | 2-Port Gigabit Ethernet, mPCIe, RJ45 |
| PCM-24D4R4-AE | 4-Port Non-Isolated RS-422/485 mPCIe, DB37 |
| PCM-24R1TP-AE | 1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45 |
| PCM-2300MR-AE | MR4A16B, MRAM, 2 MByte, mPCIe |
| PCM-24D4R2-AE | 4-Port Non-Isolated RS-232 mPCIe, DB37 |
| PCM-26D2CA-AE | 2-Port Isolated CANBus mPCIe, CANOpen, DB9 |
| PCM-26R2PN-SAE | 2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45, Slave |
| PCM-26R2PN-MAE | 2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45, Master |
| PCM-27D24DI-AE | 24-Channel Isolated Digital I/O w/ counter mPCIe, DB37 |
| Embedded O/S | |
| 2070013098 | Image WES7P X86 MUI. V4.12 B001 for UNO-2272G-Nx |
| S/W Bundle Offering | |
| WA-HU2272G-J15H2AE | UNO-2272G-J2AE, HMI Runtime 1500 tags, 32G mSATA, WES7P |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

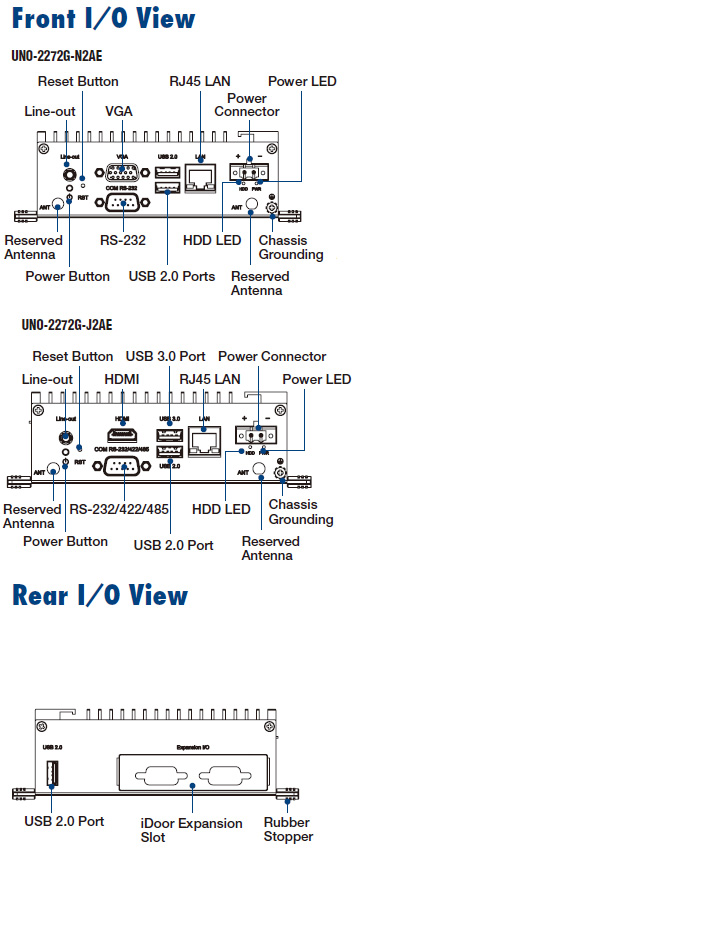

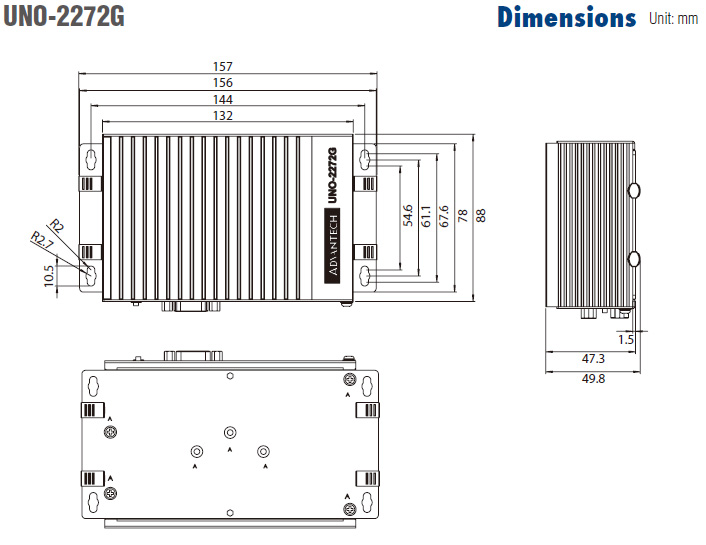

产品图片及框图
