产品介绍
Intel® Core™ i7 Automation Computer w/ 2 x GbE, 2 x mPCIe, HDMI, DVI-I
The high performing UNO-3283G models are configured with high-performance Intel Gen.6 Quad Core i7 processor and QM170 PCH, which offers users the maximum flexibility, three displays, six USB 3.0 ports, two mPCIe sockets, and up to three expansion slots including one PCIex16 slot, one PCI slot and one iDoor expansion, iDoor technology supports automation feature extensions such as industry Fieldbus communication, POE, COM & Digital I/O. The UNO-3283G has a variety of convenient designs, captive thumb screw, dual hot-Swappable HDD/SSD slots, exchangeable RTC battery can facilitate the maintenance work, and preventing unstable environment like as power drop via dual power input.

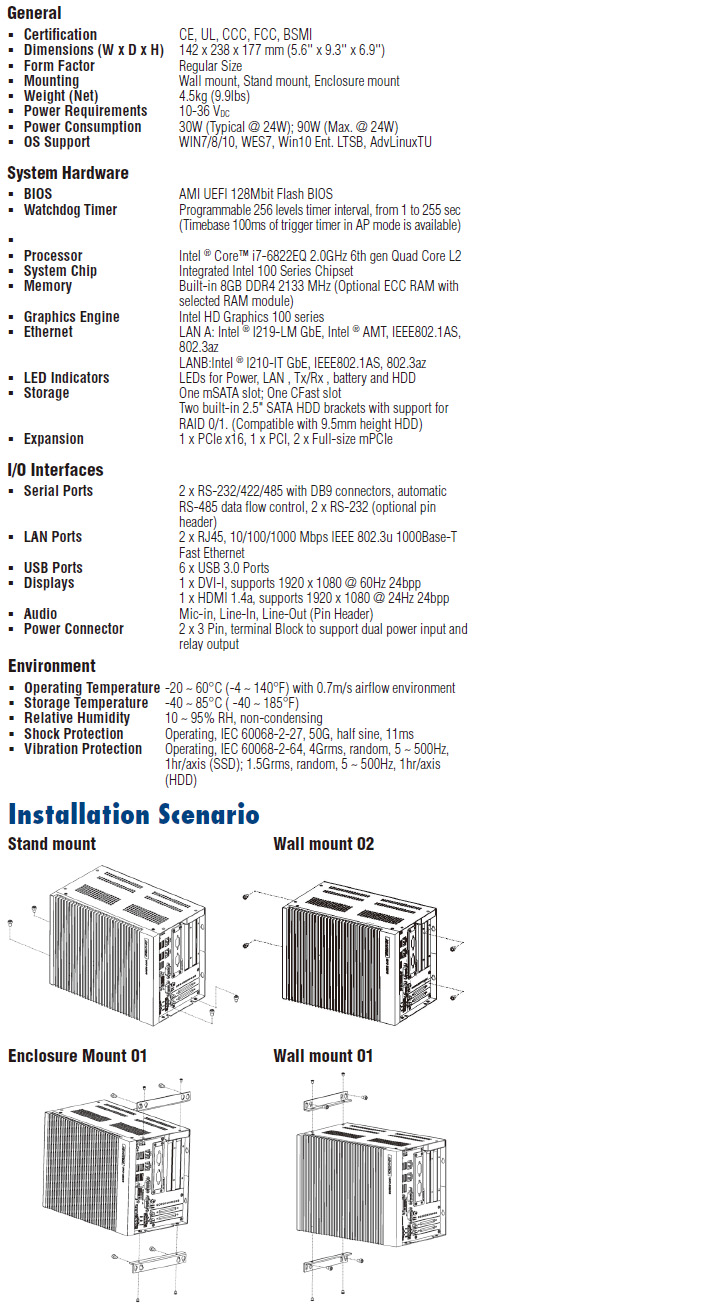

规格
订货信息
| P/N | Description |
| UNO-3283G-674AE | Intel Core™ i7-6822EQ 2.0GHz, 8GB, 2 x LAN, 1 x PCIe x16, 1 x PCI, 2 x Full-size mPCIe |
| Accessories | |
| 96PSA-A150W24T2 | 150W AC to DC power adapter |
| 1702002600 | Power Cable US Plug 1.8 M (Industrial Grade) |
| 1702002605 | Power Cable EU Plug 1.8 M (Industrial Grade) |
| 1702031801 | Power Cable UK Plug 1.8 M (Industrial Grade) |
| 1700000596 | Power Cable China/Australia Plug 1.8 M (Industrial Grade) |
| iDoor Modules | |
| PCM-2300MR-AE | MR4A16B, 2MByte |
| PCM-26D1PB-AE | Hilscher netX100 FieldBus, ProfiBus, DB9 x 1 |
| PCM-26D2CA-AE | SJA1000 CANbus, CANopen, DB9 x 1 |
| PCM-24D2R4-AE | OXPCIe-952 UART, Isolated RS-422/485, DB9 x 2 |
| PCM-24D2R2-AE | OXPCIe-952 UART, Isolated RS-232, DB9 x 2 |
| PCM-24D4R4-AE | OXPCIe-954 UART, Non-Isolated RS-422/485, DB37 x 1 |
| PCM-24D4R2-AE | OXPCIe-954, UART, Non-Isolated RS-232, DB37 x 1 |
| PCM-27D24DI-AE | Digital I/O, 16DI / 8DO, DB37 x 1 |
| PCM-24R1TP-AE | Intel 82574L, GbE, IEEE 1588 PTP, RJ45 x 1 |
| Embedded O/S | |
| 2070014705 | Win10 IoT Enterprise LTSB X64 MUI. V6.00B001 UNO-328xG (i7) Image |
| 2070014706 | WES7P x64 MUI V4.14 B002 for UNO-328xG Image |
| Optional Accessories | |
| 96PSA-A150W24T2 | 150W AC to DC power adapter |
| 1702002600 | Power Cable US Plug 1.8 M |
| 1702002605 | Power Cable EU Plug 1.8 M |
| 1702031801 | Power Cable UK Plug 1.8 M |
| 1700000596 | Power Cable China/Australia Plug 1.8 M |
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

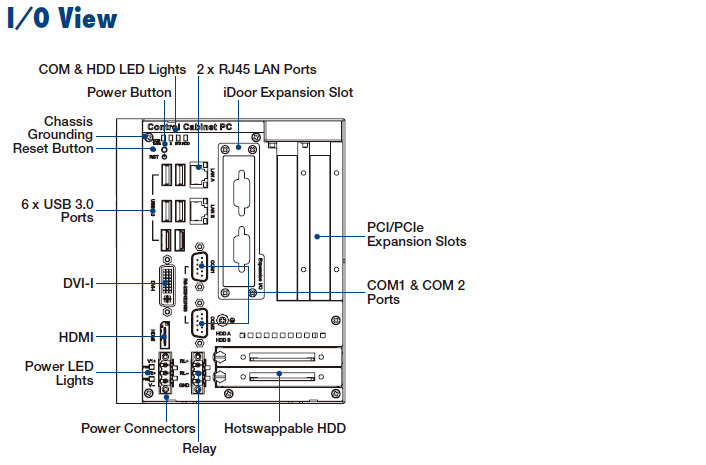

产品图片及框图
