研华工控机

AIIS-1440



主要特点

Intel® 3rd/2nd Core™ i7/i5/i3 CPU (LGA1155)
4-CH USB 3.0 with dedicated controller
Verified by USB3 Camera
Volume less than 3 Liter
Internal USB Type-A with lock design (Max. 49mm length)
Wall or DIN rail mounting kit (optional)
Build in G-sensor for vibration detection

产品介绍

USB3 CAM Control System, Supports Intel® Core™ i7/i5/i3 CPU, 4-CH dedicated USB3 controller


规格

Processor System CPU  Core i7-3770  Core i5-3550S  Core i3-3220
Core 2
Base Frequency  3.4 GHz  3.0 GHz  3.3 GHz
L3 Cache  8 MB  6 MB  3 MB
Chipset  H61
BIOS  AMI 64Mb SPI Flash
Memory Technology  Dual Channel DDR3 1066/1333 MHz (Non ECC)
Max. Capacity  16 GB (8 GB per DIMM)
Socket  204-pin SO-DIMM x 2
Graphics  Chipset Integrated  Integrated Intel HD Graphics
  Controller  CH1 ~ CH4: μPD720202
USB3 Compliant  USB 3.0
(Dedicated controller) Power Output  4.5W per Channel
Ethernet Interface  10/100/1000 Mbps
Controller  LAN1: Intel 82579V, LAN2: Intel 82583V
Storage Internal 2.5" HDD Bay  1 (max. 9.5 mm height)
CFast  1
Front I/O Display  VGA + DVI-D
USB  4 USB3.0
Serial  2 (RS-232, RS-422 or RS-485 via BIOS setting; RS-485 with auto-flow control)
Isolated DIO Default: 4 isolated DI and 4 isolated DO channels
Optional module: 16 isolated DI and 16 isolated DO channels (AIIS-DIO32-00A1E)
High-voltage isolation up to 2,500 VDC on all channels
Dry/wet contact support
Supports 5 ~ 60 VDC isolated input channels
High-sink current for isolated output channels (100mA max./Channel)
Interrupt handing & Timer/counter capability
Rear I/O USB  4 USB2.0
Serial  4 RS-232
Watchdog Timer Output  System reset
Interval  Programmable 1 ~ 255 sec/min
Power
Requirement
Power Type  ATX
Power Input Voltage  19 VDC ~ 24 VDC
Minimum Power Input  DC 19-24V @ 8-6.3A
Power Adapter  AC to DC, DC24V/9.16A, 220W (Optional)
Cooling  System Fan  1 (6cm / 27.7 CFM)
Miscellaneous LED Indicators  Power, HDD, temperature
Control  Power on/off switch
Environment   Operating  Non-operating
Temperature  0 ~ 45° C (32 ~ 113° F)*  -40 ~ 70° C (-40 ~ 158° F)
Humidity  10 ~ 95% @ 40° C,
non-condensing
10 ~ 95% @ 60° C,
non-condensing
Vibration  1Grms, random, 5~500Hz,
3 axes, 1 hr/axis
2G, sine wave, 5~500Hz,
3 axes, 1 hr/axis
Shock  10G, half sine wave, 11 ms duration
Physical
Characteristics
Dimension (W x H x D)  232 x 70 x 175 mm (9.06" x 2.76" x 6.89")
Weight  2.5 kg

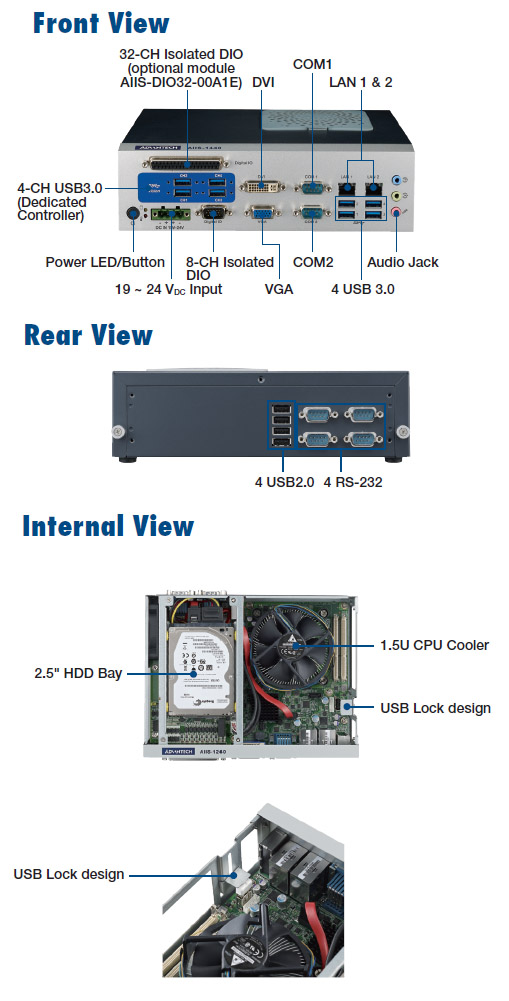

机箱图片

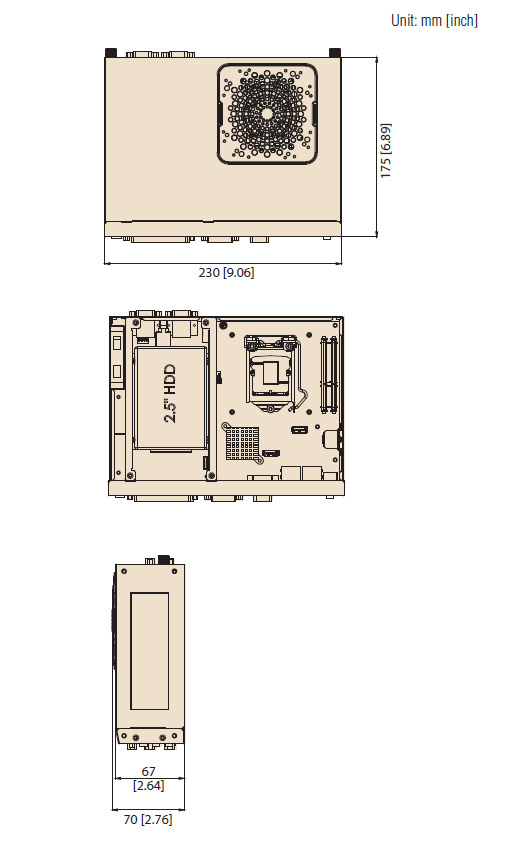

尺寸图片


订货信息

Part Number  Display  USB 3.0/2.0
AIIS-1440-00A1E  VGA+DVI-D  4* + 4 / 4
* Dedicated controller per channel
Part Number  Description
98R2124000E  DIN-Rail Bracket
1757004518-01  220Watt DC24 Adapter
1700023217-01  M cable D-SUB 15P(F)/D-SUB 25(M) 1M AIIS-1240
ADAM-3925-AE  DB-25 Wiring Terminal, DIN-rail Mount
AIIS-DIO32-00A1E  Isolated DIO module, 32-CH, 9-pin USB interface
1700037020  M Cable D-SUB 37P(M)/D-SUB 37P(M) 100CM
ADAM-3937-BE  DB-37 Wiring Terminal, DIN-rail Mount
Note: If there is no 19~24VDC source in your facility, this adapter is required to power on the system
Items  Part Number  Quantity
AIIS-1440  Bare System AIIS-1440-00A1E  1
Startup Manual  2006S12400  1
Driver CD  206K124000  1
Wallmount Bracket  1960014487T004  2
Rubber Foot  1990012452S000  4
CPU Cooler  1960060620N001  1
4-pin Phoenix DC power connector  1652003234  1
