研华工控机

EPC-B2205



主要特点

Supports Intel® 7th & 6th Gen Core™ i processor (LGA1151) with Intel Q170/H110 chipset
Two 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM
Supports triple display of VGA/DP/DVI
One expansion slot (low profile)
Two Shock Resistant 2.5" drive bays
Reserved 4 COM, and 2 WLAN antenna punchouts on front panel



产品介绍

Intel® 6th/7th Generation Core™ i3/i5/i7 performance embedded PC

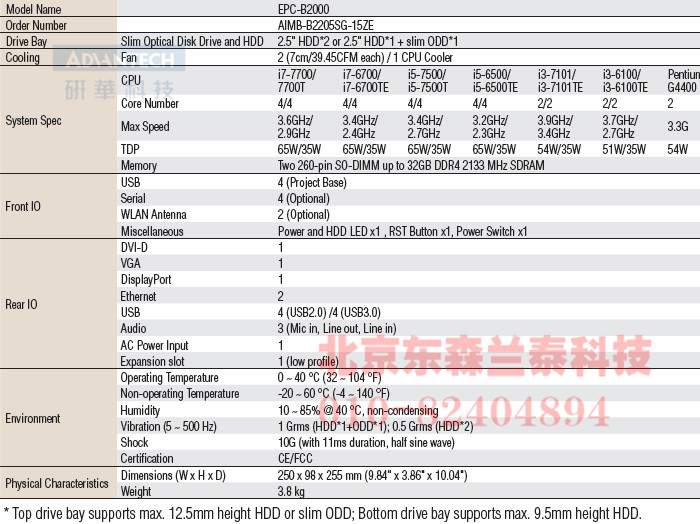

规格


订货信息

Ordering Information
Model Name Part Number Power Supply
EPC-B2000  AIMB-B2281SG-18ZE  ATX 180W
Power Supply Options
Part Number  Watts Input Watts Input
96PS-A180WFX  180 W  AC 100 ~ 240 V
Optional Accessories
Part Number  Description
96SDVR-8X-ST-HL-B  Slim DVD-ROM
1700023474-01  2 port USB cable, F10p/2.0, lock 10-pin(right-up), 345 mm
1700018971 SATA HDD cable for AIMB-226/231/281/203/274
1700011772 SATA power cable for slim ODD for AIMB-274/273/272/270/203 with AIMB-B2000-15ZE
1700023646-01 SATA power cable for slim ODD for AIMB-231/230/225/224/223/215/214/213 with AIMB-B2000-00YE
1700023647-01  SATA power cable for slim ODD for AIMB-212 with AIMB-B2000-00YE
1700000596 Power cable 3-pin 183cm, China type
1702031801 Power cable 3-pin 183cm, UK type
1702002600 Power cable 3-pin 183cm, USA type
1702002605 Power cable 3-pin 183cm, Europe type

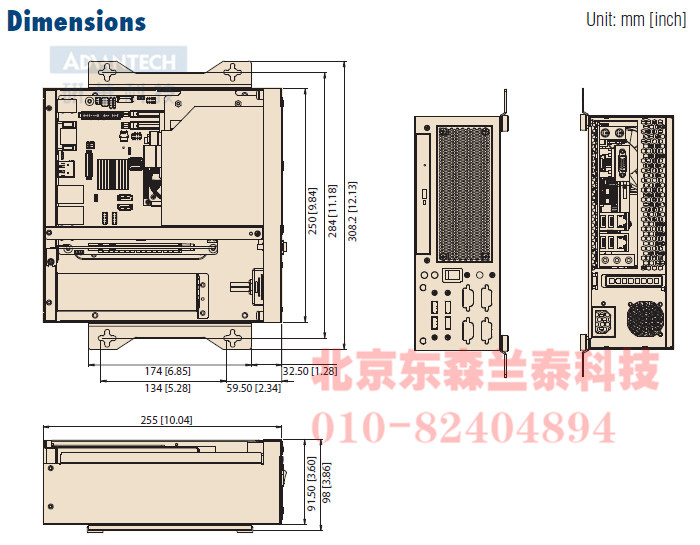

尺寸(单位:mm)

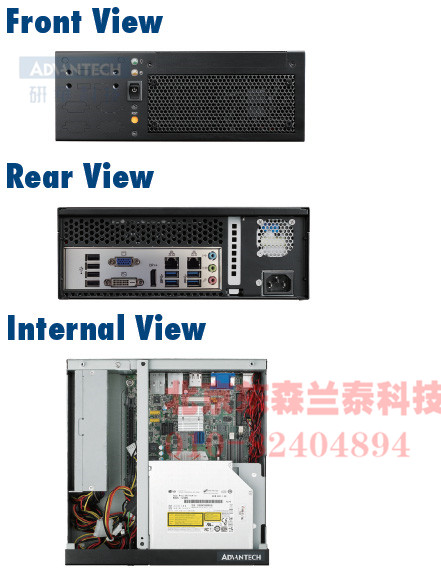

I/O Appearance
