主要特点
Q170 精简型工控机
支持半高PCIe-16扩展
前面板自带USB,COM,WLAN天线设计
2x2.5"防震动硬盘架
支持ATX或AC-DC电源输入
通过CE/FCC/CCC认证
|
|
产品介绍
Intel® 6th/7th Generation Core™ i3/i5/i7 performance embedded PC

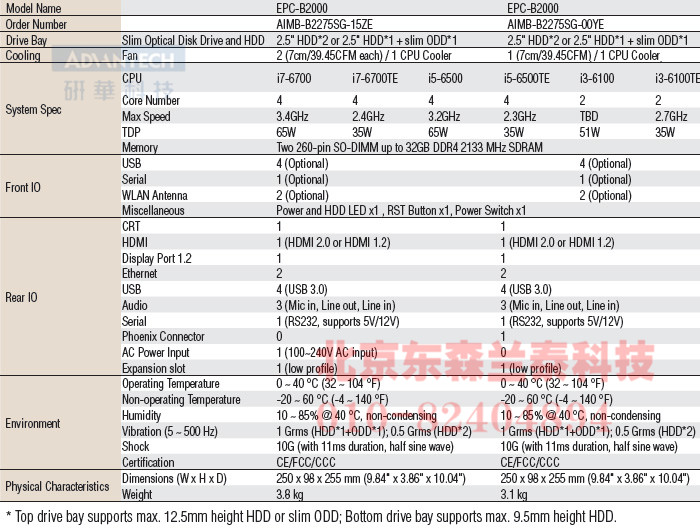

规格
订货信息
|
Ordering Information |
|
|
Model Name |
Part Number |
Power Supply |
|
EPC-B2000 |
AIMB-B2275SG-15ZE |
ATX 150W |
|
EPC-B2000 |
AIMB-B2275SG-00YE |
Optional external AC-DC Adaptor 120W with Phoenix Connector |
|
Power Supply Options |
|
|
Part Number |
Watts |
Input |
|
96PS-A150WFX-1 |
150 W |
AC 100 ~ 240 V |
|
96PSA-A120W12P4 |
120W |
AC 100 ~ 240 V |
|
Optional Accessories |
|
|
Part Number |
Description |
|
|
96SDVR-8X-ST-HL-B |
Slim DVD-ROM |
|
|
1700023474-01 |
2 port USB cable, F10p/2.0, lock 10-pin(right-up), 345 mm |
|
1700025573-01 |
2 port USB 3.0 Cable A CABLE USB 3.0 A/M*2/2*10P 2.0 90D 20CM |
|
1700021703-01 |
1 port COM cable, F-10p/2.54, 180mm (w/o Bracket) |
|
1700018971 |
SATA HDD cable |
|
|
1700021446-11 |
SATA power cable for slim ODD for AIMB-B2275-15ZE |
|
1700023646-01 |
SATA power cable for slim ODD for AIMB-B2275-00YE |
|
1700000596 |
Power cable 3-pin 183cm, China type |
|
1702031801 |
Power cable 3-pin 183cm, UK type |
|
1702002600 |
Power cable 3-pin 183cm, USA type |
|
1702002605 |
Power cable 3-pin 183cm, Europe type |

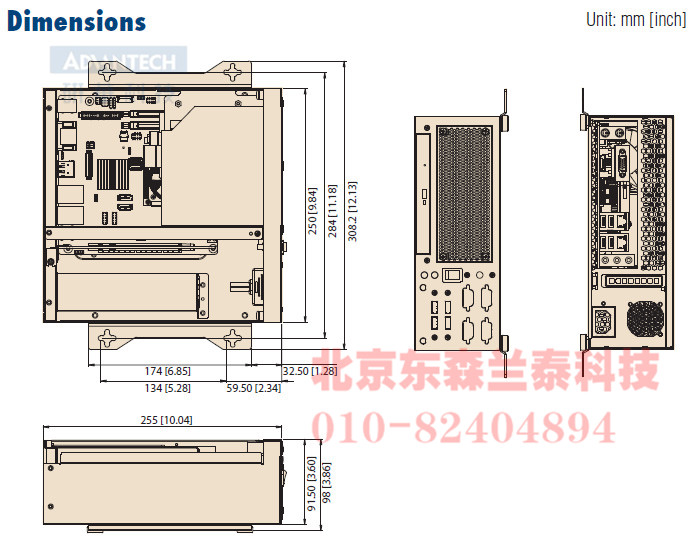

尺寸(单位:mm)

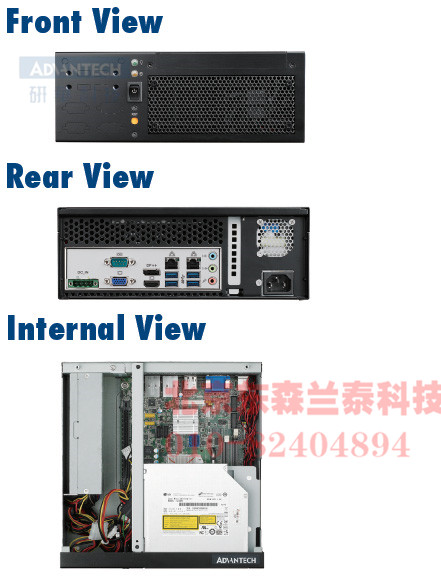

I/O Appearance
|
