主要特点
无风扇Intel® Pentium/Celeron/Atom 四核/双核系统
2 x 204-pin 内存高达8 GB DDR3L 1866 MHz SDRAM
支持多种显示DP 1.2/HDMI 1.4b/VGA
外围设备安装简易便捷
支持挂墙/VESA/导轨/机架
1U超薄设计
|
|
产品介绍
Intel® Pentium N4200 fanless, dual display 1U THIN embedded PC

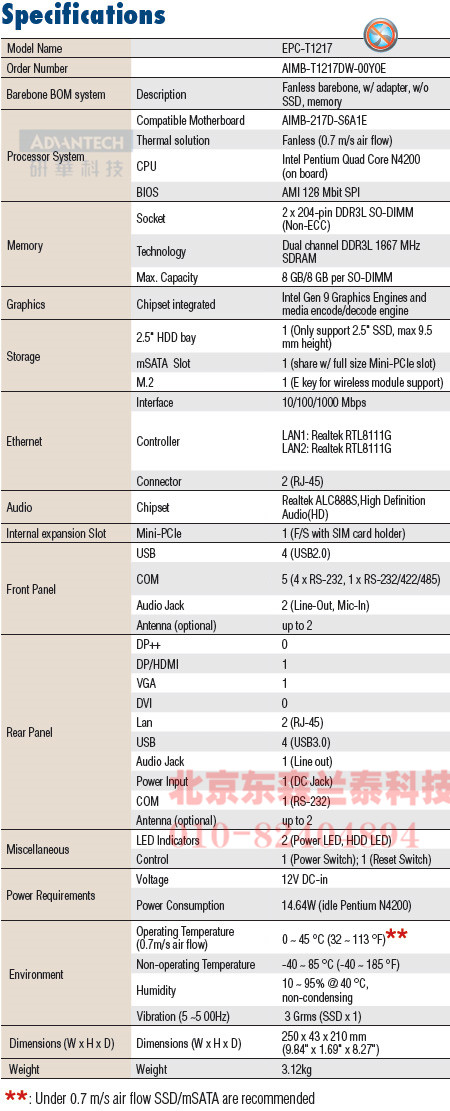

规格
订货信息
|
Ordering Information |
|
|
Model Name |
Part Number |
Supported MB |
|
EPC-T1215 |
AIMB-T1215DA-00Y0E |
AIMB-215D-S6B1E |
|
EPC-T1215 |
AIMB-T1215DW-00Y0E |
AIMB-215D-S6B1E |
|
EPC-T1232 |
AIMB-T12325W-00Y10 |
AIMB-232G2-U5A1E |
|
EPC-T1232 |
AIMB-T12323W-00Y10 |
AIMB-232G2-U3A1E |
|
EPC-T1231 |
AIMB-T12315A-00Y0E |
AIMB-231G2-U5A1E |
|
EPC-T1231 |
AIMB-T12313A-00Y0E |
AIMB-231G2-U3A1E |
|
EPC-T1231 |
AIMB-T12315W-00Y10 |
AIMB-231G2-U5A1E |
|
EPC-T1217 |
AIMB-T1217DW-00Y0E |
AIMB-217D-S6A1E |
|
EPC-T1227 |
AIMB-T12272A-00Y0E |
AIMB-227MG2-02A1E |
|
Optional Accessories |
|
|
Part Number |
Description |
|
|
AIMB-0BRK-WM02E |
Wall Mounting Bracket |
|
AIMB-0BRK-VM03E |
VESA Mounting Bracket |
|
AIMB-0BRK-DR02E |
Din Rail Mounting Bracket |
|
AIMB-0BRK-RM01E |
Rack mount bracket |
|
|
1700023474-01 |
2 ports USB cable for front panel, 345mm |
|
1700022991-01 |
2 ports USB cable for rear panel, 100mm |
|
1700022988-01 |
4 ports COM Cable for front panel, 130+170+210+250mm |
|
1700022990-01 |
1 prot COM Cable for rear panel, 150mm |
|
1700022992-01 |
2 ports Audio Cable for front panel, 200mm |
|
96PSA-A60W12V1-1 |
60W Power Adapter, DC 12V/ 5.0A, AC 100-240VAC/ 1.5A 50-60Hz |
|
96PSA-A84W12V1 |
84W Power Adapter, DC 12V/ 7.0A, AC 100-240VAC/ 1.3A 50-60Hz |
|
1702002600 |
Power cord, 3-pin power cord (US) |
|
1702002605 |
Power cord, 3-pin power cord (EU) |
|
1702031801 |
Power cord, 3-pin power cord (UK) |
|
1700000237 |
Power cord, 3-pin power cord with PSE (Japan) |
|
1700000596 |
Power cord, 3-pin power cord (CCC) |
|
