主要特点 16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports SFP socket for Easy and Flexible Fiber Expansion Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3 Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP Dual Power input and 2 relay output -40 ~ 85˚C wide-range operating temperature

产品介绍

Ind. Rackmount L2 Managed Switch with AC/DC

The EKI-9228G series are designed for power substation automation applications which meet IEC 61850-3 certification. Thanks to its -40 ~ 85˚C wide operating temperature it can operate well in extremely harsh environments. Designed with 16 Gigabit ports and 4 Gigabit SFP ports and 8 Gigabit com. ports it provides abundant and flexible connection ports. Finally, the EKI-9228G series contain dual power inputs to ensure system stability and 2 relay output for greater user flexibility.

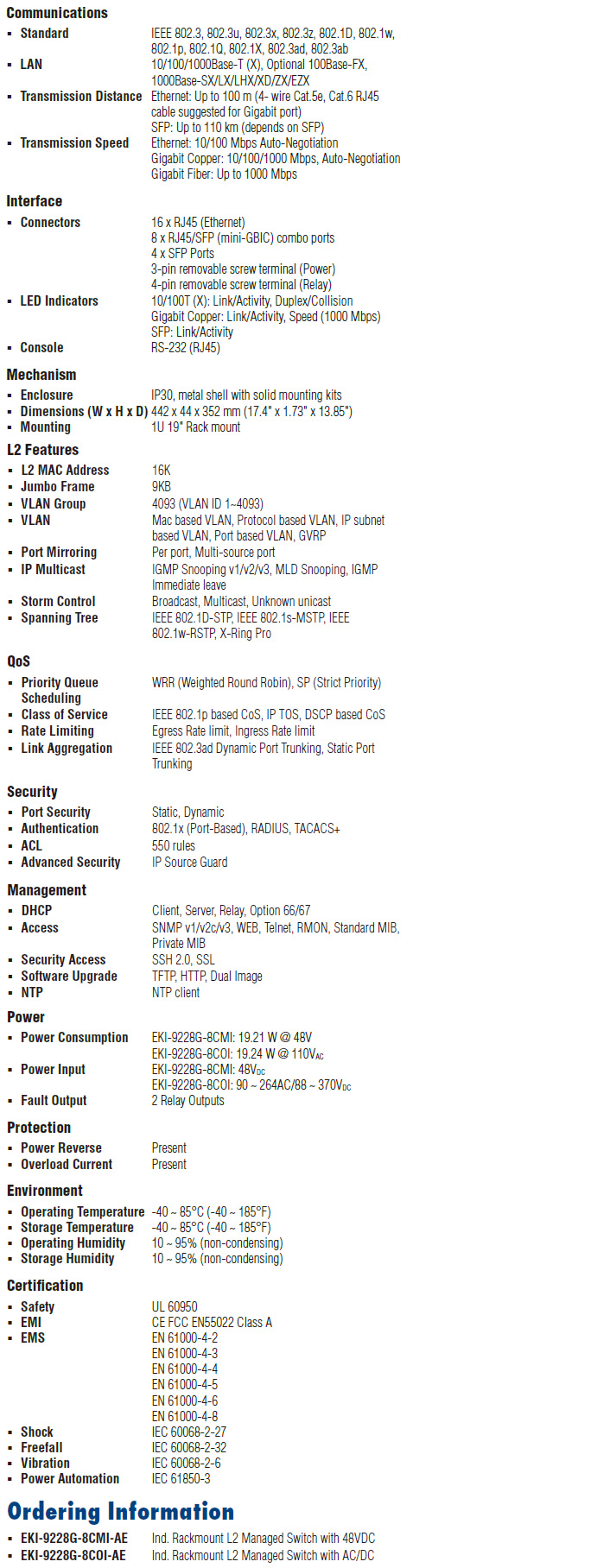

规格

订货信息

电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

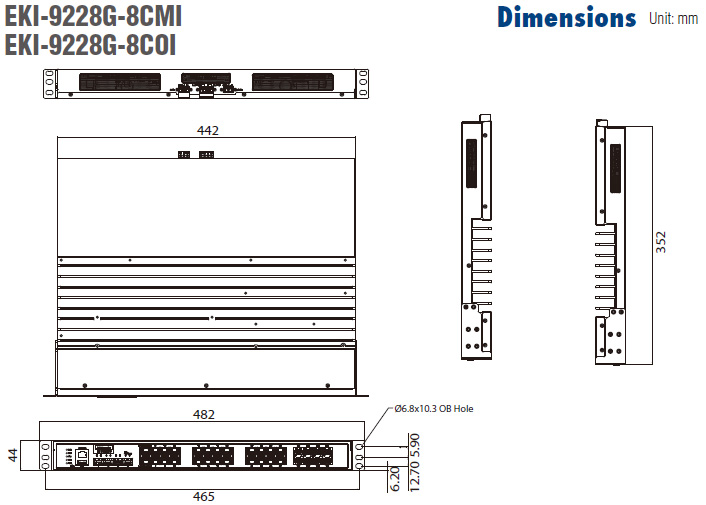

产品图片及框图
