主要特点
1 x Intel Xeon E5-2600/E5-1600 v3/v4 processors up to 145W TDP
8 x RDIMM DDR4 2133/2400 ECC REG memory up to 256GB
4 x NMC (Network Mezzanine Card) slots by PCIe gen. 3 support
1GbE/10GbE/40GbE NMCs with or without advanced LAN bypass
1 x PCIe x8 slots support FH/HL add-on cards
1 x CF slot
1 x mSATA Slot
4 x 3.5" HDD tray ( or 4 x 3.5” HDD internal bay, SKU option)
IPMI 2.0 compliant Remote Management
|
|
产品介绍
Based on the latest Intel Xeon processor platform, the FWA-6520L system belongs family with one socket platform to FWA-6520 which is a straight upgrade from Advantech’s leading FWA-6510 dual socket platform. The FWA-6520L has been designed for maximum performance, scalability and functionality in a 2U rack mount footprint. This multi-core processor-based, high-end network communications appliance is optimized for computing power and high speed, high density I/O with best-in-class energy efficiency.

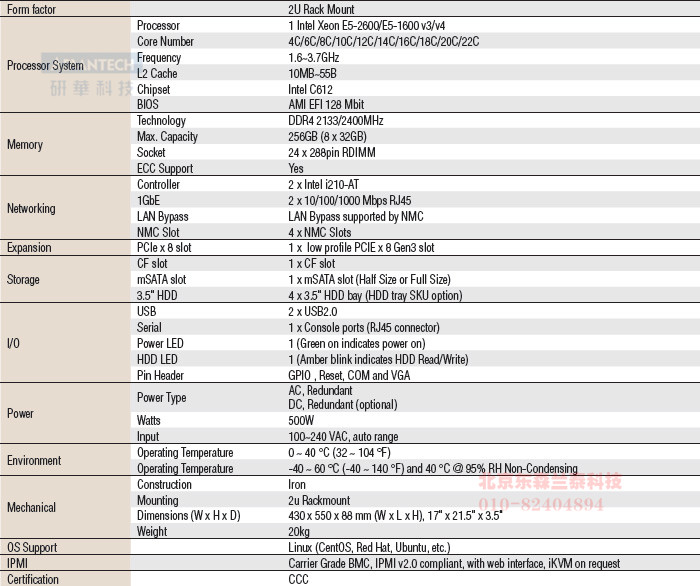

规格
订货信息
|
FWA-6520L-00E |
Intel Xeon processors E5-2600/E5-1600 v3/v4 |
|
FWA-6520L-01E |
Intel Xeon processors E5-2600/E5-1600 v3/v4 |
|
Packing List |
|
|
Part Number |
Description |
|
1700019367-11 |
VGA port cable 45mm |
|
1700020691-01 |
Console cable D-SUB 9P(F)/RJ45 220cm |
|
Optional Accessories |
|
Part Number |
Description |
|
1702002600 |
Power cord 3P 180cm, USA |
|
1702002605 |
Power cord 3P 180cm, Europe |
|
1702031801 |
Power cord 3P 180cm, UK |
|
1700000237 |
Power cord 3P 180cm, JP |
|
1700009652 |
Power cord 3P 180cm, China |
|
9680015345 |
Slide rail |

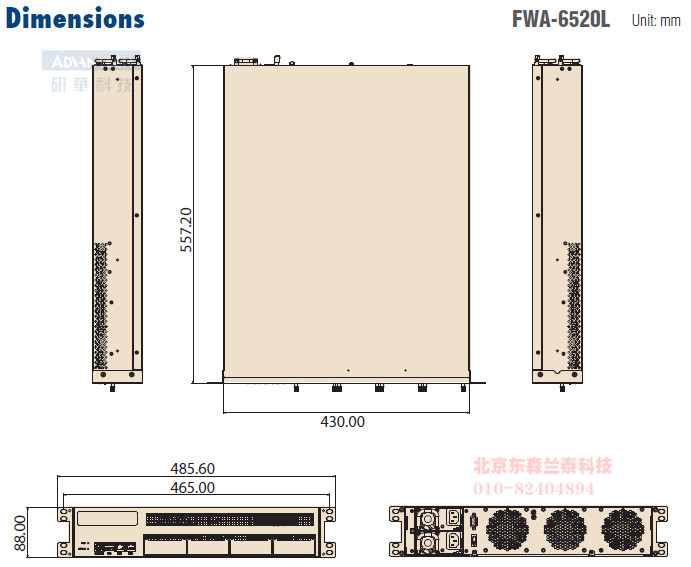

尺寸(单位:mm)

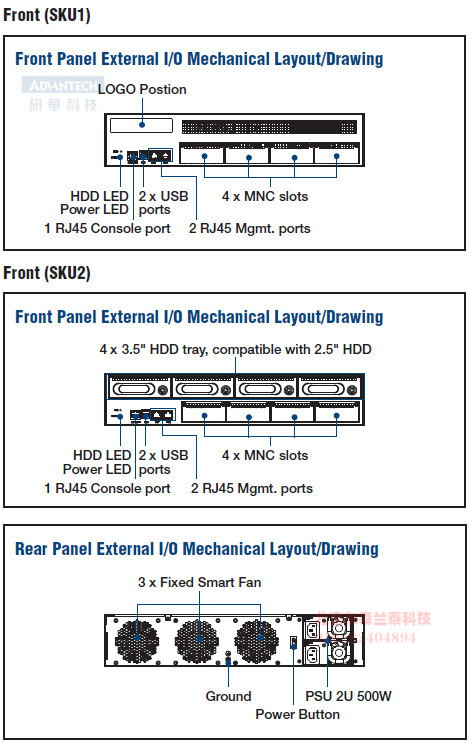

I/O Appearance
|
