主要特点
1x Intel® XL710-BM2
4 ports fiber LC (SR & LR) interface
PCI-E 3.0 x8
Lan Bypass model available (Advanced LAN Bypass-Bypass, Normal, Disconnect mode)
NC-SI for IPMI Management
RoHS compliant
|
|
产品介绍
NMCs are cost-optimized, high density IO modules for use in Advantech’s Network Application Platforms. A wide choice of GbE, 10GE and 40GE modules supporting copper and fiber interfaces with or without advanced LAN bypass gives our customers the flexibility to match varying deployment scenarios. Complementing a full range of network appliances supporting 1 to 8 NMC bays, these IO modules provide the scalability required to meet target price/performance ratios in even the most demanding use cases. At the same time, NMCs reduce the total cost of ownership and service cost via re-usability across the product range and multiple product generations. The option of factory and field installation enables upselling opportunities and "pay as you grow" concepts.

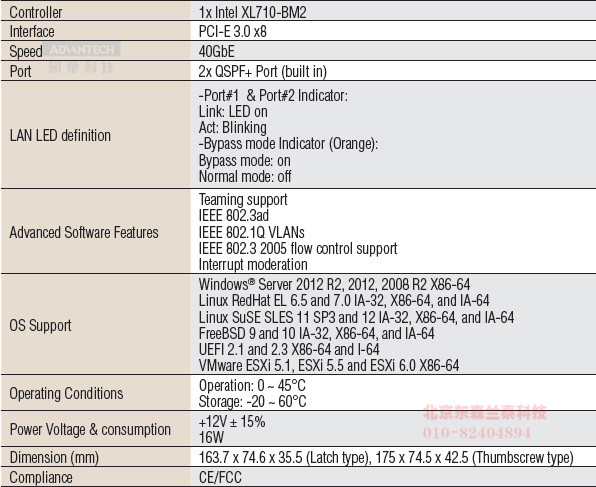

规格
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Transmitter |
|
|
|
|
|
|
|
Output Optical Power (Avg.) |
Po |
-7.6 |
|
2.4 |
dBm |
1 |
|
Optical Extinction Ratio |
ER |
3 |
|
dB |
|
|
|
Center Wavelength |
入C |
840 |
850 |
860 |
nm |
|
|
Spectral Width (RMS) |
o |
|
|
0.65 |
nm |
|
|
Receiver |
|
|
|
|
|
|
|
Stress Receiver Sensitivity (Avg.) |
PIN |
|
|
-5.4 |
dBm |
1,2 |
|
Input Optical Wavelength |
入 |
840 |
|
860 |
DBm |
|
|
LOS-Deasserted |
PA |
|
|
-7.5 |
dBm |
|
|
LOS-Asserted |
PD |
-30 |
|
dBm |
|
|
|
LOS-Hysteresis |
PA- PD |
0.5 |
|
dB |
|
|
|
Optical Switch |
|
|
|
|
|
|
|
Wavelength Range |
入R |
670 |
|
980 |
nm |
|
|
Insertion Loss |
OIL |
|
0.4 |
2 |
dB |
|
|
Return Loss |
ORL |
30 |
|
dB |
|
|
|
Switch Time |
|
|
|
8 |
ms |
|
|
Lifetime |
|
|
^ 107 |
times |
|
|
|
Latching Resistance |
RLAT |
|
125 |
Q |
|
|
Notes:
1. Normal Mode (Bypass off).
2. The sensitivity provided at a BER of 1×10-12or better with an input signal consisting of 10.3125Gb/s, 231-1 PRBS
订货信息
|
Part Number |
Type |
Description |
NMC-4008-02FBSLA1
(PVT but can be ordered) |
Thumbscrew |
2-ports 40GbE QSFP+ Bypass Module |

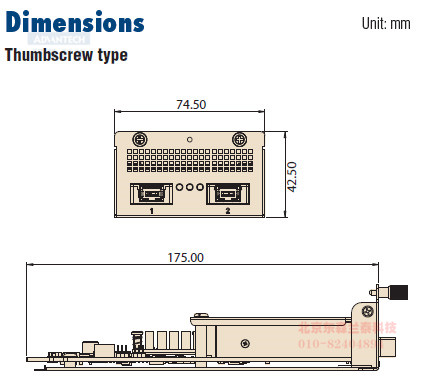

尺寸(单位:mm)
|
