主要特点 Low power consumption (<5W) Small form-factor (90 x 100mm2) Onboard 1GB DDR3 memory One miniUSB console port One micro SD card connector One gigabit Ethernet RJ-45 connector One USB2.0 Type-A connector One audio phone jack input 1-Ch SDI-3G & HDMI video inputs 1-Ch HEVC/H.264 1080p60 encode

VEGA-2000 (previously known as HVC-6300), is a small form-factor module designed for encoding live video using either advanced HEVC (High Efficiency Video Coding) Main Profile or H.264 BP/MP/HP video compression up to 1080p resolution at 60 frames per second, with CBR (Constant Bit Rate) & VBR (Variable Bit Rate) support from 64kbps ~ 32Mbps. The single SDI-3G or HDMI video inputs provide video capture capability in convenient formats for professional video feeds while the onboard USB 2.0 and gigabit Ethernet ports offer great flexibility in transporting the compressed video stream through wireless (such as WiFi, LTE, etc.) and wireline interconnections to remote and cloud side for archiving or further processing. The SD memory card interface can also be used for local storage. The module also features audio encoding from either embedded SDI/HDMI audio channels or a separate 3.5mm audio jack socket.

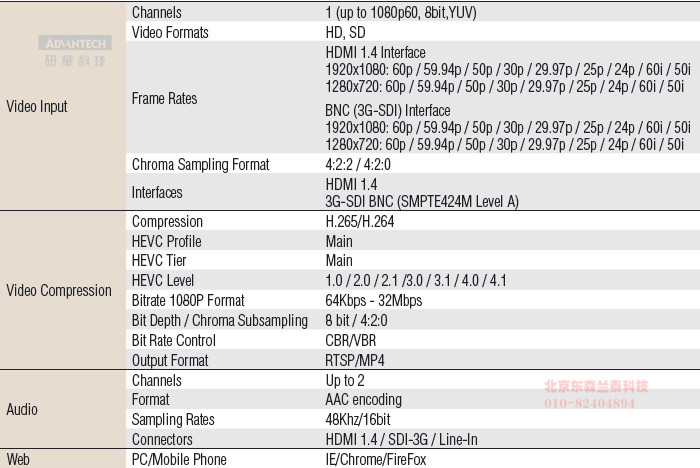

规格

订货信息
