主要特点 China Electricity Certificate IV level Certification for substation applications IEC 61850-3 and IEEE 1613 compliant Intel Atom N2600 1.6GHz processor, 2GB DDR3 2 x RS-232, 16 x RS-232/485(Max.) isolated serial ports 2 x 10/100/1000, 6 x 10/100 Base-T Ethernet ports 1 x CF, 2 x 2.5" SATA HDD, RAID (RAID 0 & RAID 1) 8-ch isolated DI, 8-ch isolated DO 1 x Time Synchronize IRIG-B Redundant isolated power with wide AC/DC input range Mounting: 2U Rack-mount iCDManager: intelligent Connectivity Diagnosis and Management

The ECU-4674 series of products is compliant with Electricity Certificate level IV (especially for China) and IEC 61850-3 and IEEE 1613 certification , which provide higher reliability and stability, suitable for any Global P&E automation market and harsh environment. With versatile communication interface to use for Smart substation Communication server and IED Analyzer to fulfill the Data Gateway & Protocol Conversion requiremment easily. Featuring a fanless design with high performance Intel Atom N2600 processor, the ECU-4674 comes with 18 isolated serial ports, 8 x LAN and 1 x PCI-104 extension. With iCDMananger support , users can easy diagnose System & Communication and enhance maintenance efficiency, with Structured and functional module Internal design for easy customization and Fast assembly to fulfill the different kind of application.

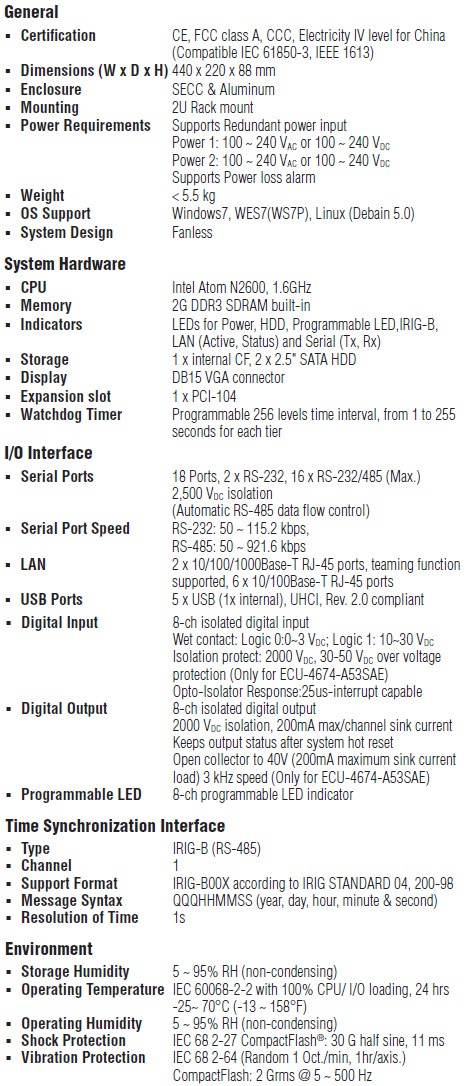

规格

订货信息
