主要特点
Freescale ARM Cortex-A9 i.MX6 Dual/Quad 1 GHz high performance processor
ƒOnboard DDR3 1 GB, up to 2 GB
On board 4 GB eMMC Flash
Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, full HD 1080p video codec
ƒHDMI 1920x1080
ƒ1 USB 2.0, 1 10/100/1000 Mbps Ethernet; 1 SD Slot
On board mini-PCIe connector for WIFI/3G module support
ƒLow power, fanless design
ƒSupports wall mount and Din-rail
|
|
产品介绍
UBC-200是基于Freescale ARM Cortex-A9 i.MX6 的紧凑型工控整机。微小的机身，配上1GB DDR3和4GB eMMC，支持HDMI1080P全高清硬解码。内置Mini-PCIe接口 for Wifi，3G, 4G模块

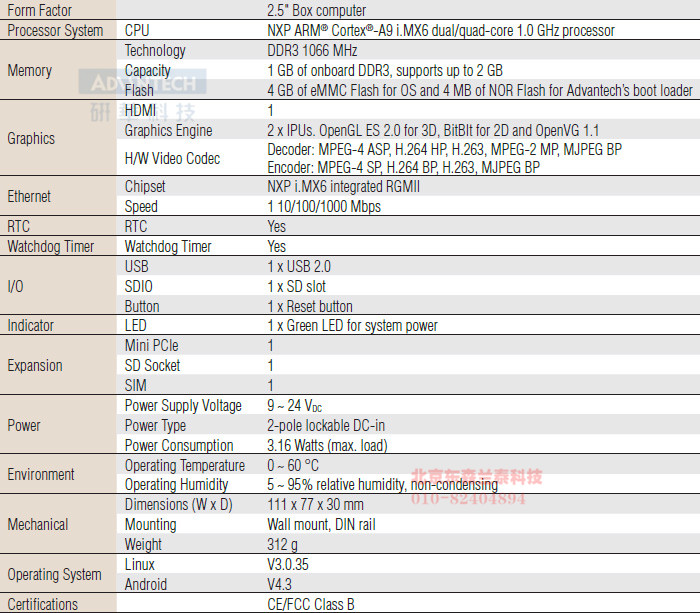

规格
订货信息
|
Ordering Information |
|
P/N |
CPU |
|
UBC-200CD-MDA1E |
NXP i.MX6 dual-core, 1 GHz |
|
UBC-200CQ-MEA1E |
NXP i.MX6 quad-core, 1 GHz |
|
Packing List |
|
|
Part Number |
Description |
|
1960062939N001 |
Wall-mount bracket |
|
Optional Accessories |
|
Part Number |
Description |
|
96PSA-A36W12R1 |
Adapter 100-240 V 36 W 12 V 3A |
|
1700017968 |
DC-jack/plug-in cable |
|
1960015198T011 |
DIN-rail for UBC-200 |
|
SQF-ISDS1-2G-86E |
SQFlash SD card SLC 2G, 1CH (-40 ~ 85 °C) |
|
EWM-W142F01E |
802.11 b/g/n, AR9287, 2T2R, full-size mini PCIe |
|
1750007050-01 |
Wi-Fi RP-SMA short SMA jack (9.5 mm) to U.FL,100 mm(Wi-Fi cable) |
|
1750000318 |
EMI antenna 2DBI 2.4 GHz SMA CONN for ARK-3384(Wi-Fi antenna) |
|
EWM-C106FT01E |
Cellular, HSUPA/WCDMA/GPRS, full-size mini PCIe |
|
1750007156-01 |
Cellular/GPS SMA short jack (9.5 mm) 100 mm(3G cable) |
|
1750005865 |
Antenna, 10.9 cm, 50 ohm, AN8921F-5701SM(3G antenna) |
|
1700001524 |
Power cord 3P UL 10A 125 V 180 cm |
|
170203183C |
Power cord 3P Europe (WS-010+WS-083) 183 cm |
|
170203180A |
Power cord 3P UK 2.5A/3A 250 V 1.83 M |
|
1700008921 |
Power Cord 3P PSE 183cm |

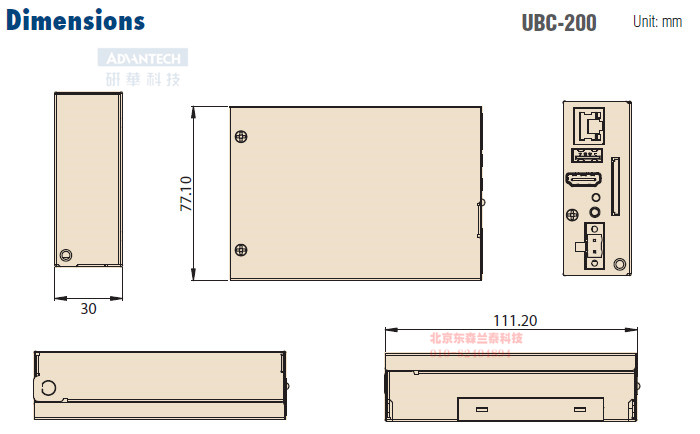

尺寸(单位:mm)

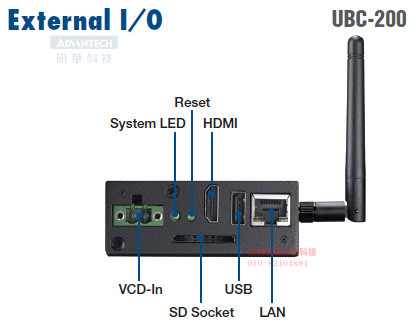

I/O Appearance
|
