手持终端

WISE-1540



主要特点

ARM Cortex-M4 Core Processor
IEEE 802.15.4e standard with self-healing mesh network
99.999% Data Reliability and power optimization
Rich interface for sensor and I/O control
Support wide temperature -40 ~ 85 °C



产品介绍

WISE-1540 is M2.COM standardized IoT Sensor Node integrated with ARM Cortex-M4 Processor and Dust’s time-synchronized SmartMesh networks. With time slotted channel hopping (TSCH) link layer, all nodes are synchronized to within less than a millisecond. Time in the network is organized into time slots, which enables collision-free packet exchange and per-transmission channel-hopping.All nodes within SmartMesh networks could route, source or terminate data while providing years of battery powered operation. SmartMesh Networks are the great fit for Industry 4.0 Applications to deliver a highly reliable network in the most challenging RF environments such as Machine diagnostics, Factory Automation, Environment Monitoring and ProductionEfficiency. In the SmartMesh network, every device has one or more parents which provide redundant paths to overcome communications interruption due to interference, physical obstruction or multi-path fading. If a packet transmission fails on one path, the next retransmission may try on a different path and different RF channel. Developer can be easily to extend the network coverage via SmartMesh.Advantech WISE-1540 also provide multi-interfaces for sensor and I/O control. With Arm mbed embedded microprocessor operating system and add-on software stacks, it's convenient to support IoT communication protocols including LWM2M, CoAP and MQTT via WISE-3310 Mesh IoT Gateway. Data can be quickly and easily acquired and transformed into a different format to communicate with WISE-PaaS, Mbed Cloud or other cloud services. Developer can build their application backbone faster and focus on their applications, value-added services.

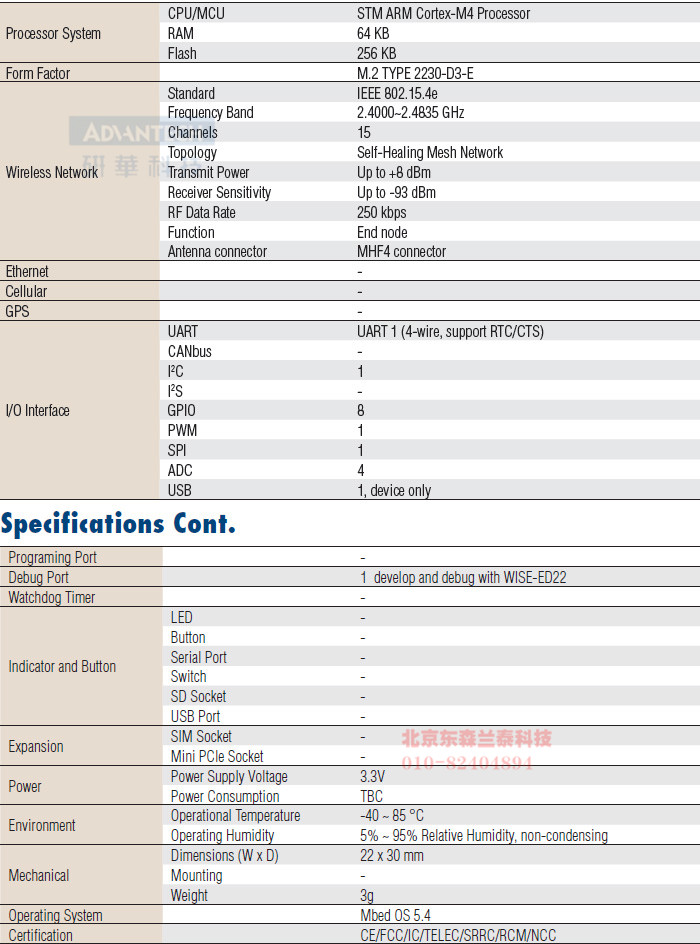

规格


订货信息

Ordering Information
P/N Description
WISE-1540WMB-SDA10 WISE-1540 M2.COM Mesh network IoT Node
Optional Accessories
Part No.  Description
WISE-DB1500-0IA1E  M2.COM evaluation carrier board
1750008001-01 Antenna 2.4G/5GHz 5dBi
1750007622-01  Antenna 2.4Ghz 3.5dBi
1750007965-01  Antenna Cable R/P SMA (M) to MHF4, 300mm
1700015038 FPC Cable 10P-0.5mm 7.9cm
9696ED2200E  ASS'Y WISE-ED22 A101-1 M2.COM Daughter
1931000590 Screw M2.5x5L F/S D=5.3 H=0.8 (1+) ST Ni
1700023619-01  A cable USB-A 4P(M)/micro USB 5P(M) 1m
1700025876-01  M cable USB-A 4P(M)/Plug-in 2P-5.0 90CM
