手持终端

WISE-3610

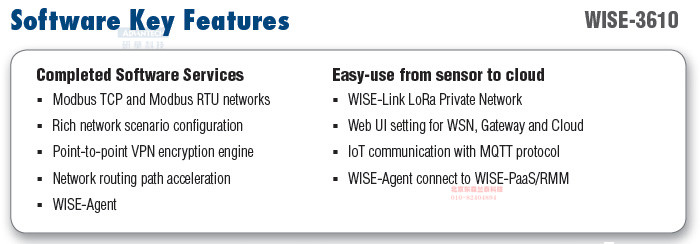

主要特点

Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2x2)
LPWAN LoRa Private (WISE-Link) Connectivity
WAN x1 / LAN x1 Gigabit Ethernet
Integration of Modbus TCP and Modbus RTU networks
IPSec / L2TP VPN Traffic Encryption
Rich Network Scanrio by S/W Configuration
Modularization hardware design
OpenWRT BSP embeded
Web UI user interface



产品介绍

WISE-3610 is Qualcomm ARM Cortex A based hardware platform, which is operating at OpenWRT, described as a Linux distribution for embedded devices. The Advantech WISE-3610 Industrial Router is Advantech IoT gateway design for smart city, Industrial 4.0 applications, even those in harsh environment, leveraging wireless sensor technology. This IoT gateway can aggregate both the wireless sensor networks (WSN), including Low Power WAN (LPWAN) technology by Advantech private LoRa technology, wired sensors and ties them into an IP network. With modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands, wireless communication protocol by various uplink requirement and quickly go to market.

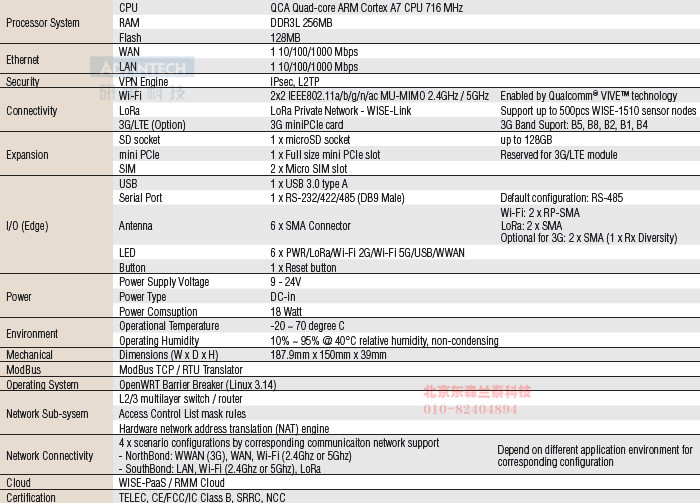

规格


订货信息

Ordering Information
P/N Description
WISE-3610ILS-51A1N  WISE-3610 Private LoRa Network IoT Gateway NA915
WISE-3610ILS-51A1E  WISE-3610 Private LoRa Network IoT Gateway EU868
WISE-3610ILS-51A1J  WISE-3610 Private LoRa Network IoT Gateway JP923
WISE-3610ILS-51A1C  WISE-3610 Private LoRa Network IoT Gateway CN470
Related Models
Model Name  Description
WISE-1510WMB-SDA1N  WISE-1510 M2.COM LoRa module-NA915
WISE-1510WMB-SDA1E  WISE-1510 M2.COM LoRa module-EU868
WISE-1510WMB-SDA1J  WISE-1510 M2.COM LoRa module-JP923
WISE-1510WMB-SDA1C  WISE-1510 M2.COM LoRa module-CN470
WISE-1520ITB-TDA1E  WISE-1520 M2.COM Wi-Fi module
Optional Items
Part No.  Description
1700001524 Power Cable 3-pin 180cm, USA type
170203183C  Power Cable 3-pin 180cm, Europe type
170203180A  Power Cable 3-pin 180cm, UK type
1700008921 Power Cable 3-pin PSE Mark 183cm
1750008424-01  3G/LTE Antenna Dipole 4dBi Full Band
1750008669-01  3G/LTE RX Diversity Antenna Cable IPEX to IPEX Connector
968EMW0093  Mini PCIE HSPA 3G Card with Rx Diversity

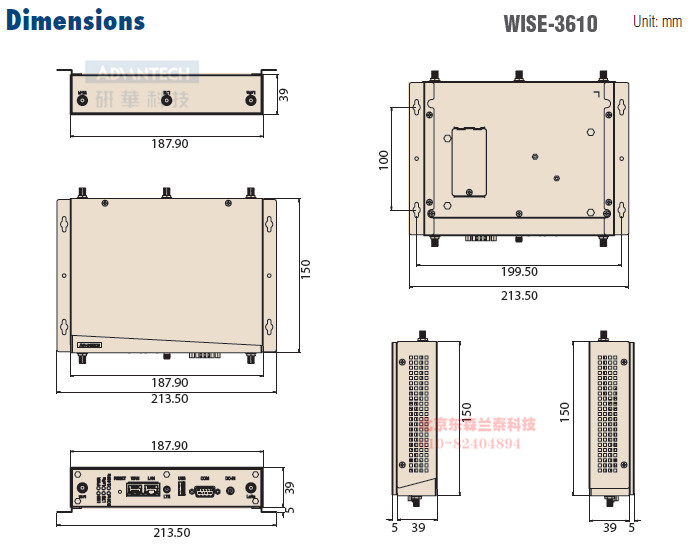

尺寸(单位:mm)




I/O Appearance
