主要特点
Qualcomm Atheros Quard-Core ARM Cortex-A7 SoC
Built-in Dual Band Concurrent Wi-Fi MU-MIMO (2x2)
WAN x1 / LAN x1 Gigabit Ethernet
Integration of Modbus TCP and Modbus RTU networks
IPSec / L2TP VPN Traffic Encryption
Rich Network Scanrio by S/W Configuration
Modularization hardware design
OpenWRT BSP embeded
Web UI user interface
|
|
产品介绍
WISE-3620 is Qualcomm ARM Cortex A based hardware platform, which is operating at OpenWRT, described as a Linux distribution for embedded devices. The Advantech WISE-3620 Industrial Router is Advantech IoT gateway design for smart city, Industrial 4.0 applications, even those in harsh environment, leveraging wireless sensor technology.This IoT gateway can aggregate both the wireless sensor networks (WSN), including 802.11AC MU-MIMO Technology, wired sensors and ties them into an IP network. With modular slot design, it can agilely adapt to a variety of wireless technologies at regional RF bands, wireless communication protocol by various uplink requirement and quickly go to market.

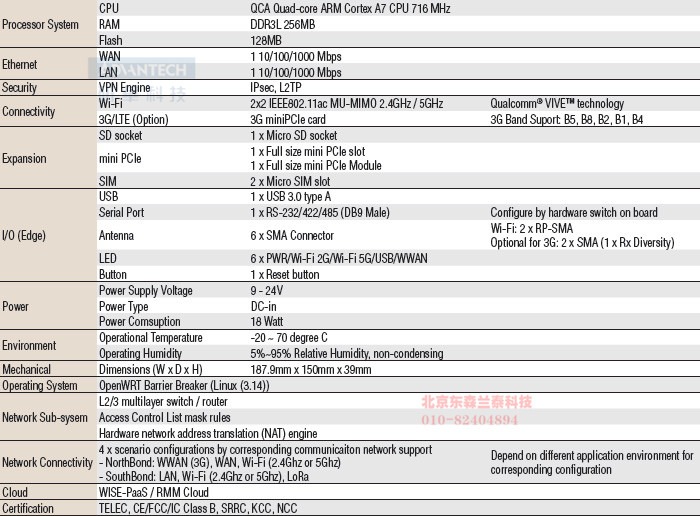

规格
订货信息
|
Ordering Information |
|
P/N |
Description |
|
WISE-3620 |
WISE-3620 802.11AC MU-MIMO WiFi Engineering Sample |
|
Related Models |
|
|
Model Name |
Description |
|
WISE-1520ITB-TDA1E |
WISE-1520 M2.COM Wi-Fi module |
|
WISE-1530ITB-SDA10 |
WISE-1530 M2.COM WIFI/BLE module |
|
Optional Items |
|
|
Part No. |
Description |
|
1700001524 |
Power Cable 3-pin 180cm, USA type |
|
170203183C |
Power Cable 3-pin 180cm, Europe type |
|
170203180A |
Power Cable 3-pin 180cm, UK type |
|
1700008921 |
Power Cable 3-pin PSE Mark 183cm |
|
1750008424-01 |
3G/LTE Antenna Dipole 4dBi Full Band |
|
1750008669-01 |
3G/LTE RX Diversity Antenna Cable IPEX to IPEX Connector |
|
968EMW0093 |
Mini PCIE HSPA 3G Card with Rx Diversity |

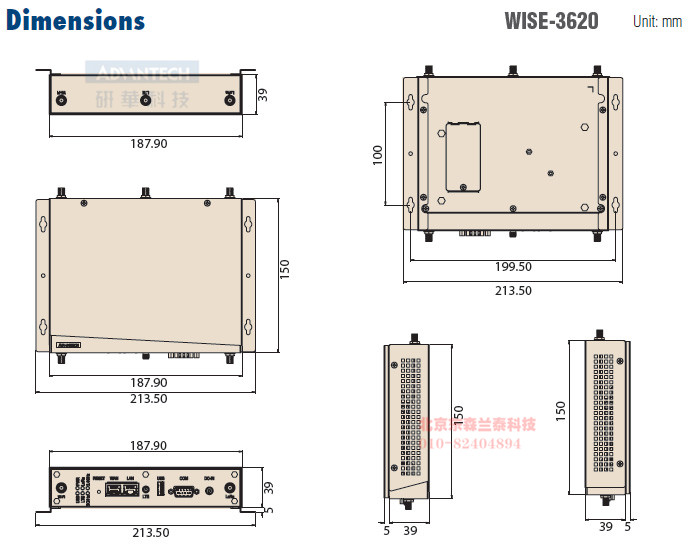

尺寸(单位:mm)
I/O Appearance
|
