DVP视频采集卡

DVP-7640E



主要特点

Compatible with Windows 8.1
8-channel composite video inputs with H.264 hardware compression
30/25fps (NTSC/PAL) at up to full D1 resolution for each channel of display
30/25 fps (NTSC/PAL) at up to D1+CIF dual stream resolution for each channel of recording
Free bundled recording & CMS software
PCIe x4 host interface
Supports Watchdog function
Windows/Linux OS supported

产品介绍

8/-ch H.264 PCIe Video Capture Card with SDK

研华利用软件与硬件压缩以及多种计算机主机接口 (从 USB 到 PCI、PCIe、PCI 104 及迷你适配卡),提供完整的工业级 SD (标准画质) 与 HD (高画质) 模拟影像采集卡。 研华的工业级采集卡支持各种输入接口,包括 YPbPr、SDI、HDMI、DVI、BNC 及 RCA。DVP-7640E is a PCIe-bus, hardware compression video capture card with 8 analog video and 8 audio inputs. DVP-7640E supports H.264 compression format at up to full D1 resolution at real-time frame rate (30/25fps) for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7640E is an ideal solution for various video capture applications or video surveillance.


规格

Versatile SDK Support (For Windows Only)
Advantech provides software development kit (SDK), a set of development tools that allows a software engineer to integrate video capture modules into different types of system. Functions include video recording, playback and instant preview.
ƒƒ Software Library
ƒƒ SDK Manual
ƒƒ Sample Program


订货信息

P/N  Description
DVP-7640E 8-ch H.264 PCIe Video Capture Card with SDK

北京东森兰泰科技有限公司



电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com


配料包

Item Amount
DVP-7640E/ DVP-7650E Capture Card 1 (piece)
Audio/Video cable (DVI-I male header) 1(7640E) (piece)
Watchdog Cable (Option) 1 (piece)

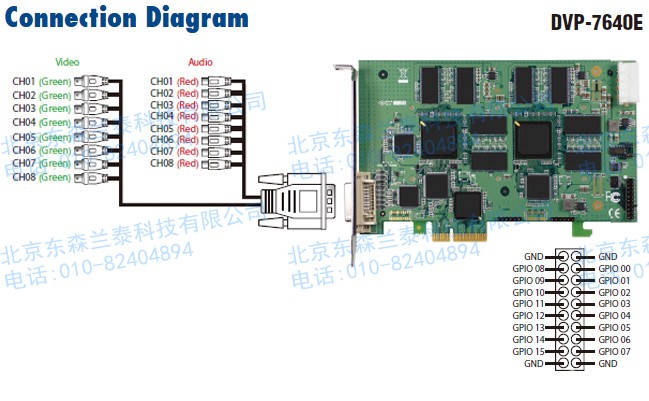

产品图片及框图
