产品介绍
研华的电视墙控制器专为电视墙应用而设计，已通过 Matrox 实验室的严格验证。 视频服务器标榜 Mura MPX 系列兼容性及工业可靠性，提供最佳的视频服务器服务。Intel® Xeon® E5-2400 Video Wall Controller, Supporting 8-output Video Wall

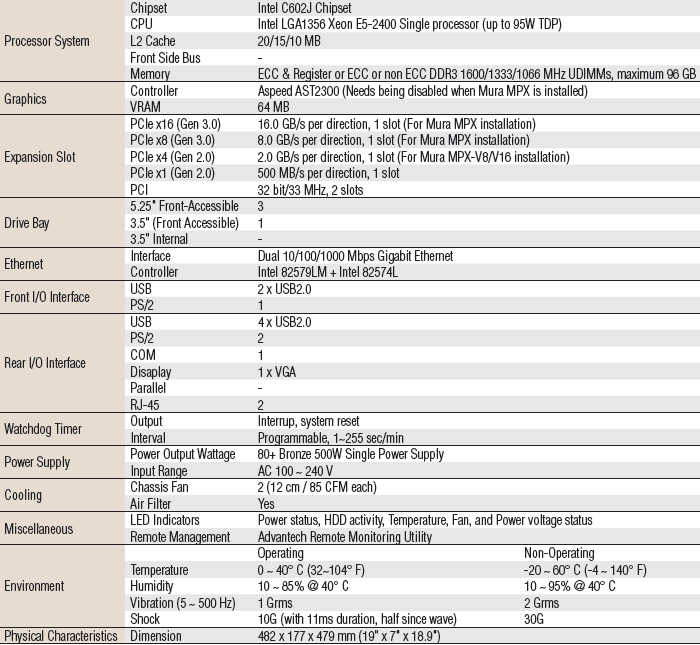

规格
订货信息
| 料号 | 说明 | ||
| AVS-240-00A1E | 4U Rackmount Xeon E5-2400 Video Wall Controller Supporting Dual Matrox Mura MPX | ||
| 1960055362N011 | Cooler for Xeon E5-2400 series CPU with TDP Up To 95W | ||
| Note: Purchasing this CPU cooler is a must, other brand CPU cooler may result in compatibility issue. | |||
| Optional Parts | |||
| Item | Advantech P/N | ||
| Mobile rack for converting dual 5.25" drive bays to three 3.5" SAS/SATA HDD trays | IPC-DT-5230E | ||
| Mobile rack for converting a 3.5" drive bay to dual 2.5" SATA HDD trays | IPC-DT-3120E | ||
| Mobile rack for converting a 5.25" drive bay to four 2.5" SAS/SATA HDD trays | 96RACK-5SS-CAGE-CR | ||
| SATA cable with lock | 1700003194 | ||
| ACP-4000 rail kit | 9680006905 | ||
| HD Audio-Card | PCA-AUDIO-HDA1E(Occupying 1 expansion slot) | ||
| Note: | |||
| 1. To support 2 2.5” SATA HDDs RAID with on-board RAID: 1700003194 x 2 + IDT-3120E x 1 | |||
| 2. To support 3 3.5” SATA HDDs RAID with on-board RAID: 1700003194 x 3 + IDT-5230E x 1 | |||
| 3. To support 4 2.5” SATA HDDs RAID with on-board RAID: 1700003194 x 4 + 96RACK-5SSCAGE-CR x 1 | |||
| System Contents | |||
| Items | Advantech P/N | ||
| AVS-240 Bare-Bone System | N/A | ||
| Driver CD | 2066820I00 | ||
| Note: CPU cooler needs to be purchased separately. | |||
| Compatible Processors | |||
| Advantech P/N | Description | ||
| 96MPXE-1.8-15M13T | XEON 1.8G 15M 1356P 6CORE E5-2428L(G)- Sandy bridge | ||
| 96MPXE-1.8-20M13T | XEON 1.8G 20M 1356P 8CORE E5-2448L(G)- Sandy bridge | ||
| 96MPXE-2.0-10M13T | XEON 2.0G 10M 1356P 4CORE E5-2418L(G)- Sandy bridge | ||
| Validated Matrox Mura Cards | |||
| Advantech P/N | Model | Output | Input |
| 96VG-2G-PE-MA | Mura MPX-4/0 | 4 | 0 |
| 96VG-2G-PE-MA1 | Mura MPX-4/2 | 4 | 2 |
| 96VG-2G-PE-MA2 | Mura MPX-4/4 | 4 | 4 |
| 96VG-1G-PE-MA | Mura MPX-SDI | 2 | 2 |
| 96VG-128M-PE-MA | Mura MPX-V8 | 0 | 8 |
| 96VG-256M-PE-MA | Mura MPX-V16 | 0 | 16 |
| Validated OS | |||
| Advantech P/N | OS for Embedded System | ||
| 968QS28F08 | Windows Server® 2008 with Hyper-V™ Standard 64 Bit | ||
| 968QSV2845 | Windows Server® 2008 without Hyper-V™ Standard 64 Bit | ||
| 968QW7PROE | Windows® 7 Professional 64 Bit | ||

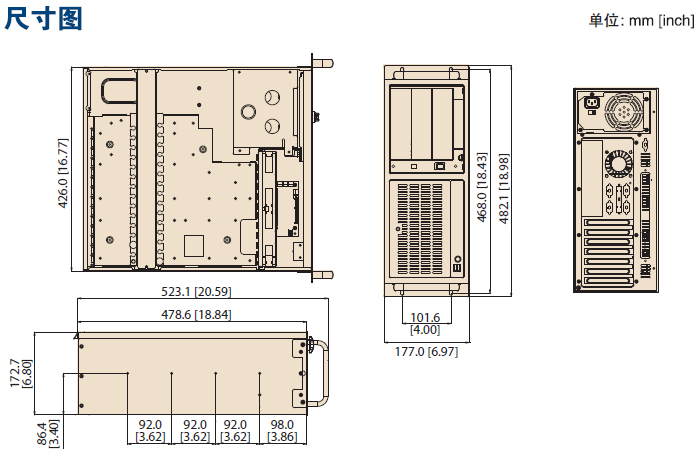

尺寸(单位:mm)

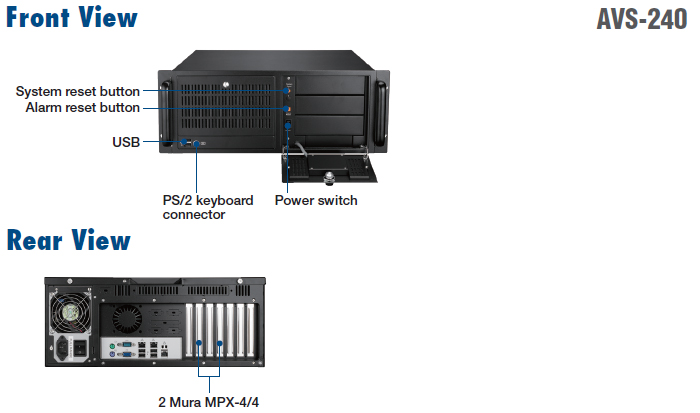

I/O Appearance
