产品介绍
研华的电视墙控制器专为电视墙应用而设计，已通过 Matrox 实验室的严格验证。 视频服务器标榜 Mura MPX 系列兼容性及工业可靠性，提供最佳的视频服务器服务。4U4Desktop/Wallmount Intel® Xeon® E3-1200 Video Wall Controller, Supporting 8-output Video Wall

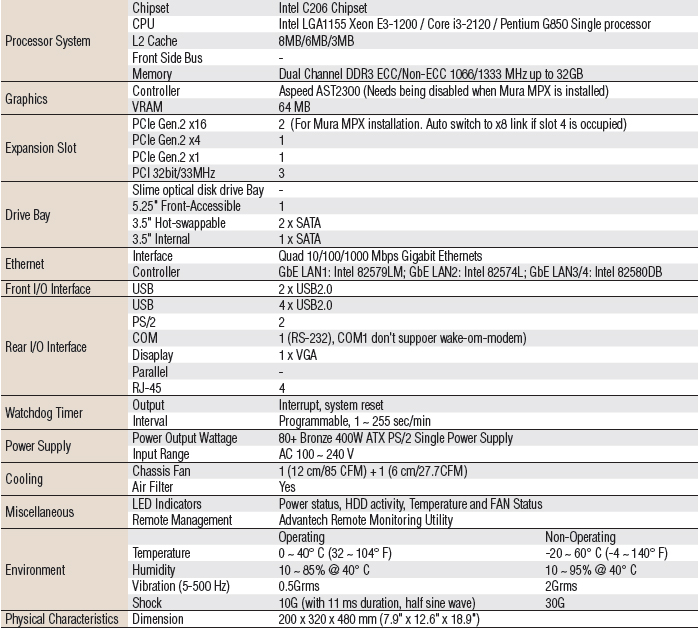

规格
订货信息
| 料号 | 说明 | ||
| AVS-290-00A1E | Desktop/Wall-mount Xeon E3-1200 Video Wall Controller supporting dual Mura MPX | ||
| 1960047669N001 | Cooler for Xeon E3-1200 series CPU with TDP Up To 95W | ||
| Note: Purchasing this CPU cooler is a must, other brand CPU cooler may result in compatibility issue. | |||
| Optional Accssories | |||
| Item | Advantech P/N | ||
| 2130006149S000 | Filter cover | ||
| PCA-AUDIO-HDA1E | HD Audio-Card (Occupying 1 expansion slot) | ||
| Compatible Processors | |||
| Advantech P/N | Description | ||
| 96MPXE-3.1-6M11T | XEON 3.1G 6M 1155P 4CORE E3-1225(G) | ||
| 96MPXE-3.4-8M11T | XEON 3.4G 8M 1155P 4CORE E3-1275(G) | ||
| 96MPI3-3.3-3M11T | CORE 3.3G 3M 1155P 2CORE I3-2120(G) | ||
| Validated OS | |||
| Advantech P/N | OS for Embedded System | ||
| 968QS28F08 | Windows Server® 2008 with Hyper-V™ Standard 64 Bit | ||
| 968QSV2845 | Windows Server® 2008 without Hyper-V™ Standard 64 Bit | ||
| 968QW7PROE | Windows® 7 Professional 64 Bit | ||
| Validated Matrox Mura Cards | |||
| Advantech P/N | Model | Output | Input |
| 96VG-2G-PE-MA | Mura MPX-4/0 | 4 | 0 |
| 96VG-2G-PE-MA1 | Mura MPX-4/2 | 4 | 2 |
| 96VG-2G-PE-MA2 | Mura MPX-4/4 | 4 | 4 |
| 96VG-1G-PE-MA | Mura MPX-SDI | 2 | 2 |
| 96VG-128M-PE-MA | Mura MPX-V8 | 0 | 8 |
| 96VG-256M-PE-MA | Mura MPX-V16 | 0 | 16 |
| System Contents | |||
| Item | Advantech P/N | ||
| AVS-290 Bare-Bone System | N/A | ||
| Driver CD | 2066S78100 | ||
| Note: CPU cooler needs to be purchased separately. | |||

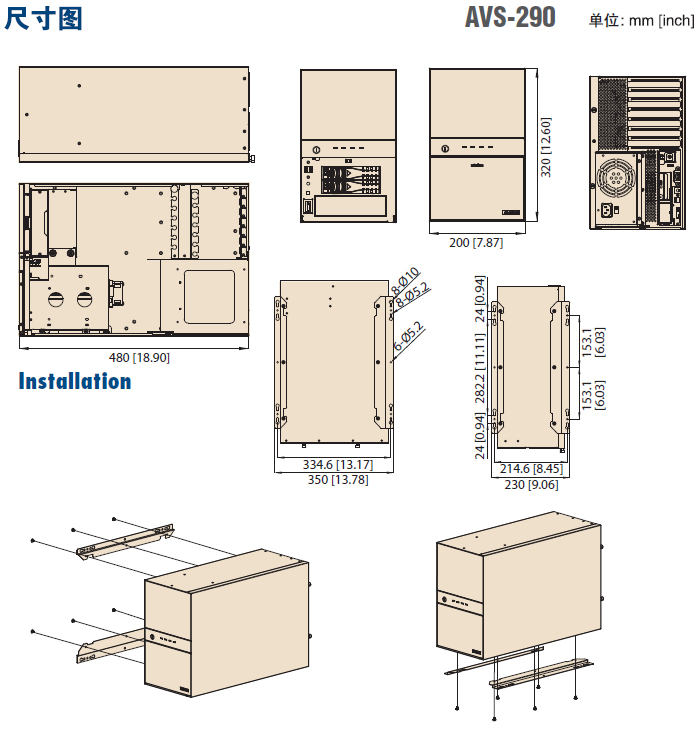

尺寸(单位:mm)

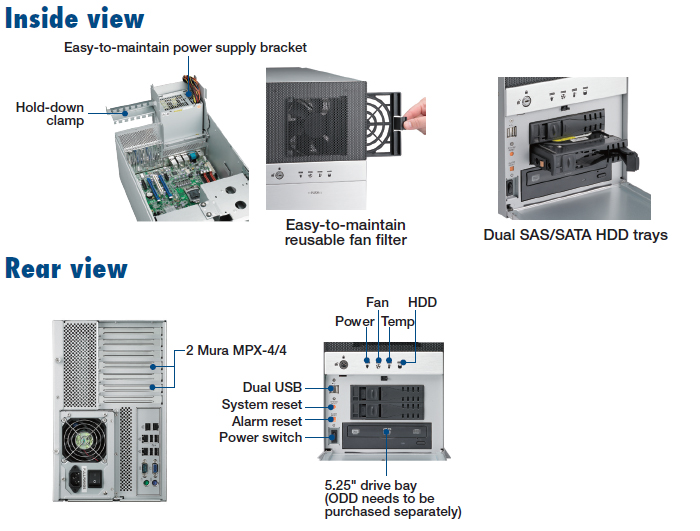

I/O Appearance
