主要特点 Motion Studio: Rapid application development tool Programmable with BASIC language 4-axis embedded motion controller with 32-ch digital I/O RS-232, RS-485, and TCP/IP support Quick configuration user interface Programmable encryption to protect intellectual property Built-in quick programming assistant C-integration: External DLL interface 2/3-axis linear, 2/3-axis circular, and helical interpolation 2-axis position comparison trigger, high-speed latch

The MAS-3245-LG is a PC-based embedded motion controller based on the Motion Studio software development tool. It features a range of built-in debugging tools and can be programmed using BASIC programming language. The unit is suitable for various applications and can greatly shorten the equipment development cycle.
The MAS-3245-LG is integrated with a high-performance digital signal processor and field-programmable gate array. It can easily calculate trajectories, perform real-time motion control, and provide I/O processing support functions such as linear, circular, and helical interpolation. Other features include a multiaxis comparison trigger, high-speed position latch, and T/S-curve acceleration/deceleration support. Additionally, with Motion Studio, users can easily complete system configuration and diagnosis, enabling the simple and fast realization of complex motion control functions.

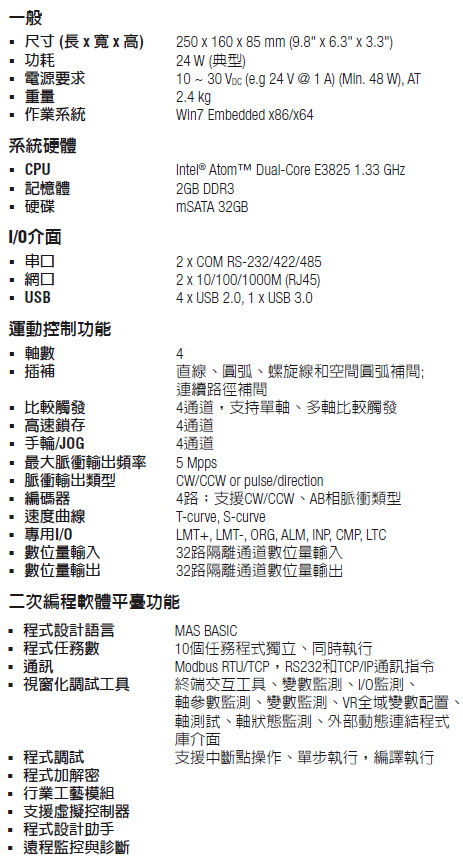

规格

订货信息

尺寸(单位:mm)

I/O Appearance
