产品介绍
双LGA2011 Intel®Xeon E5-2600(v2）EATX 服务器板卡，支持DDR3，3PCIe x16 1 PCIex8（Gen 3.0），PME 支持

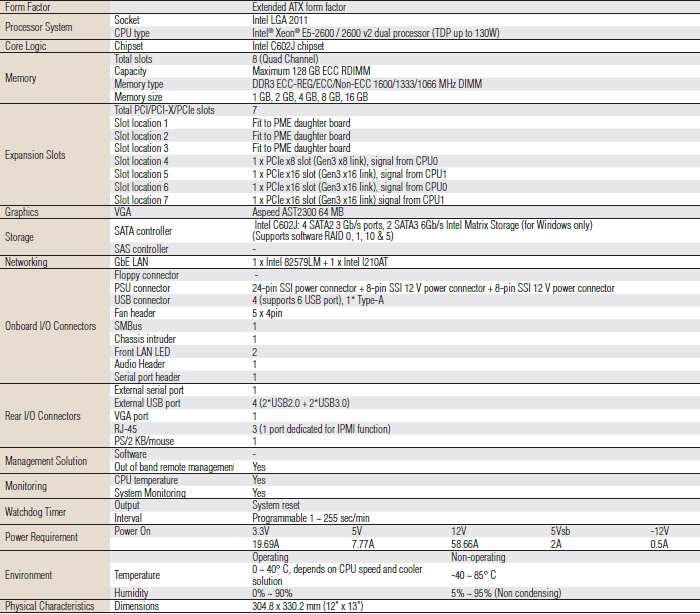

规格
订货信息
| 料号 | 芯片组 | VGA芯片 |
| ASMB-922-00A2E | C602J | AST 1300 |
| ASMB-922I-00A2E | C602J | AST 2300 |
| 包装清单 | ||
| 料号 | 说明 | |
| 2066923101 | 驱动光盘 | |
| 2006923110 | 使用手册 | |
| 1700003194 | SATA 数据线 | |
| 1703150102 | SATA 数据线 | |
| 1700019748 | CPU 电源线(8P) | |
| 1960052312T010 | I/O 挡片 | |
| 可选配件 | ||
| 料号 | 说明 | |
| ASMB-FF3P8-12A1E | PME card with 1 PCIe x8 slot (x8 link) and 1 PCIe x8 slot (x4 link) and 1 PCI slot | |
| ASMB-FF3PX-12A1E | PME card with 2 PCI-X and 1 PCI slots | |
| ASMB-FF20F-02A1E | PME card with 2 PCIe x16 slots | |
| ASMB-FF208-02A1E | PME card with 2 PCIe x 8 slots | |
| ASMB-FF404-04A1E | PME card with 4 PCIe x4 slots (Only fit to HPC-7400 chassis) | |
| PCA-AUDIO-HDA1E | HD Audio-card | |
| PCA-TPM-00A1E | TPM Module | |
| 1960063011N001 | LGA2011 CPU cooler for 2U/4U chassis (TDP up to 130W) | |
| 1960065591N001 | LGA2011 CPU0 heatsink for 1U chassis (TDP up to 130W) | |
| 1960065593N001 | LGA2011 CPU1 heatsink for 1U chassis (TDP up to 130W) | |
| 1700002204 | Dual port USB cable (27 cm) with bracket | |
| 1700008461 | Four port USB cable (30.5 cm) with bracket | |
| 1701090401 | COM port cable with bracket | |
尺寸(单位:mm)

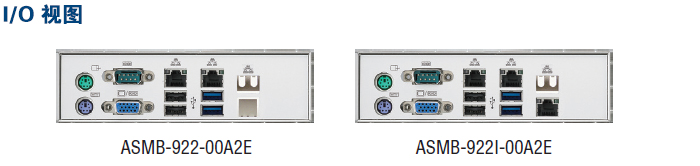

I/O Appearance
