主要特点
Dual LGA 2011-R3 Intel® Xeon® E5-2600 v3/V4 processors
16x DDR4-2133 RDIMMs for a maximum of 512 GB
Supports up to 16x hot-swappable 2.5" NVMe/SAS/SATA drives
Intelligent Platform Management Interface (IPMI) support
Supports 2x PCle x8 cards for I/O expansion
1100 W 1+1 redundant power supply with 80 PLUS Platinum certification
|
|
产品介绍
ASR 3000 Series is the 2U 12-bay Storage Appliance with Reliable Data Protection and Backup Solution.1U Rackmount dual Intel® Xeon® E5-2600 v3/v4 NVMe Storage Server, supporting up to 16x 2.5" NVMe SSD and 2x PCIe Gen III x8 slot

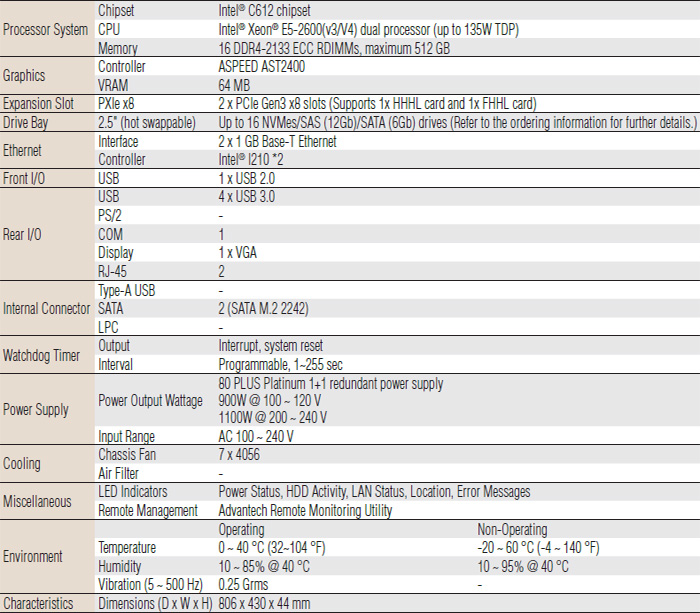

规格
订货信息
|
Advantech P/N |
2.5" Front HDD Bay |
Second Row 2.5" HDD Bay |
|
ASR-3100PP-R11A1E |
X8 NVMe |
X8 NVMe + SATA (SAS optional) |
|
ASR-3100PT-R11A1E |
X8 NVMe |
X8 SATA (SAS optional) |
|
ASR-3100SS-R11A1E |
X8 SAS+SATA |
X8 SAS + SATA (x2 NVMe optional) |
|
Note: |
|
|
|
1. One slot is occupied by the SAS12G RAID card. |
|
|
2. For quality assurance purposes, the product must be sold as a complete system with the CPU, memory, and drives fully integrated and tested. |
|
Package Contents |
|
|
|
Part Number |
Description |
Quantity |
|
CPU0 heatsink |
Heatsink for E5-2600 series |
1 |
|
CPU1 heatsink |
Heatsink for E5-2600 series |
1 |
|
Rail kit |
1U slide rail kit |
1 |
|
CMA |
Cable management arm |
1 |
|
Driver CD |
ASR-3100 CD with drivers and user manual |
1 |
|
Startup manual |
ASR-3100 startup manual |
1 |
|
Compatible NVMe Drives |
|
|
Part Number |
Description |
|
|
96FD25-V2TB-IN7 |
Intel P3700 2.5" NVMe, 2.0TB, MLC |
|
96FD25-V1.6TB-IN7 |
Intel P3700 2.5" NVMe, 1.6TB, MLC |
|
96FD25-800-IN7 |
Intel P3700 2.5" NVMe, 800GB, MLC |
|
96FD25-400-IN7 |
Intel P3700 2.5" NVMe, 400GB, MLC |

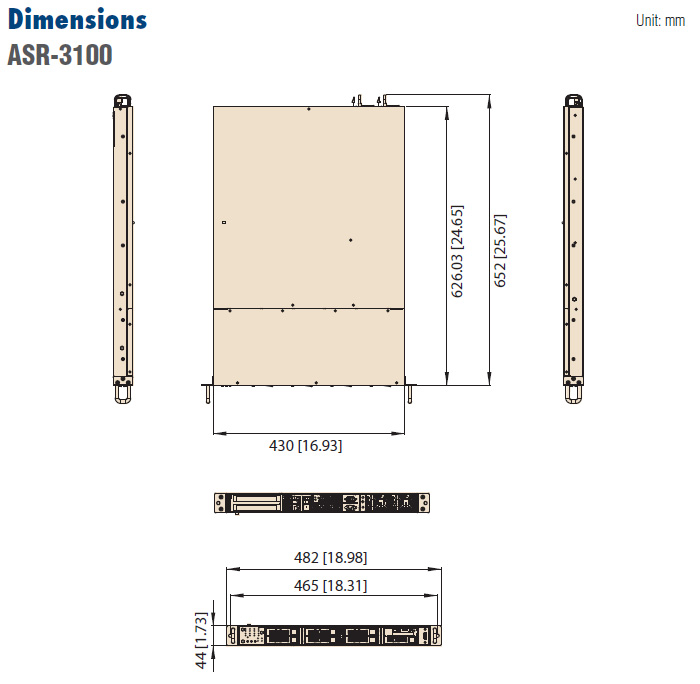

尺寸(单位:mm)
|
