产品介绍
1U Rackmount Server Chassis for EATX Server board with 8 x 2.5" Hot-swap Drive Bays and 1 FH/FL PCI-E x16 Expansion Slot

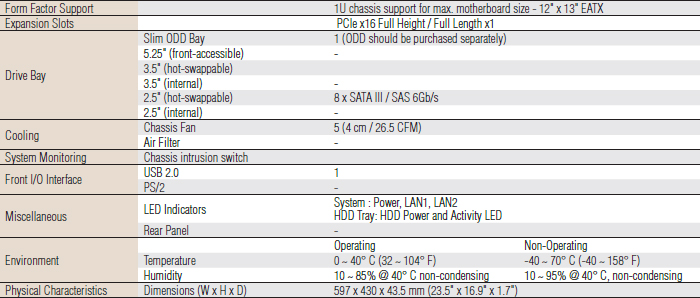

规格
订货信息
| Part Number | Description |
| HPC-7180-00A1E | 1U HPC chassis without Power supply |
| 1757004188-01 | (1+1) 100-240V 650W 1U redundant power supply |
| System Contents | |
| Items | Quantity |
| Hot-Swap 2.5" HDD tray (Pre-install) | 8 |
| 1U PCIe x16 to PCIe x16 Riser Card (Pre-install) | 1 |
| Accessory Box (2.5" HDD Screws; Slime ODD Backplane) | 1 |
| 1U Rail Kit | 1 |
| Optional Accessories | |
| Part Number | Description |
| 96CB-SAS-SATA-4P1 | Mini-SAS Cable kit for add-on SAS RAID card* |
| 19Z0000406T000 | 1U IO Shield for ASMB-781/820/920/782 |
| * Note: When using add-on RAID Card with Mini-SAS connector(s), purchasing 96CB-SAS-SATA-4P1 cable is a MUST. Single port RAID Card needs 1 piece and dual port needs 2 piece. | |

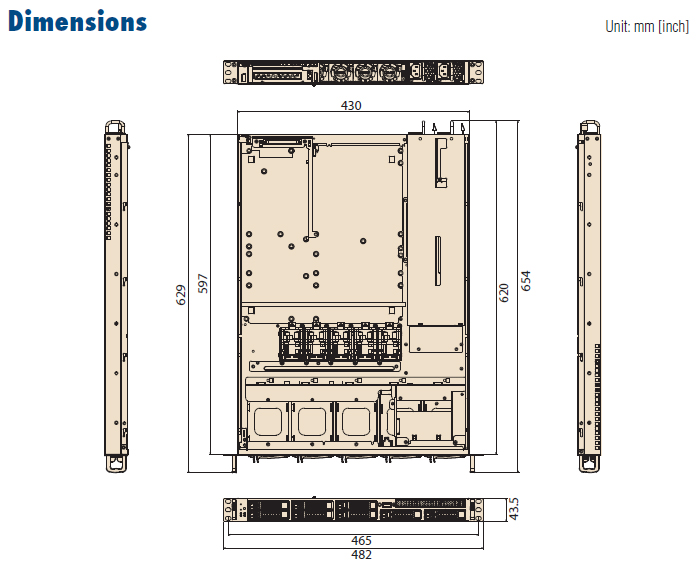

尺寸(单位:mm)

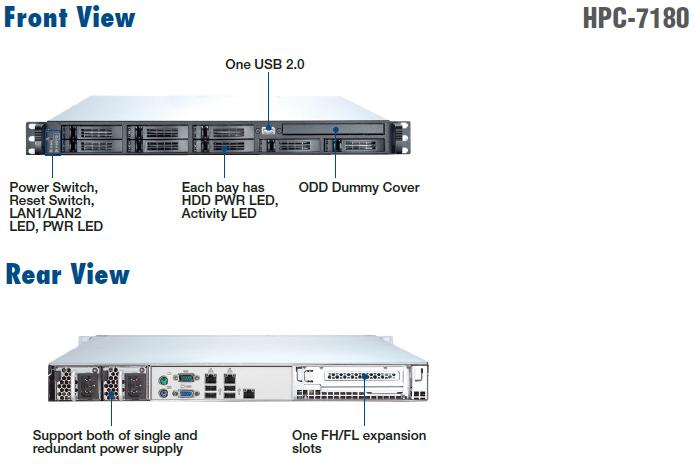

I/O Appearance
