主要特点
Dual LGA 2011-R3 Intel® Xeon® E5-2600 v3/V4 processors
16x DDR4-2133 RDIMMs for a maximum of 512 GB
Supports 8x hot-swappable 2.5" NVMe/SATA drives
Intelligent Platform Management Interface (IPMI) support
Supports 2x PCle x8 cards for I/O expansion
|
|
产品介绍
ASR 3000 Series is the 2U 12-bay Storage Appliance with Reliable Data Protection and Backup Solution.1U Rackmount Dual Intel® Xeon® E5-2600 v3/v4 Storage Server, with up to 8 2.5" NVMe SSDs and 2 PCIe Gen III x8 Slots

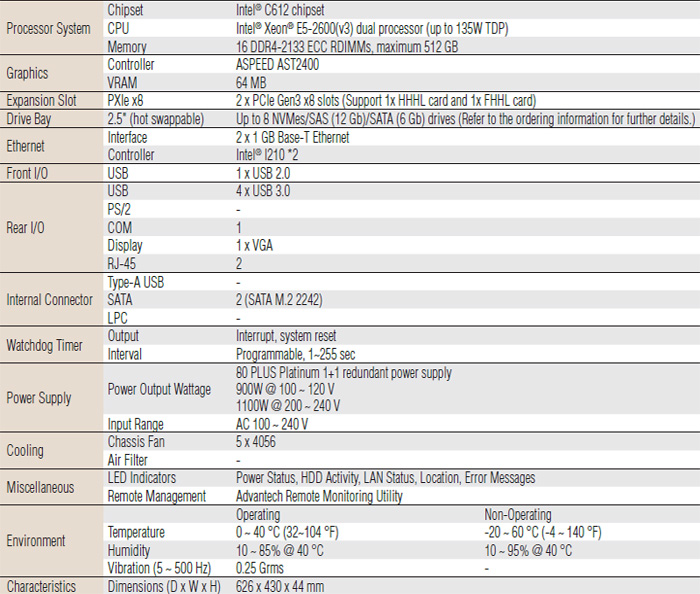

规格
订货信息
|
Advantech P/N |
2.5" Front HDD Bay |
|
|
SKY-4311P-R11A1E |
x8 NVMe+SATA (SAS is optional) |
|
|
*. For quality assurance purposes, the product must be sold as a complete system with the CPU, memory, and drives fully integrated and tested. |
|
Package Contents |
|
|
|
Part Number |
Description |
Quantity |
|
CPU0 heatsink |
Heatsink for E5-2600 series |
1 |
|
CPU1 heatsink |
Heatsink for E5-2600 series |
1 |
|
Rail kit |
1U slide rail kit |
1 |
|
Driver CD |
CD with drivers and user manual |
1 |
|
Startup manual |
Startup manual |
1 |
|
Compatible NVMe Drives |
|
|
Part Number |
Description |
|
|
96FD25-V2TB-IN7 |
Intel P3700 2.5" NVMe, 2.0TB, MLC |
|
|
96FD25-V1.6TB-IN7 |
Intel P3700 2.5" NVMe, 1.6TB, MLC |
|
|
96FD25-800-IN7 |
Intel P3700 2.5" NVMe, 800GB, MLC |
|
|
96FD25-400-IN7 |
Intel P3700 2.5" NVMe, 400GB, MLC |
|

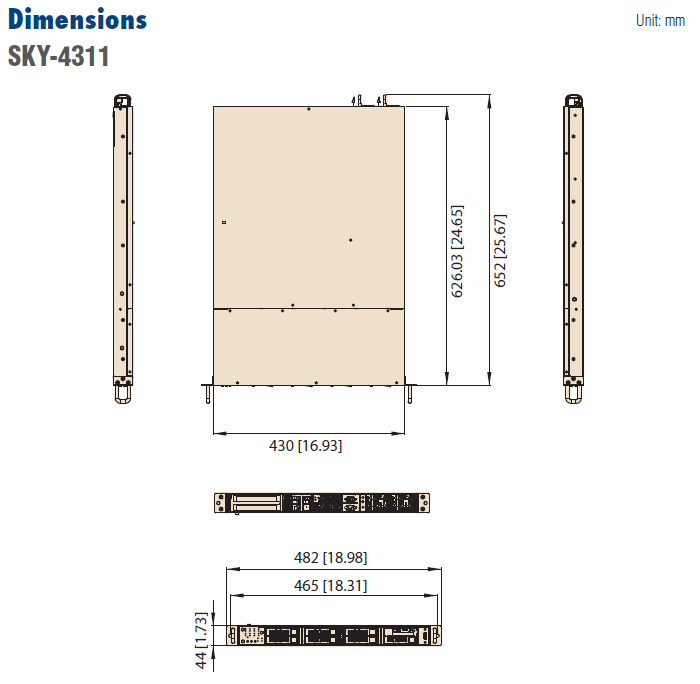

尺寸(单位:mm)
|
