ADAM-6000

ADAM-6256



主要特点

带自动旁路保护的菊花链
通过智能手机/平板电脑实现远程监控与控制
多个模块成组配置功能
DI/O LED指示灯
Modbus地址可由用户自定义
支持GCL与点对点功能的智能控制
支持多种协议:Modbus TCP, TCP/IP, UDP, HTTP, DHCP
支持Web语言:HTML 5, Java Script, XML
系统配置备份

产品介绍

支持Modbus TCP的16路隔离数字量输出模块

In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.


规格

Digital Output
Channels 16 (Sink Type)
Output Voltage Range 10 ~ 30 VDC
Normal Output Current 100 mA (Per Channel)
Pulse Output Up to 5kHz
Delay Output High-to-Low and Low-to-High
General
Ethernet 2-port 10/100 Base-TX (for Daisy Chain)
LED Indication 16 DO
Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Connector Plug-in 5P/15P Screw Terminal Blocks
Power Input 10 - 30 VDC (24 VDC Standard)
Watchdog Timer System (1.6 Seconds)
Communication (Programmable)
Protection Built-in TVS/ESD Protection
Power Reversal Protection
Over Voltage Protection: +/- 35 VDC
Isolation Protection: 2500 VDC
Power Consumption 3.2 W @ 24 VDC
Dimensions (W x H x D) 70 x 122 x 27 mm
Enclosure PC
Mounting DIN 35 Rail, Stack, Wall
Software
.NET Class Library (SDK) Windows and Windows CE Class Library, VB and VC# Sample Code for I/O Reading or Configuration and Communication
Adam/Apax .NET Utility Network Setting, I/O Configuration, Data Stream, P2P,GCL Configuration
Environment
Operating Temperature -10 ~ 70°C (14 ~ 158°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 20 ~ 95% RH (non-condensing)
Storage Humidity 0 ~ 95% RH (non-condensing)

订货信息

ADAM-6256 16-ch Isolated Digital Output Modbus TCP Module
Accessories
PWR-242 DIN-rail Power Supply (2.1A Output Current)
PWR-243 Panel Mount Power Supply (3A Output Current)
PWR-244 Panel Mount Power Supply (4.2A Output Current)
Software
PCLS-ADAMVIEW32 ADAMView Data Acquisition Software
PCLS-OPC/MTP30 OPC Server for Modbus/TCP protocol

尺寸(单位:mm)



特征

Daisy Chain Networking and Auto-Bypass Protection

Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet auto-bypss function supported, it prevents accidental power failure if one of the module’s unexpectedly shuts down.

Group Configuration Capability for Multiple Module Setup

To aid configuration and save time, engineers can configure and upgrade the firmware of multiple ADAM-6200s simultaneously.

Remote Monitoring and Control with Smart Phone

With support for HTML5, the ADAM-6200 can be monitored and controlled from any browser on mobile devices whilst in the field and when the engineer is connected to their network.

Peer-to-Peer

Modules will actively update the input channel status to specific output channels. Without dealing with the trouble of long distance wiring, users can define the mapping between a pair of modules.

Graphic Condition Logic

Users can define the control logic rules through graphical configuration Utility, and download defined logic rules to specific ADAM module. Then, it will execute the logic rules automatically just like a standalone controller.


Architecture

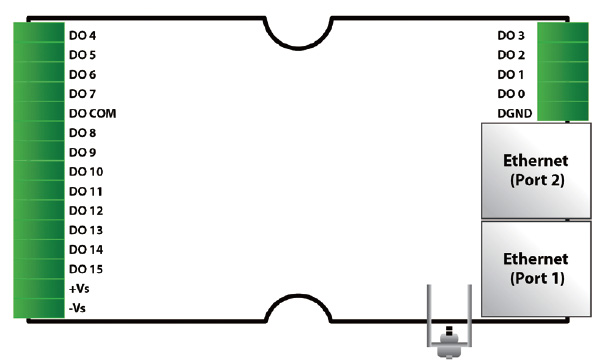

引脚分配
