ADAM-6266



主要特点

4-ch Relay Output, 4-ch DI, 2-port Ethernet
Daisy chain connection with auto-bypass protection
Remote monitoring and control with mobile devices
Group configuration capability for multiple module setup
Flexible user-defined Modbus address
Intelligent control ability by Peer-to-Peer and GCL function
Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
Web language support: XML, HTML 5, Java Script

产品介绍

支持Modbus TCP的4路继电器输出模块,带4路DI

In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.


规格

Relay Output
Channels 4 Form C
Contact Rating 250 VAC @ 5A
30 VDC @ 5A
Max. Switching Voltage 400 VAC
300 VDC
Breakdown Voltage 500 VAC (50/60Hz)
Max. Breakdown Capacity 1250 VA
Frequency of Operation 360 Operations/Hour with Load
72,000 oOperations/Hour without Load
Set/Reset Time 8 ms/8 ms
Mechanical Endurance > 15 x 106 Operations
Isolation between Contact 1000 Vrms
Insulation Resistance > 10 GΩ @ 500 VDC
Digital Input
Channels 4
Dry Contact Logic 0: Open
Logic 1: Closed to DI COM
Wet Contact Logic 0: 0 ~ 3 VDC or 0 ~ -3 VDC
Logic 1: 10 ~ 30 VDC or -10 ~ -30 VDC
(Dry/Wet Contact Decided by Switch)
Input Impedance 5.2 kW (Wet Contact)
Transition Time 0.2 ms
Frequency Input Range 0.1 ~ 3kHz
Counter Input 3kHz (32 bit + 1 bit Overflow)
Keep/Discard Counter Value when power off
Supports Inverted DI Status
General
Ethernet 2-port 10/100 Base-TX (for Daisy Chain)
LED Indication 4 RL + 4 DI
Protocol Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Connector Plug-in 5P/15P Screw Terminal Blocks
Power Input 10 - 30 VDC (24 VDC Standard)
Watchdog Timer System (1.6 Seconds)
Communication (Programmable)
Protection Built-in TVS/ESD Pprotection
Power Reversal Protection
Over Voltage Protection: +/- 35VDC
Isolation Protection: 2500 VDC
Power Consumption 4.2 W @ 24 VDC
Dimensions (W x H x D) 70 x 122 x 27 mm
Enclosure PC
Mounting DIN 35 Rail, Stack, Wall
Software
.NET Class Library (SDK) Windows and Windows CE Class Library, VB and VC# Sample Code for I/O Reading or Configuration and Communication
Adam/Apax .NET Utility Network Setting, I/O Configuration, Data Stream, P2P,GCL Configuration
Environment
Operating Temperature -10 ~ 70°C (14 ~ 158°F)
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Operating Humidity 20 ~ 95% RH (non-condensing)
Storage Humidity 0 ~ 95% RH (non-condensing)

订货信息

ADAM-6266 4-ch Relay Output Modbus TCP Module with 4-ch DI
Accessories
PWR-242 DIN-rail Power Supply (2.1A Output Current)
PWR-243 Panel Mount Power Supply (3A Output Current)
PWR-244 Panel Mount Power Supply (4.2A Output Current)
Software
PCLS-ADAMVIEW32 ADAMView Data Acquisition Software
PCLS-OPC/MTP30 OPC Server for Modbus/TCP protocol

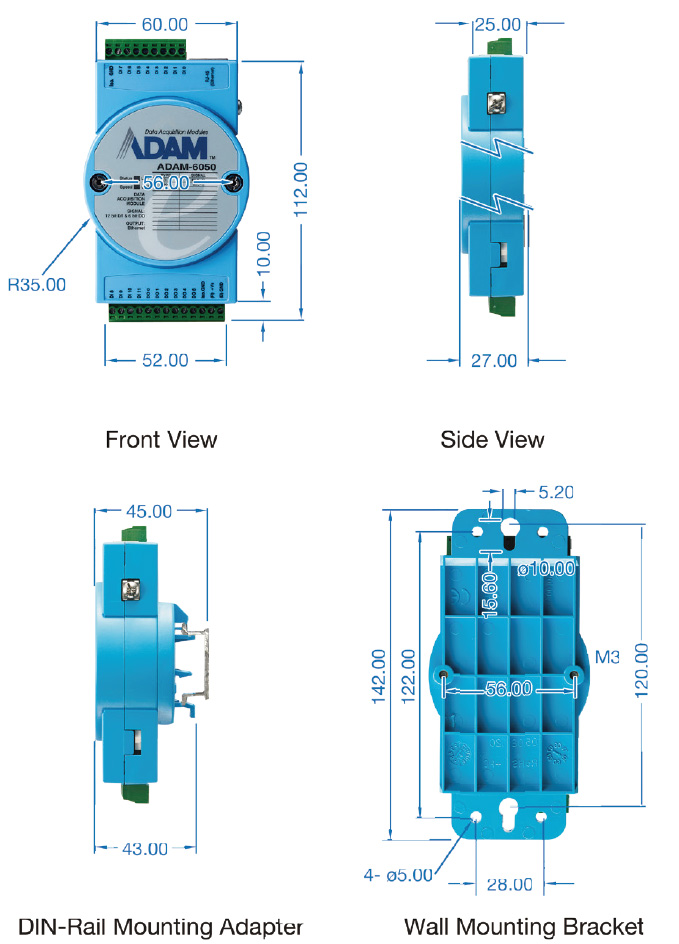

尺寸(单位:mm)



特征

Daisy Chain Networking and Auto-Bypass Protection

Daisy chain connectivity offers flexible cabling and space saving capabilities. With Ethernet auto-bypss function supported, it prevents accidental power failure if one of the module’s unexpectedly shuts down.

Group Configuration Capability for Multiple Module Setup

To aid configuration and save time, engineers can configure and upgrade the firmware of multiple ADAM-6200s simultaneously.

Remote Monitoring and Control with Smart Phone

With support for HTML5, the ADAM-6200 can be monitored and controlled from any browser on mobile devices whilst in the field and when the engineer is connected to their network.

Peer-to-Peer

Modules will actively update the input channel status to specific output channels. Without dealing with the trouble of long distance wiring, users can define the mapping between a pair of modules.

Graphic Condition Logic

Users can define the control logic rules through graphical configuration Utility, and download defined logic rules to specific ADAM module. Then, it will execute the logic rules automatically just like a standalone controller.

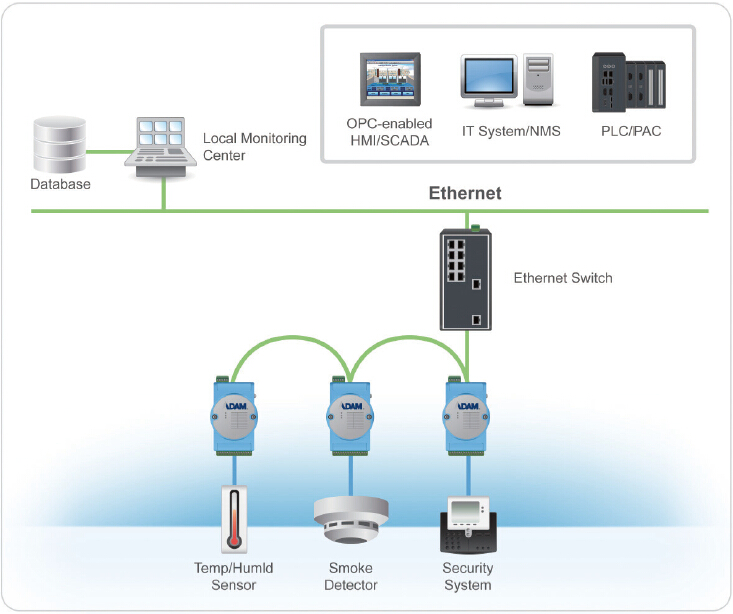

Architecture




引脚分配
