APAX

APAX-5402L



主要特点

2x full function combo slots (Include 2x High Speed Connector + 2x APAX Connector)
Bypass 24VDC to the right side APAX connector for APAX-5002 expansion
EtherIO driver technology to replace the DSP function in the traditional backplane



产品介绍

APAX-5402L.html' target='_blank'>APAX-5402L is the backplane module for APAX-5580, supports 2 x Combo slots (High Speed Connector + APAX IO Connector) and right hand side connector for APAX-5002 expansion. It provides more flexibility for user’s application with APAX-5430 / APAX-5435/APAX-5490 as well as all APAX IO modules. However, if APAX IO modules are not needed,APAX-5402-E2A0AE is a cost effective option to extend 2x High Speed Connector for APAX-5490/APAX-5430/APAX-5435 expansion.

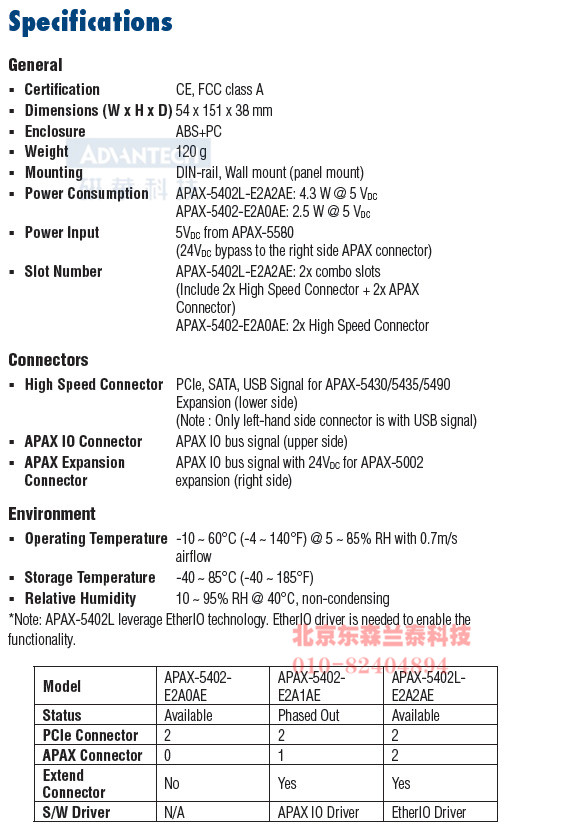

规格


订货信息

APAX-5402-E2A0AE 2 expansion slots to support APAX-5490, APAX-5435, APAX-5430
APAX-5402L-E2A2AE 2 expansion slots with APAX bus (EtherIO)
