USB 采集控制模块

SRP-FPV240-AE



主要特点

Verified with ACP ThinManager, ACP BIOS Enabled
2 simultaneous, independent MultiMonitor digital video ports: 1 x HDMI, 1 x DisplayPort, 1 x GbE, 4 x USB 2.0, 1 x RS-232, 1 x RS-485
Daisy-Chain for Ethernet with auto-bypass protection enabled
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design



产品介绍

MultiMonitor ACP Ready ThinClient, 1x HDMI, 1x DP.iFactory系列整合应用解决方案专注于与智能制造/工业4.0技术紧密结合的高度自动化行业市场,如汽车装配、食品饮料和家用电子工业等。Realize the true value of thin client and centralized management technologies with Advantech’s ThinManager Compatible industrial thin clients. ACP’s ThinManager, the leading thin client solution for the factory floor, and Advantech’s industrially hardened thin client hardware provide a unique solutions for centralized management of factory floor applications. The SRP-FPV240-AE is the perfect ThinManager MultiMonitor industrial thin client for applications where flexibility and cost savings of 2 monitors per client is desired. The SRP-FPV240-AE also supports the newest digital video interfaces such as: DisplayPort and HDMI.

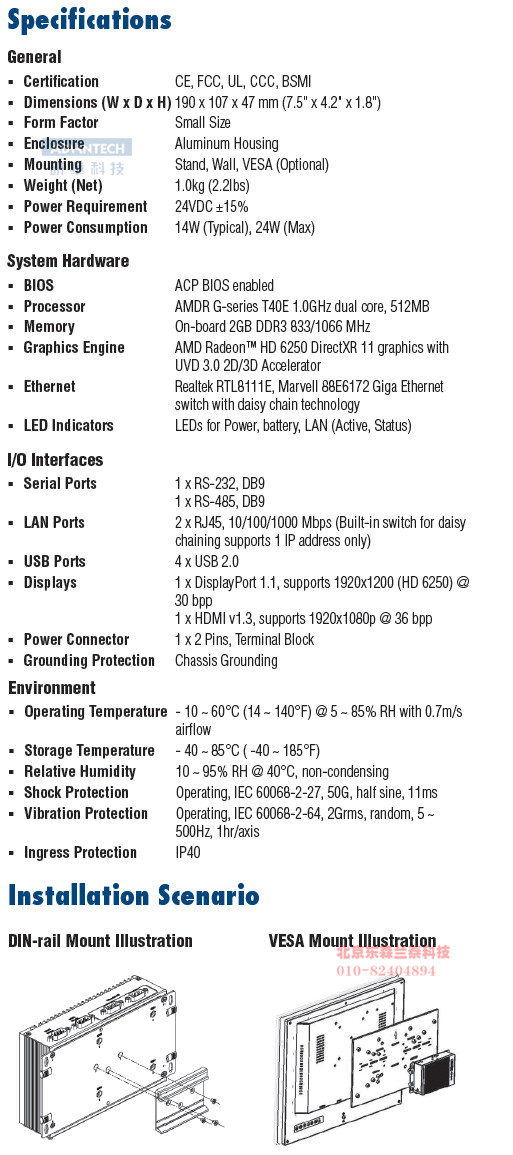

规格


订货信息

Ordering Information
SRP-FPV240-AE  UNO-2362G-T2AE, ACP Ready ThinClient, HDMI x 1,DP x 1
Optional Accessories
96PSA-A60W24T2  100-240V 60W 24V 2.5A Power Adapter
1702002600  Power Cable US Plug 1.8 M (Industrial Grade)
1702002605  Power Cable EU Plug 1.8 M (Industrial Grade)
1702031801  Power Cable UK Plug 1.8 M (Industrial Grade)
1700000596  Power Cable China/Australia Plug 1.8 M (Industrial Grade)
UNO-2000G-DMKAE  UNO-2000 DIN Rail Kit
UNO-2000G-VMKAE  UNO-2000 VESA Mount Kit
Monitor Cabling Accessories
*Available in America
XACP-10DP-DPHM-10  DisplayPort to HDMI Cable, 10ft
XACP-10DP-DPDVI-10  DisplayPort to DVI Cable, 10ft
XACP-10HM-15128-03  HDMI to DVI Cable, 10ft
XACP-10DP-DPDP-10  DisplayPort to DisplayPort Cable, 10ft
XACP-10HM-128V4-10  HDMI to HDMI Cable, 10ft

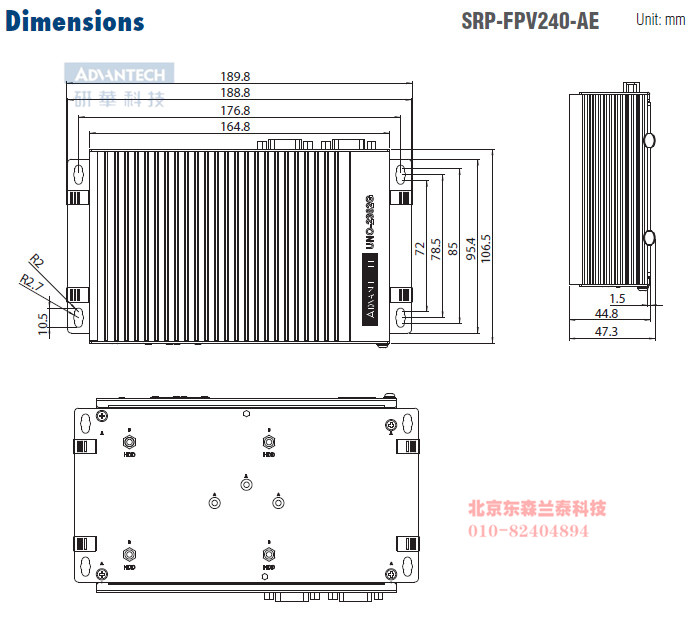

尺寸(单位:mm)

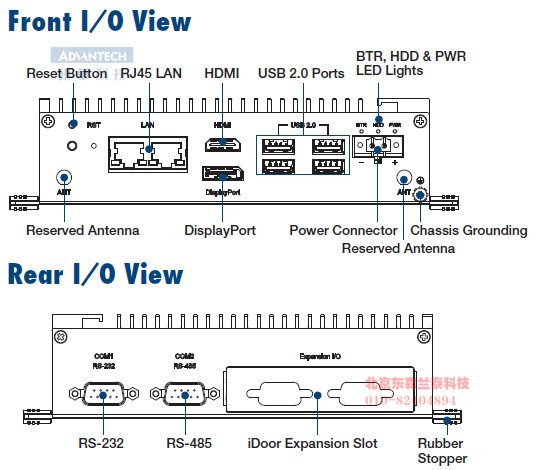

I/O Appearance
