USB 采集控制模块

SRP-FPV241-AE



主要特点

Verified with ACP ThinManager, ACP BIOS Enabled
Intel® Core™ i3 Processor up to 2.6 GHz with 8GB DDR4 Memory
6 simultaneous, independent MultiMonitor video ports: 5 x HDMI, 1 x DP*
Supports 4K Ultra-HD video outputs**
2 x GbE, 4 x USB 3.0, 4 x USB2.0, 4 x RS-232/422/485
Independent LANs support Ethernet Redundancy allowing the terminal to activate and switch to the backup port in a seamless fashion.
Compact Fanless Design
Chassis Grounding Protection
** 4 x HDMI and 1 x DP ports support 4K resolution



产品介绍

iFactory系列整合应用解决方案专注于与智能制造/工业4.0技术紧密结合的高度自动化行业市场,如汽车装配、食品饮料和家用电子工业等。AdRealize the true value of thin client and centralized management technologies with Advantech’s ThinManager Compatible industrial thin clients. Rockwell ThinManager, the leading thinclient solution for the factory floor, and Advantech’s industrially hardened thin client hardware provide a unique solutions for centralized management of factory floor applications.The SRP-FPV241-AE is the perfect ThinManager MultiMonitor industrial thin client for applications where flexibility and cost savings of 5 monitors per client is desired. The SRP-FPV241-AE also supports the dual video interfaces of 4K resolution such as: DP and HDMI. Its ultra-HD video ports are especially perfect for overview of supervision in control room.

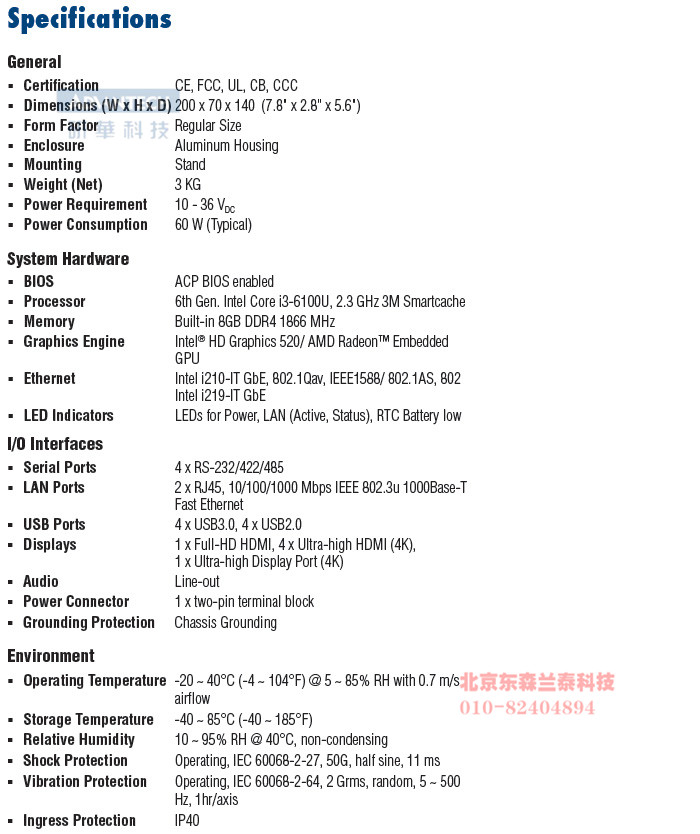

规格


订货信息

Ordering Information
SRP-FPV241-AE 4K Ultra-HD MultiMonitor TM Ready ThinClient,5 x HDMI, 1 x DP, 8 x USB
Monitor Cabling Accessories
*Available in America
XACP-10DP-DPHM-10  DisplayPort to HDMI Cable, 10ft
XACP-10DP-DPDVI-10 DisplayPort to DVI Cable, 10ft
XACP-10HM-15128-03  HDMI to DVI Cable, 10ft
XACP-10DP-DPDP-10  DisplayPort to DisplayPort Cable, 10ft
XACP-10HM-128V4-10  HDMI to HDMI Cable, 10ft
Optional Accessories
96PSA-A150W24T2  Power Adapter 100-240VAC 150W 24VDC
1702002600  Power Cable US Plug 1.8 M (Industrial Grade)
1702002605  Power Cable EU Plug 1.8 M (Industrial Grade)
1702031801  Power Cable UK Plug 1.8 M (Industrial Grade)
1700000596  Power Cable China/Australia Plug 1.8 M (Industrial Grade)

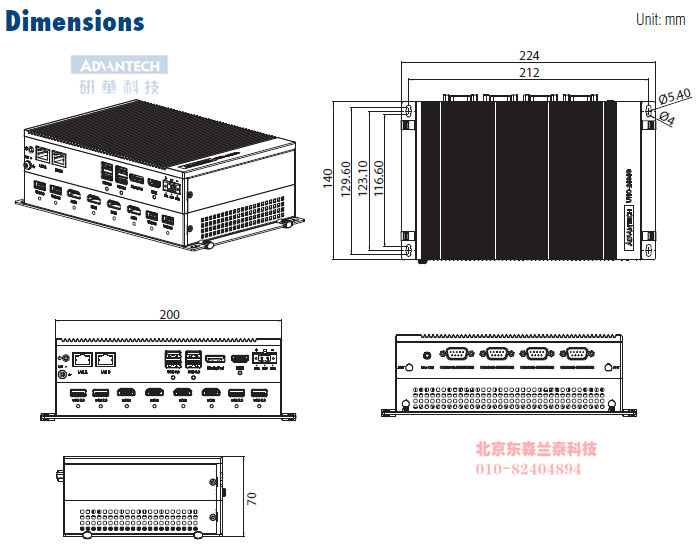

尺寸(单位:mm)

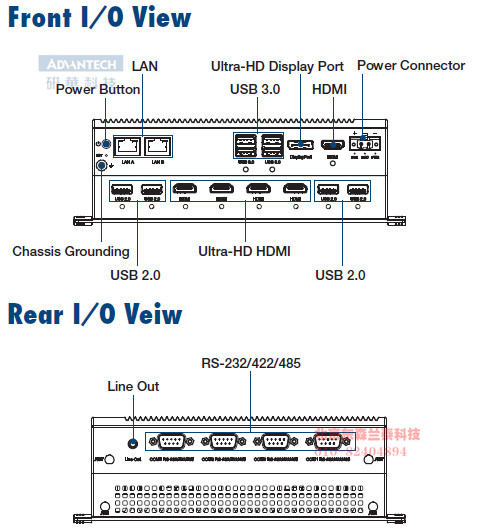

I/O Appearance
