USB 采集控制模块

SRP-M2I240-A



主要特点

Open Control Solution-Ready-Package with PC-Based Cabinet Controller
Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, 1 x Audio, 4 x DI, 4 x DO, 1 x Power Terminal
Supports iDoor technology providing flexible I/O and wireless options
2MB MRAM retained control data value
Microsoft Windows Embedded 7 Pro 32 bit installed
CODESYS Control Runtime and Visualization
Preinstalled CODESYS Control Runtime & Visualization
Supports PLCopen IEC-61131-3 standard programming languages
Supports real-time industrial fieldbus protocols
Supports Web HMI design and visualization for management



产品介绍

SRP-M2i240 is a complete solution-ready-package that includes PC-based cabinet controller with a fanless high-performance Intel Atom processor, DIN rail, 128 GB SSD, 2MB
MRAM, Microsoft Windows Embedded 7 Pro, and CODESYS Control Runtime and Visualizatioin.
Advantech developed its SRP-M2i240 solution to serve as a single integrated interface for conducting real-time machine control. Compliant with the IEC 61161-3 international
standard, SRP-M2i240 supports object-oriented programming (OOP), allowing users to effectively reduce development time. Moreover, by enabling dual fieldbus data acquisition
(PROFINET, EtherCAT, EtherNet/IP, CANopen, and Modbus TCP/RTU), SRP-M2i240 provides a cost-effective tool for control, communication, and HMI functions in vertical industries.
Content of the Open Control Solution-Ready-Package for Industry 4.0
PC-based cabinet controller
iDoor CANopen
128GB SSD and 2MB MRAM
Microsoft Windows Embedded 7 Pro 32 bit
CODESYS Control Runtime with Softmotion + Visu. (Tar. & Web.)

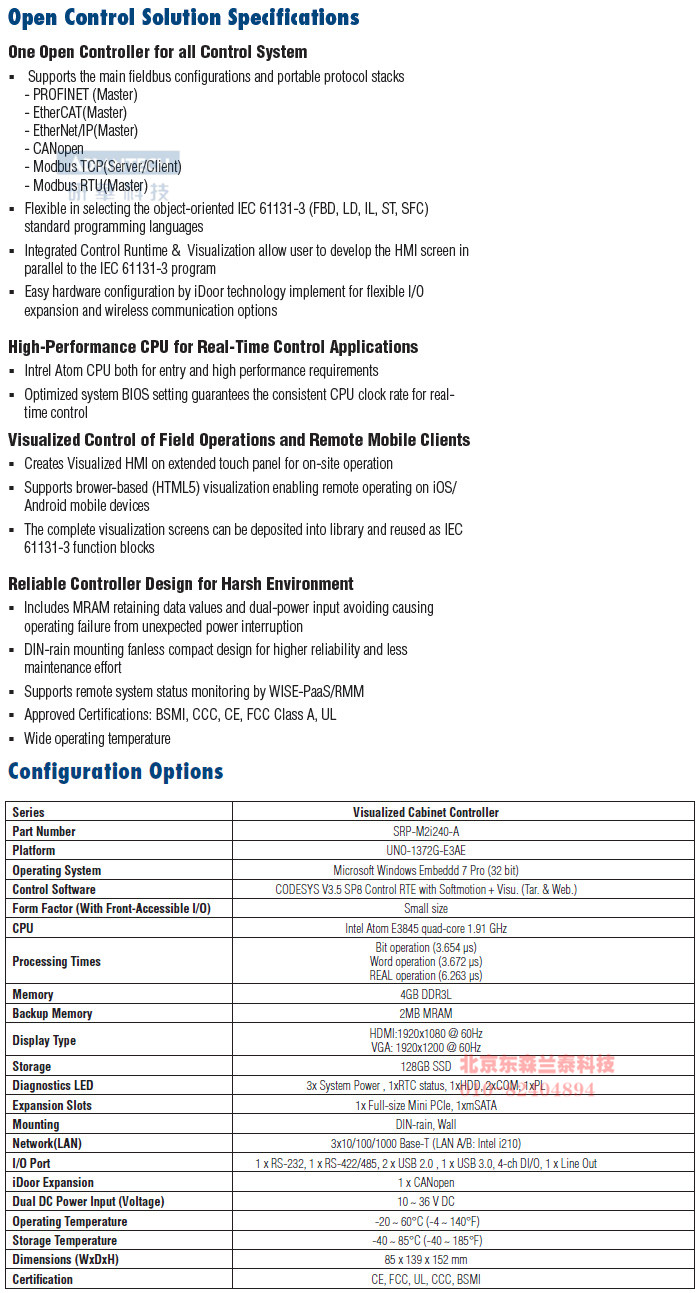

规格


订货信息

Ordering Information
SRP-M2i240-A UNO-1372G-E3AE, RTE with Softmotion & Visua.,4GB RAM, CANopen, 128GB SSD, WES7P
Accessories
1702002600  Power cable (US) 1.8 M
1702002605  Power cable (EU) 1.8 M
1702031801  Power cable (UK) 1.8 M
1700000596-11  Power cable (China/Australia) 1.8 M
PWR-247-CE  ADP A/D 100-240V 60W 24V
