主要特点
15" LCD supports 1024 x 768 pixels and wide operating temperature(-20 ~ 70° C)
Ultra-high brightness of 1200 cd/m2 with LED backlight
High contrast ratio of 700:1
High uniformity of 85%
Superior sunlight readability
LVDS signal interface
Low power consumption 16.06 W
5W resistive touch solution (optional)
Anti-Reflection surface treatment (optional)
Manually VR brightness control (optional)
Auto-dimming solution with light sensor (optional)
Optical bonding (optional)
|
|
产品介绍
The Advantech IDK-2115 series comes with a 15" 1200 cd/m2 industrial grade LCD display, and an LED driver board. The series is also available with flexible options for 5-wire touch screens and enhanced treatment such as anti-reflection surface treatment and optical bonding solution. IDK-2115 series supports 1200 cd/m2 high brightness with low power consumption at the maximum consumption of 16.06 W. Equipped with high level of brightness and wide operating temperature, IDK-2115 provides superior sunlight readability and is perfect for applications whether in semi-outdoor or outdoor environments.
规格
|
|
Model |
IDK-2115 |
IDK-2115 (Wide temp) |
|
|
Size |
15" LED backlight panel |
15" LED backlight panel |
|
|
Resolution |
1024 x 768 (XGA) |
1024 x 768 (XGA) |
|
|
Viewing Angle (U/D/L/R) |
80°/80°/85°/85° |
70°/70°/80°/80° |
|
|
Brightness |
1200 (cd/m2) |
1200 (cd/m2) |
|
|
Contrast Ratio |
700 : 1 |
700 : 1 |
|
|
Response Time (ms) |
8 ms |
25 ms |
|
LCD Panel |
Colors |
6bit (262K)/8bit (16.2M) |
6bit (262K)/8bit (16.2M) |
|
|
Voltage |
3.3 V |
3.3 V |
|
|
Consumption |
16.06 W |
16.06 W |
|
|
Signal Interface |
1 channel LVDS |
1 channel LVDS |
|
|
Weight |
N series: 1350 g |
N series: 1350 g |
|
|
|
R series: 1600 g |
R series: 1600 g |
|
|
Dimensions (W x H x D) |
N series: 326.5 x 253.5 x 12.0 mm |
N series: 326.5 x 253.5 x 11.5 mm |
|
|
|
R series: 326.5 x 253.5 x 14.6 mm |
R series: 326.5 x 253.5 x 14.4 mm |
|
|
Efficiency |
85% |
85% |
|
LED Driver Board |
Output Current & Voltage |
800 mA / 17.7 V (Min) |
800 mA / 18.1 V (Min) |
|
|
Dimensions (W x H x D) |
80 x 50 x 7 mm |
80 x 50 x 7 mm |
|
|
Touch Screen |
5-wire Resistive |
5-wire Resistive |
Touch Screen
(R series) |
Transparency |
80± 3% |
80± 3% |
|
|
Durability |
10 million times |
10 million times |
|
|
Operating Temperature |
0 ~ 65° C |
-20 ~ 70° C |
|
Environment |
Storage Temperature |
-20 ~ 65° C |
-40 ~ 80° C |
|
|
Humidity |
8 ~ 90% @ 39°C., non-condensing |
8 ~ 90% @ 39°C., non-condensing |
订货信息
|
Part No. |
Size |
Brightness (cd/m2) |
|
IDK-2115N-K2XGC1E |
15" |
1200 |
|
IDK-2115R-K2XGC1E |
15" |
1200 |
|
IDK-2115N-K2XGB1E (Wide Temp) |
15" |
1200 |
|
IDK-2115R-K2XGB1E (Wide Temp) |
15" |
1200 |
|
Packing List |
|
|
|
Part Number |
Description |
|
|
9680002141 |
1 x 5-wire USB touch controller (IDK-2115R-K2XGC1E) |
|
1700004131 |
1 x USB cable for Touch controller(IDK-2115R-K2XGC1E) |
|
2068200000 |
1 x CD-ROM for User manual and touch driver(IDK-2115R-K2XGC1E) |
|
ETM-RES04C-EEH4EE |
1 x 5-wire USB touch controller (IDK-2115R-K2XGB1E) |
|
1700020324-01 |
1 x USB cable for Touch controller(IDK-2115R-K2XGB1E) |
|
Note: Package contents are subject to change without prior notice |
|
Optional Order |
|
|
|
SBC Part No. |
LVDS cable P/N |
B/L cable P/N |
|
MIO-5270 |
96CB-L2040PCG4 |
96CB-E0605HAB1 |
|
PCM-9362 |
96CB-L2020POCG2 |
96CB-E0605HAB1 |
|
AIMB-270 |
96CB-L2040PCG4 |
96CB-E0605HAB1 |

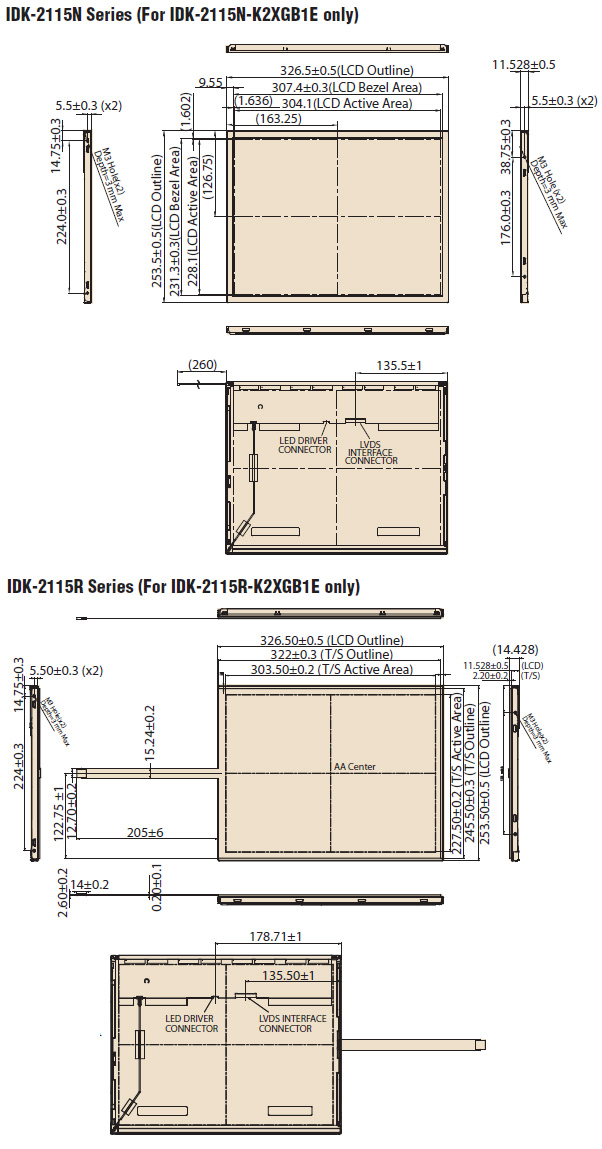

尺寸(单位:mm)
|
