主要特点
15" TFT XGA LCD flat panel with projected capacitive (default) or resistive (optional) touchscreen
Intel® Core™ i5-6300U (default)/i7/i3 (optional) processor with fanless system design
Supports either 1 x PCIe x4 or PCI
1 x M.2 bay (2242) for storage only
1 x isolated RS-422/485 with auto flow
Wide DC input range (9 ~ 32V)
Dual Gigabit Ethernet, IEEE1588 compliant
3 x Independent displays
Supports VESA 75 mounting interface
|
|
产品介绍
The PPC-3151 is a next-generation panel PC featuring a 15" TFT XGA display with 1024 x 768 resolution. Powered by a high-performance Intel® Core™ i5-6300U processor, the system’s high-efficiency fanless thermal design allows heat to dissipate rapidly. By combining high performance with reliability, PPC-3151 provides a superior human-machine interface. Rich I/O including 3 x COM, 4 x USB 3.0, and dual Gigabit Ethernet facilitate device connectivity and system integration. The inclusion of a PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s suitability for diverse applications. Finally, the 5-point multi-touch screen ensures convenient and intuitive operation for the optimal user experience.

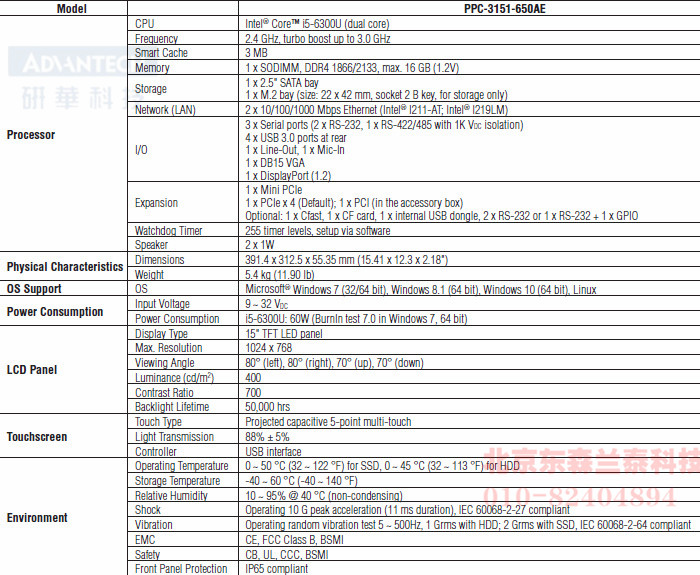

规格
订货信息
|
PPC-3151-650AE |
15" Fanless panel PC with PCT multi-touch, Intel Core i5-6300U processor |
|
96PSA-A90W19OT-1 |
Adapter AC100 ~ 240V, 90W, 19V |
|
1700001524 |
Power cable 3P UL 10A 125V, 180 cm |
|
170203183C |
Power cable 3P Europe (WS-010+083) 183 cm |
|
1700008921 |
Power cable 3P/3P power supply 1.8M PSE |
|
96CB-POWER-B-1.8M |
Power code 3P CCC(China) 1.8M |
|
PPC-174T-WL-MTE |
Wall mount kit for PPC series |
|
PPC-STAND-A1E |
Stand for PPC series |
|
PPC-ARM-A03 |
ARM VESA standard (A-CLEVER) for PPC series |
|
PPC-WLAN-B1E |
Wi-Fi module with antenna and cable (40 cm) for PPC |
|
98R3415010E |
Front-facing USB on cabinet module with cable(100 cm) |
|
98R3612000E |
mSata/CFast to USB card reader |
|
PPC-3150-COME |
Module that supports two additional ports(either two RS-232 or one RS-232 and one GPIO port)for PPC-3150/PPC-3170 |
|
98R3C31500E |
PPC-315/317/319 internal USB dongle kits |
|
98R3C31510E |
PPC-3150/3170 install CF card kits |
|
98R3C31520E |
PPC-3150/PPC-3170 CFast card kits |
|
2070015003 |
WIN10ENT 2016LTSB v6.01 for PPC-3151-650AE |

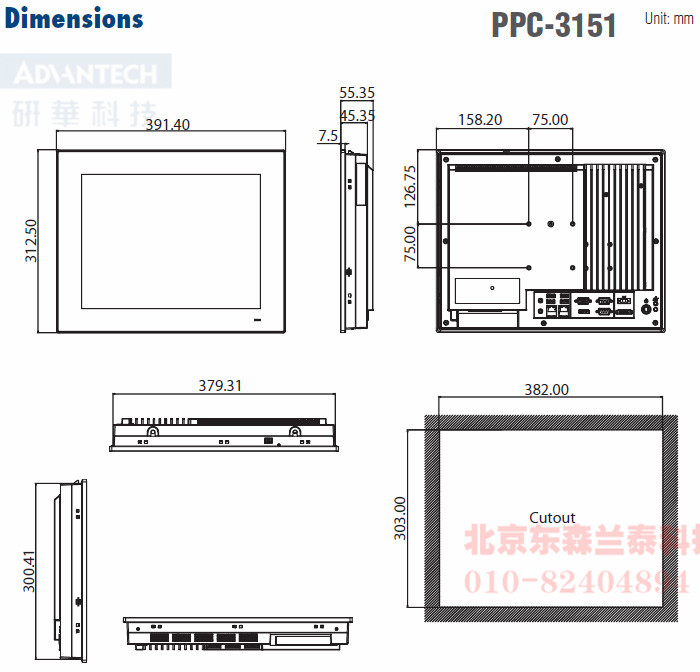

尺寸(单位:mm)

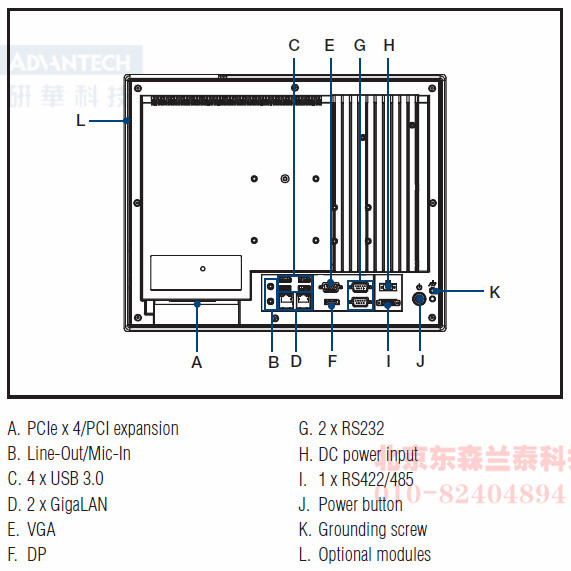

I/O Appearance
|
