工业平板电脑 PPC产品

PPC-3210SW



主要特点

Industrial 21.5" Full HD LED panel with 50k lifetime backlight
Projected capacitive multi touch screen
Embedded Intel® processor, quad core Celeron® N2930 1.83GHz onboard
System memory up to 8 GB DDR3L SDRAM
Compact Fanless Design with solid AI Alloy enclosure
True-flat with IP65 certified front panel protection
E-Eye Monitoring and Protection
Supports Full-size Mini PCIe Expansion
Supports USB 3.0
Supports Windows Embedded and Android
Supports VESA 75



产品介绍

The PPC-3210SW is a high value, ultraslim Panel PC with a 21.5" Full HD LCD; the low power, Intel® Celeron N2930 1.86GHz processor provides high computing performance in a compact, fanless, embedded system. With a high durability design, the PPC-3210SW is equipped with a true-flat touch screen with IP65 front panel protection, die-cast AI alloy enclosure, and Projected capacitive touchscreen. It supports two serial ports, three USB ports, and two GbE LANs to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in the PPC-3210SW rear cover gives clear indication of system operating status, for detection and analysis.

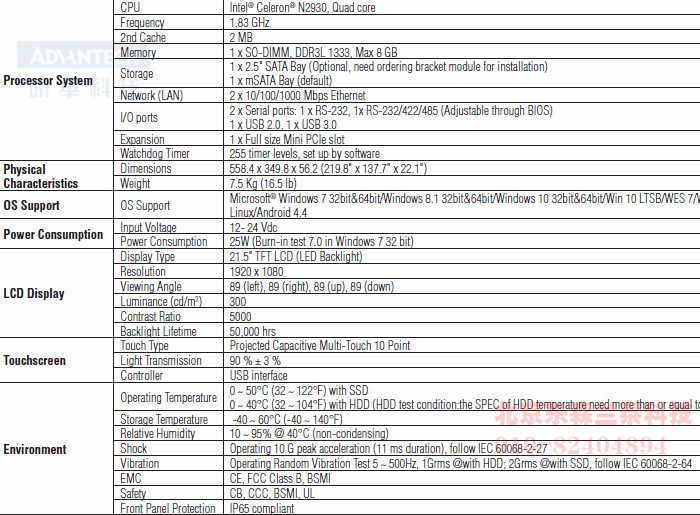

规格


订货信息

PPC-3210SW-PAE  Intel Celeron N2930 Fanless Panel PC with 21.5" Full HD LED backlight
PPC-3100S.html' target='_blank'>PPC-3100S-HDDE  Bracket module for 2.5" SSD/HDD installation
96PSA-A90W19OT-1  ADP A/D 100-240V 90W 19V W/PFC
PPC-WLAN-B1E  Wi-Fi Module with Antenna Cable 40cm for PPC
PPC-ARM-A03  ARM VESA Standard (A-CLEVER) for PPC series
PPC-174T-WL-MTE  Wall mount kit for PPC series
PPC-Stand-A1E  Stand for PPC series
98R3415010E  Front USB on cabinet module with Cable 100cm
1700001524 Power cord 3P UL 10A 125V 1.8M
170203183C  Power cord 3P Europe (WS-010+083) 183cm
1700008921 Power cord 3P/3P 1.8M PSE
96CB-POWER-B-1.8M  Power code 3P CCC(China) 1.8M

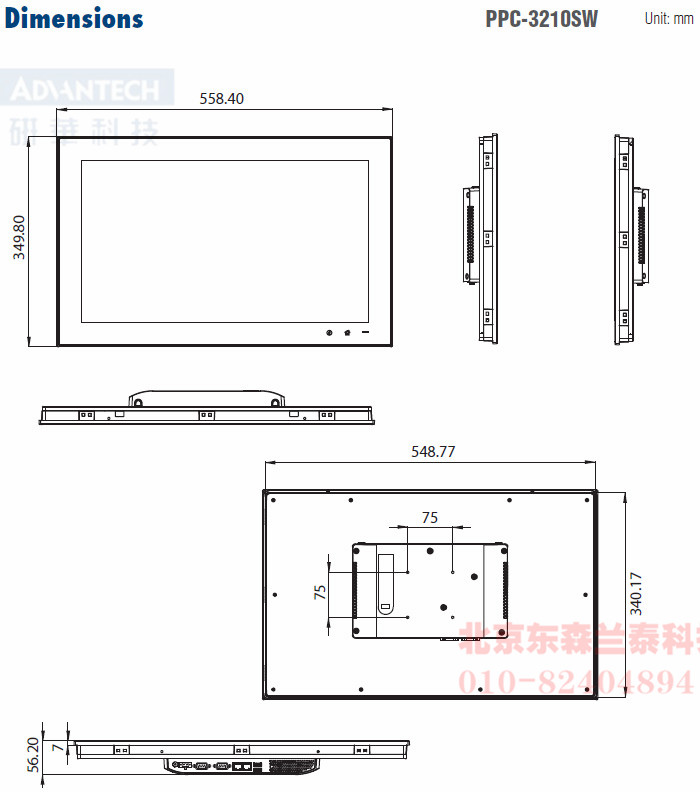

尺寸(单位:mm)

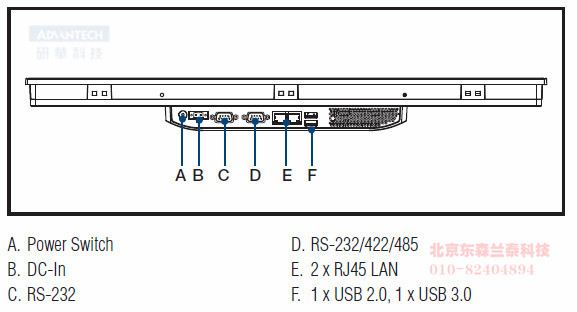

I/O Appearance
