工业平板电脑 PPC产品

PPC31501601E-T



主要特点

15" TFT XGA LED Panel with resistive touchscreen
Embedded Intel ATOM processor, quad core J1900 2.0GHz onboard
System memory up to 8GB DDR3L 1333 SDRAM
Supports one internal SATA 2.5" HDD
Supports one Mini PCIe socket, two Gigabit Ethernet
Fanless and compact size with low power consumpution
Supports four RS-232, two RS-232/422/485, and four RS-232 optional
Supports one mSATA socket



产品介绍

The PPC31501601E-T is a valued and reliable 15" Panel PC. With an onboard Intel Atom processor J1900, it features low power consumption and good performance. The PPC31501601E-T is highly reliable because of its 15" TFT XGA LED panel, 5-wire resistive touch screen and fanless design. It provides ten serial ports, four USB ports, and two GbE LAN to satisfy various industrial applications especially industrial equipment makers and product line monitors. With a compact and slim design, the PPC31501601E-T provides can be easily integrated in industrial systerms.

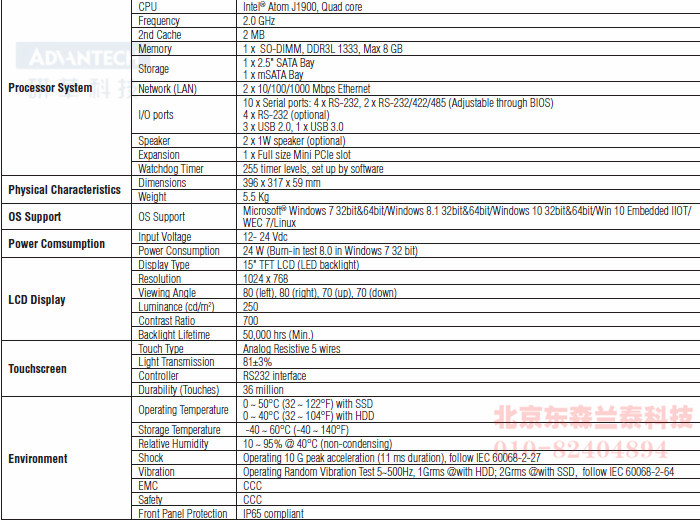

规格


订货信息

PPC31501601E-T  Intel Atom J1900 Fanless Panel PC with 15" XGA LED backlight
PS-DC19-65AE  Adapter AC100-240V 65W 19V 3.42A
PPC-WLAN-A1E  WiFi Module with Antenna Cable 40cm for PPC
1700008921 Power cord 3P/3P Power Supply 1.8M PSE
PPC-174T-WL-MTE  Wall mount kit for PPC series
PPC-STAND-A1E  Stand For PPC Series (single acting hinge)
PPC-ARM-A03  PPC ARM VESA Standard

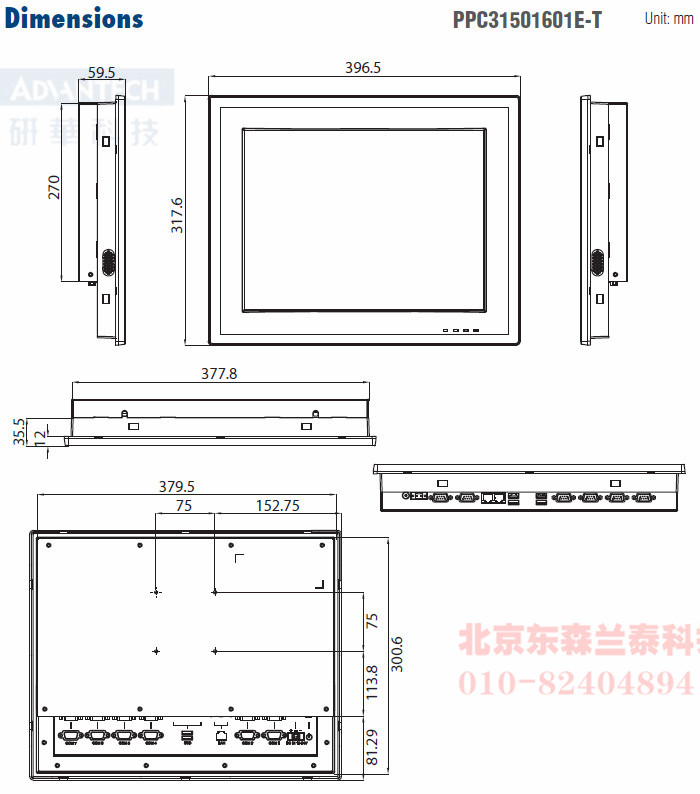

尺寸(单位:mm)




I/O Appearance
