触控式平板电脑 TPC产品

TPC-1051WP



主要特点

Industrial 10.1 TFT LCD with 25K Lifetime LED Backlight
Intel® Atom™ E3827 1.75 GHz Processor with 4GB DDR3L SDRAM
16:9 Wide Screen with PCT Multi-Touch
IP66 Approved Front Protection & Panel Mounting
Built-in Intelligent Home key and i Key for an intuitive user interface
Front LED Indicator to Show Operating Status
Supports iDoor with optional accessory kit
Chassis Grounding Protection
Anti-scratch surface: 7H hardness
AC/DC support (option by Power adapter)
Supports Advantech SNMP Subagent
Supports Advantech SusiAccess Remote Device Management Software

产品介绍

10.1" WXGA TFT LED LCD Intel® Atom™ Thin Client Terminal

The TPC-1051WP is a thin client terminal with a 10.1" WXGA LCD, low power embedded Intel® Atom™ E3827 1.75 GHz Processor and 4GB DDR3L SDRAM provides adequate computing performance in a compact fanless system. The TPC-1051WP is a true-flat touch screen design with IP66 front protection, die-cast Aluminate Alloy front bezel and Projected
capacitive touch. Furthermore, the TPC-1051WP is easy for your to embed into your equipment because of its small yet robust design. In addition, through the Mini-PCIe slot, Advantech iDoor technology (optional) can provide more I/O connectors, Isolated Digital I/O, the Fieldbus Protocol, 3G/GPS/GPRS/Wi-Fi Communication and Battery-backup MRAM to fulfill different kinds of the industrial automation application.

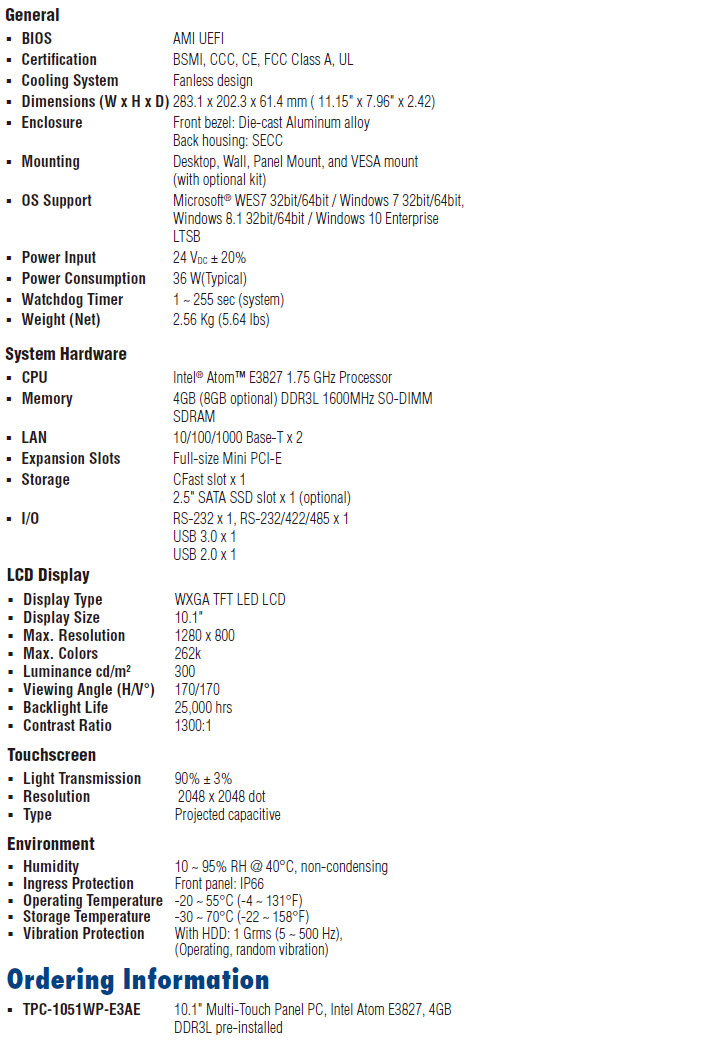

规格


订货信息

料号 说明
TPC-1051WP-E3AE 10.1" Multi-Touch Panel PC, Intel Atom E3827, 4GB DDR3L pre-installed
Optional Accessories
TPC-1000H-ADKE 63W DC 24V/2.62A Power supply & bracket for TPCxx51WP series
TPC-1251T-EHKE HDD/SSD and iDoor extension kit
1702002600 Power Cable US Plug 1.8 M
1702002605 Power Cable EU Plug 1.8 M
1702031801 Power Cable UK Plug 1.8 M
1700000596 Power Cable China/Australia Plug 1.8 M
Embedded O/S
2070013484 TPC-xx51WP WS7P x64 MUI Image v4.13
2070013485 TPC-xx51WP WEC7 X64 MUI Image V4.00
S/W Bundle Offering
WA-HT651T-E15H1AE TPC-651T-6E3AE, HMI Runtime 1500 tags, 32G CFast, WES7P
iDoor Modules(TPC-1251T-EHKE is required for iDoor modules)
PCM-26D2CA-AE SJA1000 CANBus, CANOpen, DB9 x 2
PCM-26D1DB-MAE Hilscher netX100 FieldBus, ProfiBus, DB9 x 1
PCM-27D24DI-AE Digital I/O, 16 DI / 8 DO, Isolation, DB37 x 1
PCM-24D2R4-AE OXPCIe-952 UART, Isolated RS-422/485, DB9 x 2
PCM-24D2R2-AE OXPCIe-952 UART, Isolated RS-232, DB9 x 2
PCM-24R2GL-AE 2 Port Giga LAN Intel i350 PCIe mini card
PCM-24R1TP-AE Intel 82574L, GbE, IEEE 1588 PTP, RJ45 x 1
PCM-24S2WF-AE 802.11 a/b/g/n 2T2R w/ BT4.0, Atheros AR9462
