触控式平板电脑 TPC产品

TPC-1782H



主要特点

Industrial 17" SXGA TFT LCD with 50K Lifetime LED Backlight
Intel 4th Generation Core i3 1.7GHz with 4GB DDR3L SDRAM
Compact Fanless Embedded System with Al Alloy Front Bezel
IP65 Approved Front Protection & Panel Mounting
More Durable 5-wire Resistive Touch Screen
PCIe x1 and Mini PCIe Expansion Support
Diverse system IO and Isolated Digital IO by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
HDMI and Audio Multimedia Support
Support Advantech SUSIAccess Remote Device Management Software

产品介绍

17" SXGA TFT LED LCD with Intel® 4th Generation Core i3 Touch Panel Computer and iDoor technology.

The TPC-1782H touch panel computer with a 17" SXGA LCD, low power embedded Intel 4th Generation Core i3 1.7GHz processor and 4GB DDR3L SDRAM provides the high computing performance in a compact fanless system. To enhance its durability, the TPC-1782H is designed with IP65 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It also includes PCIe slot and Mini-pcie slots to extend the functionality and meet a variety of automation applications needs. Through the Mini-PCIe slot, Advantech iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the intergrated HDMI and Audio port.
The pre-loaded SusiAccess is a smart, unique and ready-to-use remote device management software for you to centralize monitoring and managing of remote embedded devices in real-time. You can focus more on your own applications and let SusiAccess do the rest - configure systems, monitor device health, and recover from any system failures. It’s cloudbased and provides on-demand software services so you can easily download and upgrade applications when you need.

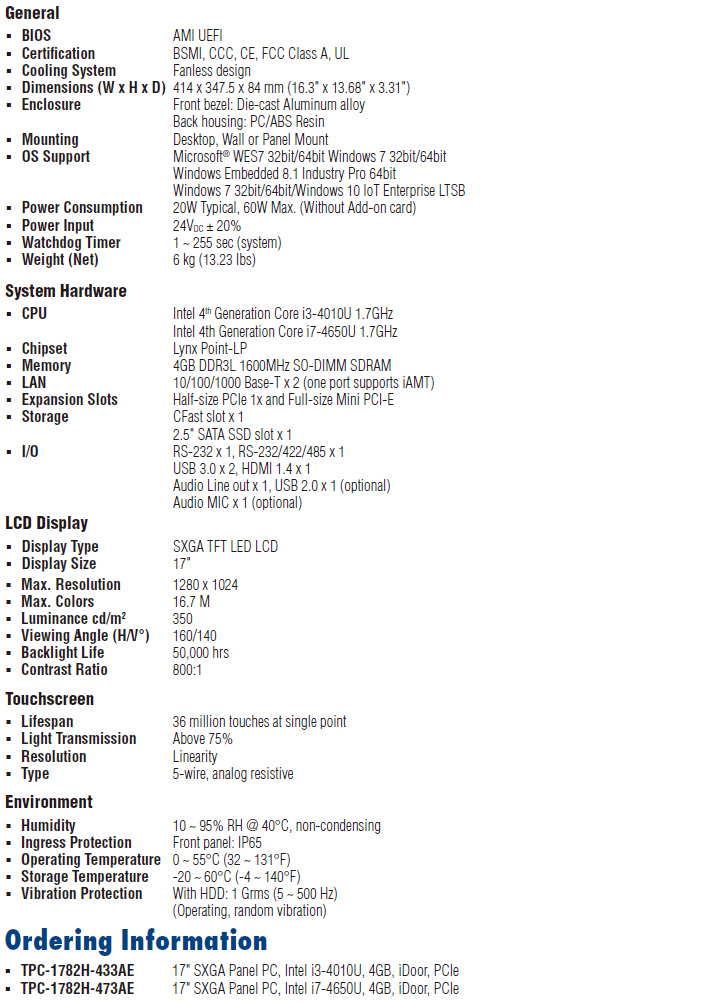

规格


订货信息

料号 说明
TPC-1782H-433AE 17" SXGA Panel PC, Intel i3-4010U, 4GB, iDoor, PCIe
TPC-1782H-473AE 17" SXGA Panel PC, Intel i7-4650U, 4GB, iDoor, PCIe
Optional Accessories
96PSA-A150W24T2 Adapter 100-240V 150W 24V
1702002600 Power Cable US Plug 1.8 M
1702002605 Power Cable EU Plug 1.8 M
1702031801 Power Cable UK Plug 1.8 M
1700000596 Power Cable China/Australia Plug 1.8 M
EWM-W151H01E 802.11bgn RTL8188EE 1T1R, Half-size Mini-PCIe (also need 9656EWMG00E)
9656EWMG00E Half-size miniPCIe to Full-size miniPCIe bracket set
1750000318 EMI Antenna 2DBI 2.4GHz SMA CONN for ARK-3384
1750003222 802.11b/g 5dBi Dipole Antenna
1750003418 Wireless Antenna AN2400-5901RS R/P SMA.M9dB
Embedded O/S
2070013102 TPC-xx82 WS7P x64 MUI Image v4.12 B005
iDoor Modules
PCM-24D2R4-AE 2-Port Isolated RS-422/485 mPCIe, DB9
PCM-27D24DI-AE 24-Channel Isolated Digital I/O w/ counter mPCIe, DB37
PCM-26D2CA-AE 2-Port Isolated CANBus mPCIe, CANOpen, DB9
PCM-24R1TP-AE 1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45
PCM-24S2WF-AE WiFi 802.11 a/b/g/n 2T2R w/ Bluetooth4.0, Half-size mPCIe, 2-port SMA
PCM-26D1DB-MAE 1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9, Master
PCM-26R2PN-MAE 2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45, Master
PCM-26R2EC-MAE 2-Port Hilscher netX100 FieldBus mPCIe, EtherCAT, RJ45, Master
PCM-26R2EI-MAE 2-Port Hilscher netX100 FieldBus mPCIe, EtherNet/IP, RJ45, Master
PCM-26R2S3-MAE 2-Port Hilscher netX100 FieldBus mPCIe, Sercos III, RJ45, Master

北京东森兰泰科技有限公司

电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com

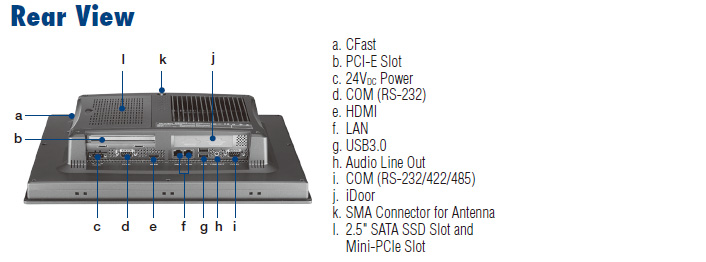

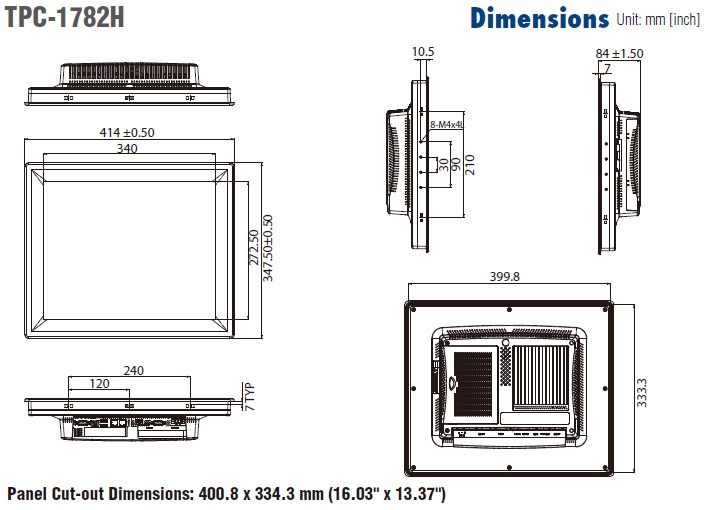

产品图片及框图
